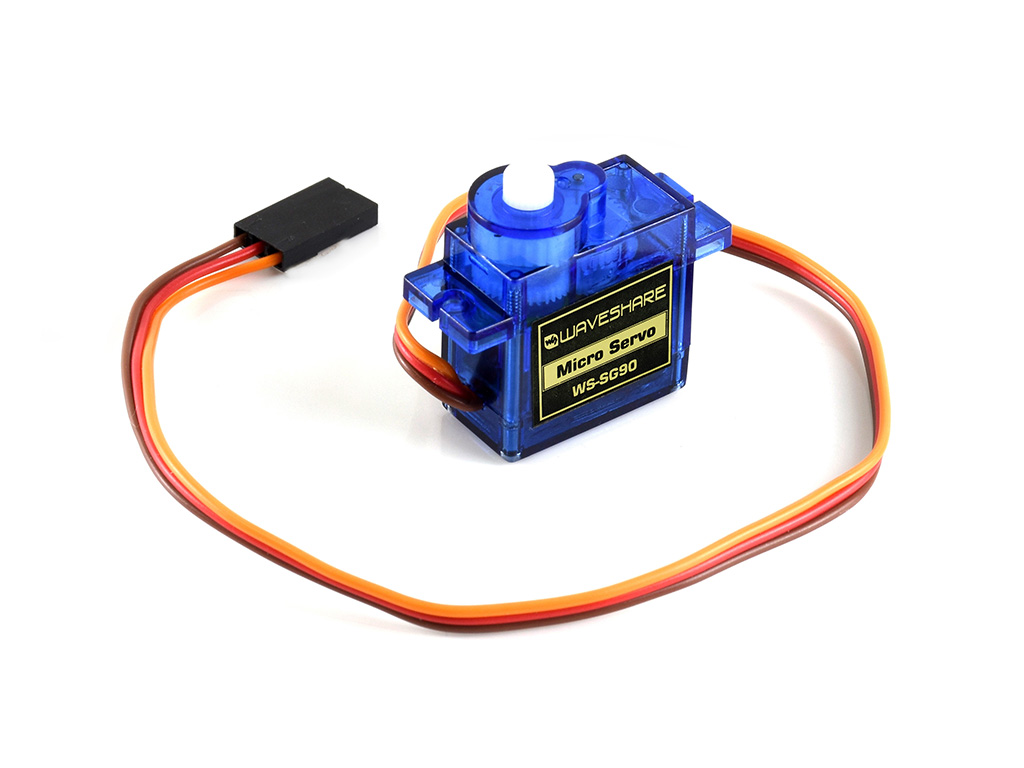

Servo Motor Micro TowerPro SG90 9G (Waveshare)

Servo Motor Micro TowerPro SG90 9G (Waveshare)

The SG90 servo motor from Waveshare is a compact and lightweight servo motor designed for a wide range of robotics and automation applications. The package includes one SG90 servo motor featuring high torque, fast speed, and a plastic gear system for reliable and efficient operation.

Package Includes:

  • 1 x SG90 Servo

Small Servo
19.50 AED 19.50 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



With a torque of 2.0kg/cm (4.8V) or 2.2kg/cm (6V) and a speed of 0.09s/60° (4.8V) or 0.08s/60° (6V), this servo motor delivers precise and accurate motion control. It has a rotation angle of 180° and operates on a voltage range of 4.8 ~ 6V. The SG90 servo motor also has a dead band of 7µs, allowing it to maintain its position even with small system play. Its compact dimensions (22.8mm × 12.2mm × 28.5mm) and lightweight design (10.5g) make it ideal for integration in lightweight robotics and automation systems.



Features:

  • Compact and lightweight design
  • Plastic gear system for reliable and efficient operation
  • High torque: 2.0kg/cm (4.8V) or 2.2kg/cm (6V)
  • Fast speed: 0.09s/60° (4.8V) or 0.08s/60° (6V)
  • Rotation angle: 180°
  • Operating voltage range: 4.8 ~ 6V
  • Dead band of 7µs for position maintenance
  • Ideal for robotics and automation applications

Specifications:

  • Weight: 10.5g (0.013 kg)
  • Torque: 2.0kg/cm (4.8V), 2.2kg/cm (6V)
  • Speed: 0.09s/60° (4.8V), 0.08s/60° (6V)
  • Rotation angle: 180°
  • Operating voltage: 4.8 ~ 6V
  • Gear type: Plastic
  • Dead band: 7µs
  • Dimensions: 22.8mm × 12.2mm × 28.5mm
