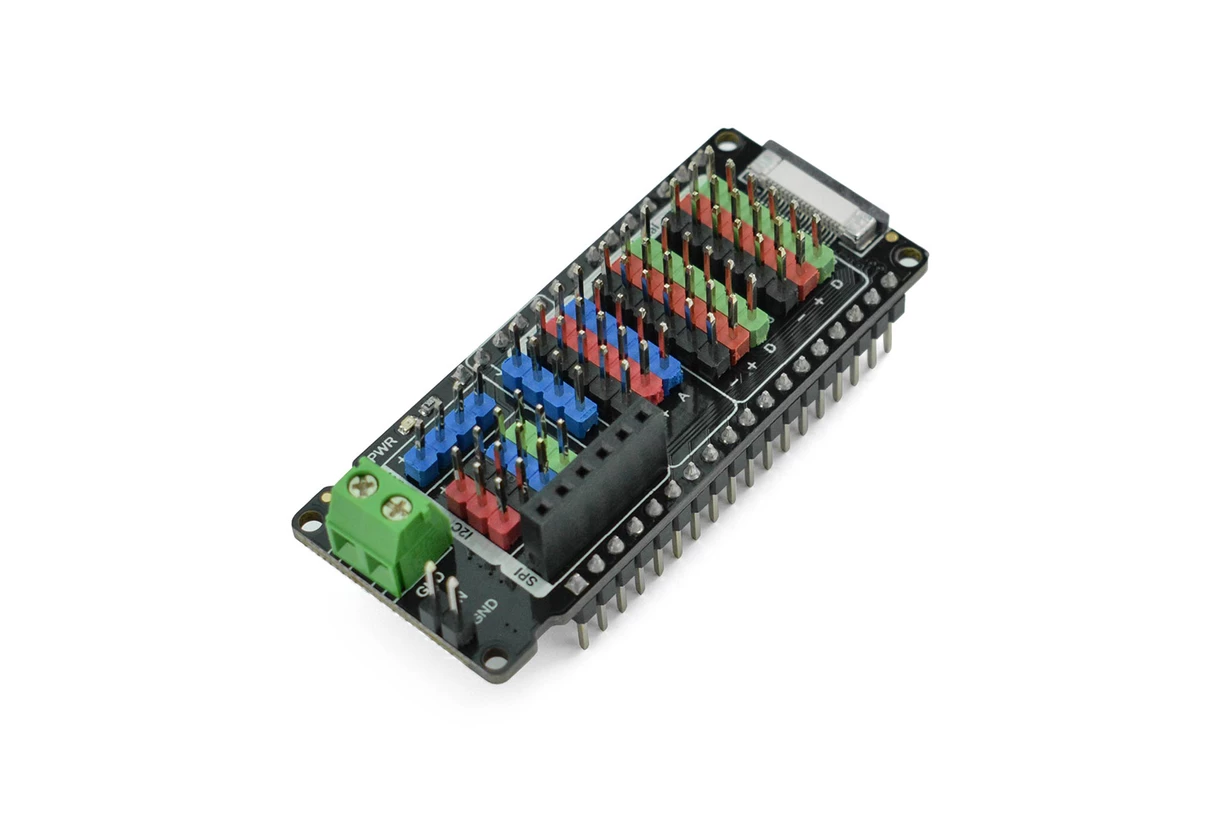

FireBeetle 2 (ESP32-E/M0) IO Shield (Gravity DFRobot) - DFR0762

FireBeetle 2 (ESP32-E/M0) IO Shield (Gravity DFRobot) - DFR0762

Specially designed for the FireBeetle 2 series M0 ESP32-E, this Gravity IO expansion shield offers various ports, including digital, analog, I2C, UART, SPI, and more. It also comes with a power input socket for connecting an external power supply, as well as an EN pin for cutting off the power supply to the main board.

Note: This expansion board is specifically designed for FireBeetle 2 controllers series M0 ESP32-E, and is not suitable for the original FireBeetle Series.

Package Includes:

  • Gravity: IO Shield for FireBeetle M0 and ESP32-E x1

36.00 AED 36.00 AED Tax Included
36.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



The Gravity IO shield allows a convenient connection between DFRobot Gravity sensors and FireBeetle 2 series, with no soldering required.



FEATURES

  • All pins brought out, no soldering required
  • Supports various Gravity Sensors and Modules
  • 3.3~5.5V PH2.0 power port, applicable to portable projects
  • GDI interface for connecting DFRobot GDI series

Gravity: IO Shield for FireBeetle M0 and ESP32-E



SPECIFICATION

  • All pins brought out onto female headers
  • Digital IO x12: GP0-3, GP5-7, GP9-13
  • Analog IO x5: A0-A4
  • UART x1
  • I2C x3 (in parallel)
  • SPI x1
  • PH2.0 Power Port: 3.3V~5.5V
  • Screen: GDI
  • Dimension: 60 x 25.4mm / 2.36 x 1”

APPLICATIONS

  • Allows a convenient connection between DFRobot Gravity sensors and FireBeetle 2 series
