FEATURES
- ESP32 Dual-core low power main controller, 10uA power consumption
- WiFi+Bluetooth 4.0 Dual-mode Module
- GDI Display Port, easy to connect
- Onboard Charging Circuit and PH2.0 lithium Battery Interface
SPECIFICATION
- Operating Voltage: 3.3V
- Input Voltage: 3.3V~5.5V
- Support Low-Power: 2mA
- Max Discharge Current: [email protected] LDO
- Max Charge Current: 500mA
- Support USB Charging
- Processor: Tensilica LX6 dual-core processor (One for high-speed connection; one for independent application development)
- Main Frequency: 240MHz
- SRAM: 520KB
- Flash: 4MB
- Wi-Fi Standard: FCC/CE/TELEC/KCC
- Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n, speed up to 150 Mbps), A-MPDU and A-MSDU Aggregation, support 0.4us guard interval
- Frequency Range: 2.4~2.5 GHz
- Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE standard compliant
- Bluetooth Audio: CVSD and SBC audio
- Operating Current: 80mA（Average）
- Support Arduino download with one-key
- On-chip Clock: 40MHz crystal, 32.768KHz crystal
- Digital I/O x10 (Arduino default)
- Analog Input x5 (Arduino default)
- SPI x1 (Arduino Default)
- IIC x1 (Arduino Default)
- I2S x1 (Arduino Default)
- RGB_LED: 5/D8
- Connector: FireBeetle V2 series compatible
- Operating Temperature: -40℃~+85℃
- Module Size: 25.4 × 60mm / 1 × 2.36”
- Mount Hole Size: inner diameter of 2.0mm
FireBeetle 2 ESP32-E supports Arduino programming and will support Scratch graphical programming and MicroPython programming very soon. We provide you with detailed online tutorials and application cases, and there are thousands of sensors with welding-free Gravity interfaces and actuators to help you get started easily. Besides, the stamp hole design makes it able to be easily embedded in your PCB, greatly saving your costs and time to build and test a prototype.

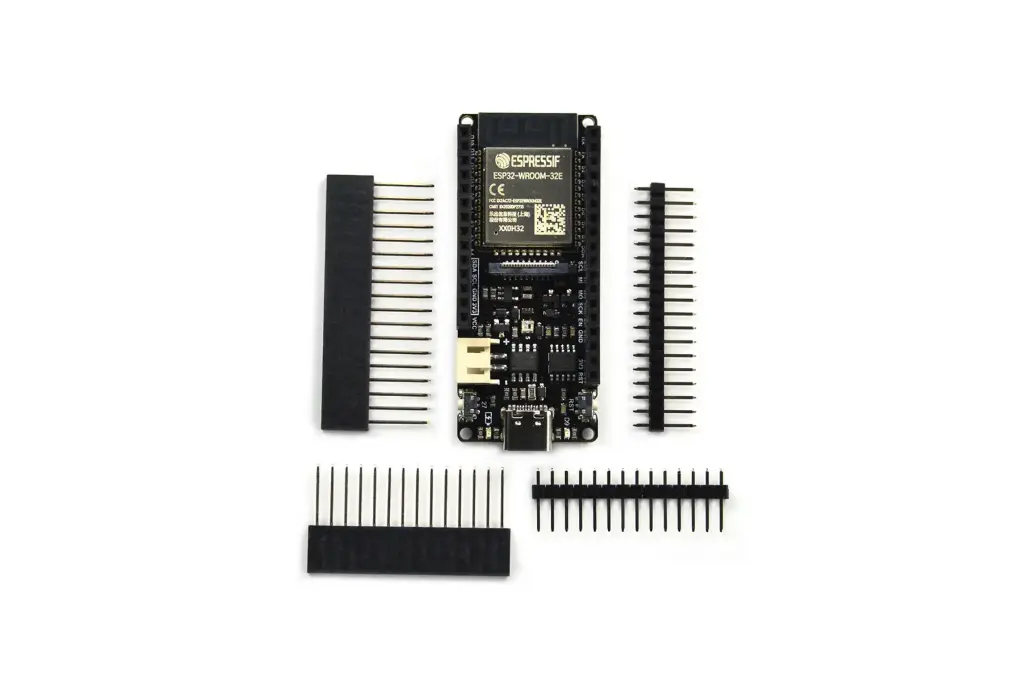

We sell two versions of Firebeetle 2 ESP32-E, unsoldered version and with header version. If you want to plug the Firebeetle shield into your Firebeetle mainboard, the Firebeetle 2 Board ESP32-E(Pre-soldered) is better for you.
Note: FireBeetle 2 and FireBeetle pins and sizes are not compatible, and neither are the expansion boards.
What's the difference between FireBeetle ESP32 and FireBeetle 2 ESP32-E
| Name |
ESP32 IoT Microcontroller |
ESP32-E IoT Microcontroller |
| SKU |
DFR0478 |
DFR0654 |
| Microcontroller |
ECO |
ECO V3 |
| Power supply interface |
Micro USB |
USB-C |
| USB to UART |
CH340C |
CH340K |
| Operating Voltage (V) |
3.3V |
3.3V |
| Flash(KB) |
16MB |
4MB |
| SRAM(KB) |
520k |
520k |
| Analog pins |
5 |
5 |
| Digital pins |
10 |
10 |
| UART |
1 |
1 |
| I2C |
1 |
1 |
| SPI |
1 |
1 |
| Side key |
× |
√ |
| RGB_LED |
× |
√ |
| DisplayPort (GDI) |
× |
√ |
| Stamp holes |
× |
√ |
| Fool-proof |
× |
√ |
| Silkscreen |
Underside |
Two-sided |
| Mount Hole Size (mm) |
3.5 |
2 |
| Dimension(mm) |
29 × 58 |
25.4 × 60 |
| Weight (g) |
24 g |
23 g |
Espressif has recently released a wafer-level change on the ESP32 Series of products (ECO V3). Below are the main design changes in the ECO V3 Series of chips:
- PSRAM Cache Bug Fix: Fixed “When the CPU accesses the external SRAM in a certain sequence, read & write errors can occur”.
- Fixed “When each CPU reads certain different address spaces simultaneously, a read error can occur.”
- Optimized 32.768 KHz crystal oscillator stability. The issue was reported by the client that there is a low probability that under ECO V1 hardware, the 32.768 KHz crystal oscillator couldn’t start properly.
- Fixed Fault injection issues related to secure boot and flash encryption have been resolved.
- Improvement: Changed the minimum baud rate supported by the CAN module from 25 kHz to 12.5 kHz.
