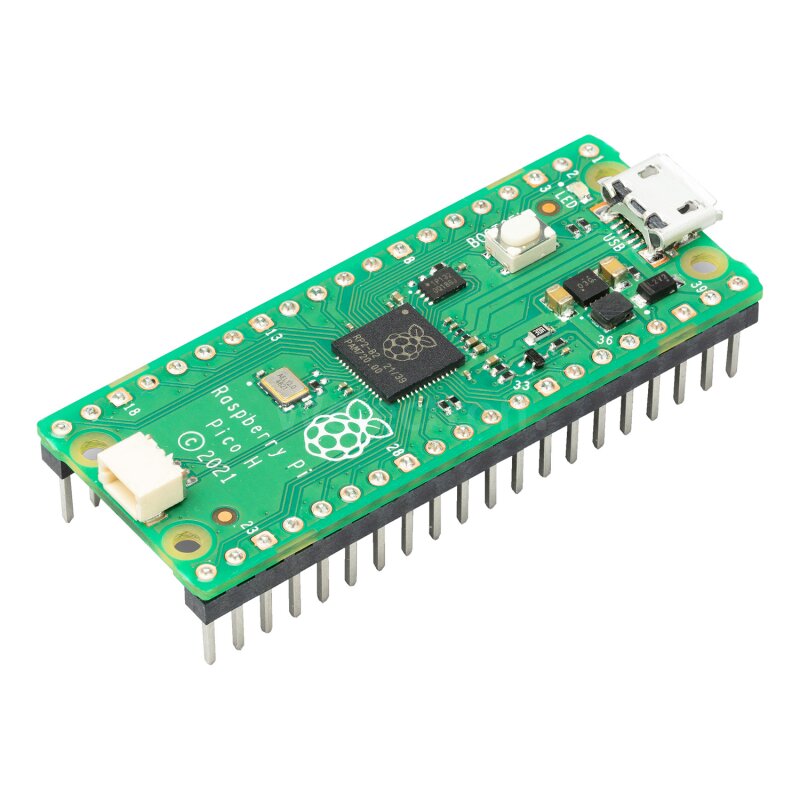

Raspberry Pi Pico H Development Board

The Raspberry Pi Pico H is a variant of the Raspberry Pi Pico microcontroller board developed by the Raspberry Pi Foundation. It features the same RP2040 microcontroller but with a smaller footprint and a surface-mount header instead of through-hole pins, making it suitable for more compact designs. The Pico H is designed to be more robust and durable than the original Pico, offering additional protection against electrostatic discharge (ESD) and overvoltage, which makes it ideal for industrial and commercial applications where reliability and longevity are essential. Like the original Pico, it can be programmed using MicroPython or C/C++ and provides a wide range of I/O pins for connecting sensors, motors, and other electronic components, with communication support via I2C, SPI, and UART.

Package Includes:

  • 1 x Raspberry Pi Pico H Development Board

55.00 AED 55.00 AED Tax Included
55.00 AED Tax Included

Not Available For Sale

This combination does not exist.

RPi Pico

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • RP2040 microcontroller with 2MB Flash
  • Micro-USB B port for power, data, and reprogramming
  • 26 multi-function 3.3V General Purpose I/O (GPIO) pins
  • Surface mountable as a module or expandable with pin headers
  • 3-pin ARM Serial Wire Debug (SWD) port
  • Multiple power options: micro-USB, external supplies, or batteries
  • High quality, low cost, widely available
  • Comprehensive SDK, software examples, and documentation



Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
