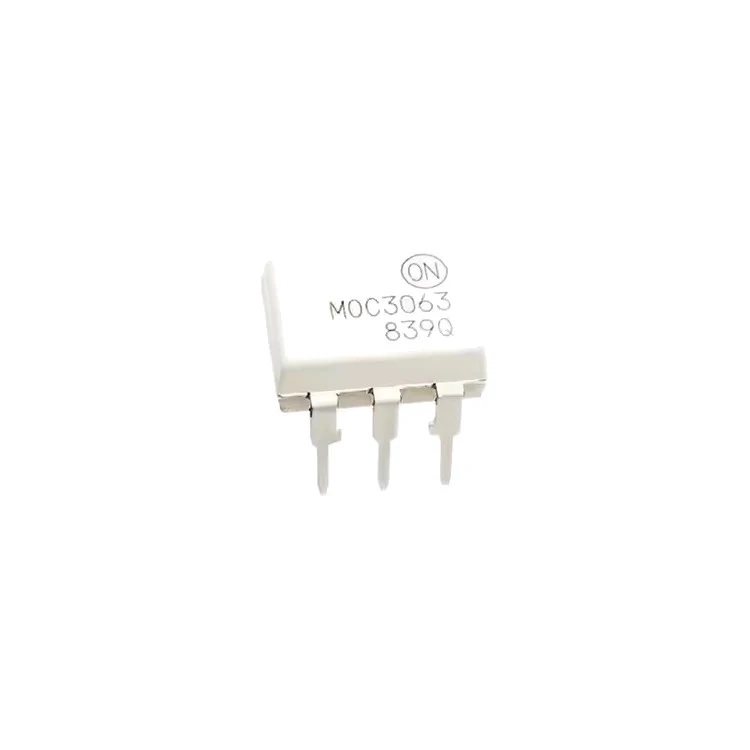

Optocoupler Triac DIP-6 MOC3063

Optocoupler Triac DIP-6 MOC3063

The MOC3063 is an optocoupler that integrates a zero-crossing triac driver, housed in a DIP-6 package with six pins. It is designed for applications requiring electrical isolation between two circuits, such as motor control, lighting control, and power supply systems. The device works by using an internal LED to transmit an electrical signal across a small gap to a photothyristor, which amplifies and switches the signal to the output.

Package Includes:

  • 1 x MOC3063 IC

5.00 AED 5.00 AED Tax Included
5.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Package Type: DIP-6
  • Package Dimensions: 9.91mm x 6.35mm x 3.43mm (L x W x H)
  • Isolation Voltage: 400V
  • Peak Repetitive Off-State Voltage: 600V
  • Load Current: 1A
  • Operating Temperature Range: -40°C to +100°C
  • Zero-Crossing Triac Driver
  • Internal Snubber Circuit
  • LED Trigger Current: 5mA
  • Input Voltage: 1.15V (max)
  • Output Voltage: 5V (max)
  • Propagation Delay: 1μs (typ)
  • Rise Time: 2μs (typ)
  • Fall Time: 2μs (typ)
  • Total Device Power Dissipation: 150mW (max)
