Operational Amplifier Op Amp DIP LM741 UA741 IC

Operational Amplifier Op Amp DIP LM741 UA741 IC

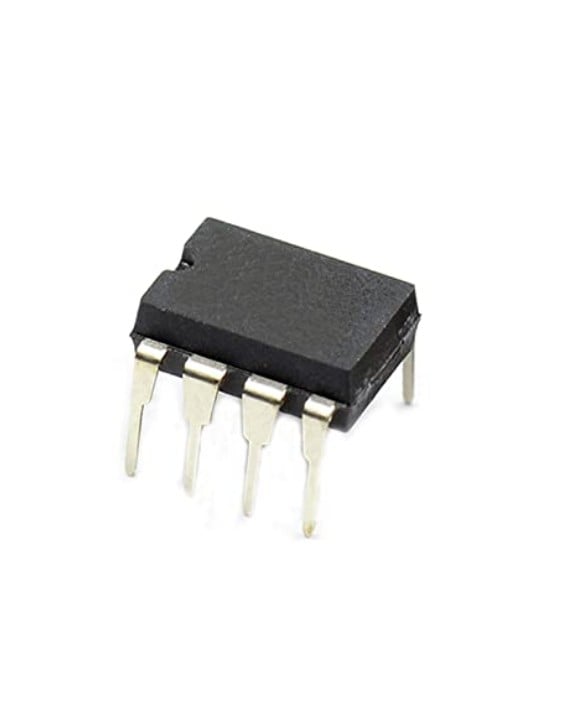

The LM741 or the compatible UA741 IC is a popular operational amplifier (op-amp) integrated circuit widely used in electronic circuits. It comes in an 8-pin DIP (Dual Inline Package) format and has been in use since its introduction in 1968 by Texas Instruments.

Package Includes:

  • 1 x LM741 IC or UA741 (based on stock availability).
    If you need a specific one, please contact us via WhatsApp.

5.25 AED 5.25 AED Tax Included
5.25 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Gain Bandwidth Product (GBW): 1MHz
  • Slew Rate: 0.5V/μs
  • Input Offset Voltage: 2–6mV
  • Input Bias Current: 20–80nA
  • Supply Voltage Range: ±3V to ±22V
  • Output Voltage Swing: ±13V
  • Open-Loop Gain: 200,000
  • Input Resistance: 2MΩ
  • Output Resistance: 75Ω

Features:

  • High Gain: Open-loop voltage gain of 200,000, suitable for high-gain amplification applications.
  • Low Input Offset Voltage: Ensures output voltage closely matches input when no signal is applied, improving accuracy.
  • Wide Supply Voltage Range: Operates from ±3V to ±22V, offering flexibility across many circuits.
  • Low Input Bias Current: Draws minimal current from the input signal, ideal for low-power applications.
  • Short-Circuit Protection: Built-in protection safeguards the amplifier from damage in case of a short circuit.
