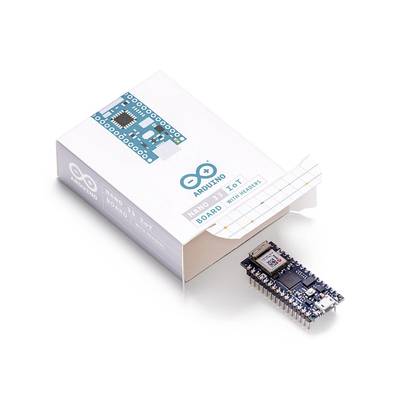

Arduino Nano 33 IoT With headers

Arduino Nano 33 IoT With headers

The Arduino Nano 33 IoT allows you to build your next smart project with ease. Ideal for creating an automated house, smart garden, or any IoT application, this board is compatible with the Arduino IoT Cloud, enabling remote control and data visualization from anywhere in the world.

140.00 AED 140.00 AED Tax Included
140.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Arduino Nano Board
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Perfect for beginners and pros alike.
  • Enables smart enhancements to existing devices.
  • Ideal for sensor networks and Bluetooth® Low Energy applications.

Core Components

  • Main Processor: 32-bit Arm® Cortex®-M0 SAMD21 (low-power)
  • Wireless Module: u-blox NINA-W10 (WiFi & Bluetooth®)
  • Security: Microchip® ECC608 crypto chip
  • IMU: Built-in 6-axis motion sensor

WiFi & Arduino IoT Cloud

Connecting to a WiFi network is as easy as blinking an LED. The Nano 33 IoT can connect to existing networks or create an access point. It supports a variety of cloud services, including Arduino IoT Cloud.

Bluetooth® and BLE

The board can function as both Bluetooth® and Bluetooth® Low Energy client or host. Easily create central or peripheral Bluetooth® devices with ArduinoBLE examples.

Open for Hacking

Dual-processor design enables advanced experimentation. You can utilize both WiFi and Bluetooth® simultaneously or run lightweight Linux on the NINA-W10 module. Note: This kind of hacking may void WiFiNINA module certification.

Getting Started

Visit the Getting Started section on Arduino’s website for setup instructions, IDE guidance, and beginner-friendly tutorials.

Need Help?

Join the Arduino Forum to ask questions about code, hardware, and projects.

Tech Specs

Feature Details
Microcontroller SAMD21 Cortex®-M0+ 32-bit ARM MCU
Radio Module u-blox NINA-W102
Secure Element ATECC608A
Operating Voltage 3.3V
Input Voltage (limit) 21V
DC Current per I/O Pin 7 mA
Clock Speed 48 MHz
CPU Flash Memory 256 KB
SRAM 32 KB
EEPROM None
Digital I/O Pins 14
PWM Pins 11 (2, 3, 5, 6, 9, 10, 11, 12, 16/A2, 17/A3, 19/A5)
UART 1
SPI 1
I2C 1
Analog Input Pins 8 (ADC 8/10/12 bit)
Analog Output Pins 1 (DAC 10 bit)
External Interrupts All digital pins (analog pins can be used too, with duplicated interrupt numbers)
LED_BUILTIN 13
USB Native in SAMD21
IMU LSM6DS3
Length 45 mm
Width 18 mm
Weight 5 g (with headers)





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
