Wireless LoRa T-Impulse Wristband (Lilygo)

Wireless LoRa T-Impulse Wristband (Lilygo)

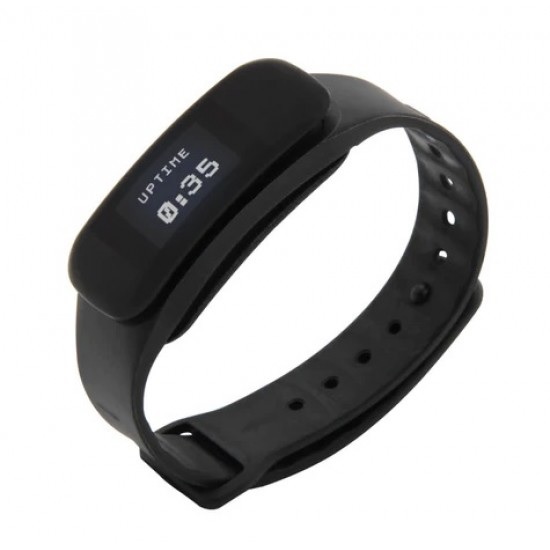

The LILYGO® T-Impulse LoRa Wristband S78G is an advanced and feature-rich wearable device that combines various cutting-edge technologies to offer a wide range of functionalities. With its powerful MCU, LoRa transceiver, GNSS module, and other onboard components, this wristband is designed to provide a seamless and efficient user experience.

Package Includes:

  • 1 × The LILYGO® T-Impulse LoRa Wristband S78G
  • 1 × USB Cable

380.95 AED 380.95 AED Tax Included
380.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Lora 433MHZ
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features and Specifications:

  • MCU: Driven by the STM32L073Z microcontroller unit (MCU), integrating LORA and GNSS modules. Low power consumption and high performance ensure optimal efficiency.
  • Host Interfaces: UART interface for seamless communication with other devices or systems.
  • Memory Capacity: 192kb Flash memory and 20kb SRAM for program storage and data processing.
  • LORA Frequency Band: Supports 433MHz, 868MHz, and 915MHz for long-range wireless communication.
  • GNSS Frequency Band: Supports GPS, GLONASS, and BEIDOU for accurate positioning and navigation.
  • Onboard Functions: Battery power detection and comfortable silicone strap for extended wear.
  • SX1278 Low-Power LORA Transceiver: High sensitivity up to -137 dBm, programmable bit rate up to 37,500 bps, ensuring reliable long-range communication.
  • CXD5603GF Ultra-Low Power GNSS Module: Energy-efficient, supports SBAS and QZSS protocols for accurate positioning.
  • Touch Button: TTP223 touch button for user-friendly interaction and navigation.
  • Display Type: OLED display with SSD1306 controller for crisp visuals, high contrast, and power efficiency.
  • Battery Capacity: 200mAh battery providing extended usage and reliable operation throughout the day.
