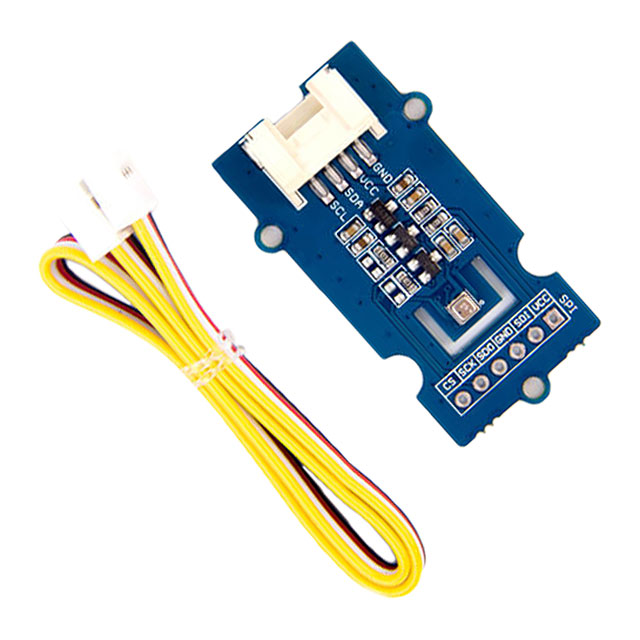

It can be connected to a microcontroller with I2C (integrated with Grove socket) or through an SPI bus. We have also provided a highly abstract library to make this product easier to use. The BME280 is an upgraded version of BMP180, and BME280 gets dramatic improvements from BMP180. BME280 comes with a smaller footprint, lower power consumption, lower noise measurements, higher resolutions for pressure and temperature, lower RMS noise, a newly added SPI bus, more measuring modes, a higher measuring rate, and a newly added filter against environmental interference. Since the atmosphere pressure reading is affected by altitude and temperature, we have added compensation features. Hence, Grove - Temp&Humi; Barometer Sensor (BME280) will be more reliable in providing precise temperature, atmospheric pressure values, humidity, and approximate altitude data.
Specifications:
| Dimensions |
40 (length) × 20 (width) mm |
| Weight |
3.2 g (for breakout board), 9.3 g for whole package each piece |
| Battery |
Exclude |
| Input voltage |
3.3V or 5V |
| I/O voltage |
3.3V or 5V |
| Operating current |
0.4mA |
| Atmospheric pressure sensor measurement range |
300 - 1100 hPa (1 hPa = one hundred Pa) with ±1.0 hPa accuracy |
| Temperature sensor measurement range |
-40 - 85 ℃, with ±1.0°C accuracy |
| Humidity sensor measurement range |
0% - 100% relative humidity, with ±3% accuracy |
| Measurement modes |
Piezo & Temperature, forced or periodic |
| Chip |
BME280 |
| Interface Bus |
SPI, I2C (use either one of them) |
| I2C |
0x76 (default) or 0x77 |
It can be connected to a microcontroller with I2C (integrated with Grove socket) or through an SPI bus. We have also provided a highly abstract library to make this product easier to use. The BME280 is an upgraded version of BMP180, and BME280 gets dramatic improvements from BMP180. BME280 comes with a smaller footprint, lower power consumption, lower noise measurements, higher resolutions for pressure and temperature, lower RMS noise, a newly added SPI bus, more measuring modes, a higher measuring rate, and a newly added filter against environmental interference. Since the atmosphere pressure reading is affected by altitude and temperature, we have added compensation features. Hence, Grove - Temp&Humi; Barometer Sensor (BME280) will be more reliable in providing precise temperature, atmospheric pressure values, humidity, and approximate altitude data.
Specifications:
| Dimensions |
40 (length) × 20 (width) mm |
| Weight |
3.2 g (for breakout board), 9.3 g for whole package each piece |
| Battery |
Exclude |
| Input voltage |
3.3V or 5V |
| I/O voltage |
3.3V or 5V |
| Operating current |
0.4mA |
| Atmospheric pressure sensor measurement range |
300 - 1100 hPa (1 hPa = one hundred Pa) with ±1.0 hPa accuracy |
| Temperature sensor measurement range |
-40 - 85 ℃, with ±1.0°C accuracy |
| Humidity sensor measurement range |
0% - 100% relative humidity, with ±3% accuracy |
| Measurement modes |
Piezo & Temperature, forced or periodic |
| Chip |
BME280 |
| Interface Bus |
SPI, I2C (use either one of them) |
| I2C |
0x76 (default) or 0x77 |
