Accelerometer 3-Axis LIS3DHTR(ST) Sensor Module (Grove Seeed)

Accelerometer 3-Axis LIS3DHTR(ST) Sensor Module (Grove Seeed)

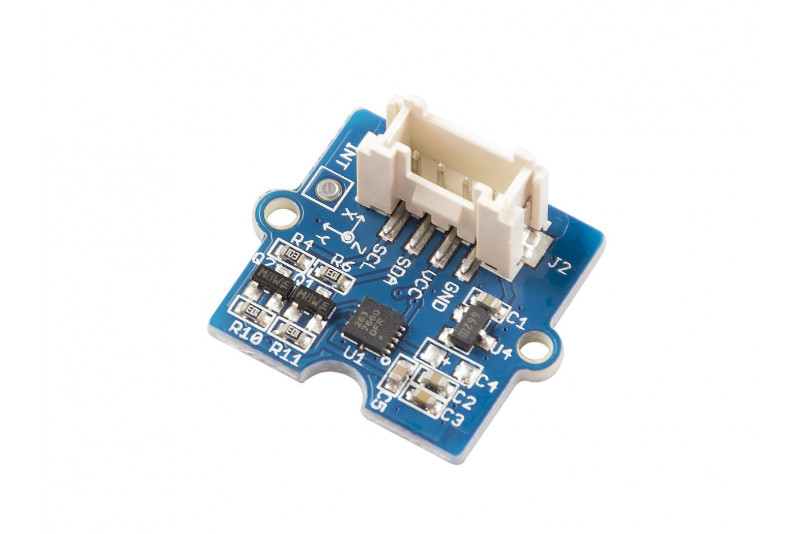

The Grove - 3-Axis Digital Accelerometer (LIS3DHTR) stands out as an affordable and compact 3-axis accelerometer within the Grove product lineup. Utilizing the LIS3DHTR chip, this accelerometer offers a multitude of ranges and interface options. Remarkably, it supports I2C, SPI, and ADC GPIO interfaces, providing flexibility for seamless integration with various development boards. Additionally, it includes temperature monitoring capabilities to fine-tune accuracy adjustments influenced by environmental temperature changes.

Package Includes:

  • 1 x Grove - 3-Axis Digital Accelerometer (LIS3DHTR)
  • 1 x Grove cable

49.00 AED 49.00 AED Tax Included
49.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Measurement Range: ±2g, ±4g, ±8g, ±16g, with multiple range selections.
  • Interface Options: Grove I2C interface, SPI interface, ADC interface.
  • Temperature Adjustable: Enables adjustment and tuning of errors caused by temperature fluctuations.
  • Power Supply: Compatible with both 3V and 5V power sources.

Specifications:

Function Description
Power Supply 3/5V
Interfaces I2C/SPI/GPIO ADC
I2C address Default 0x19, can be changed to 0x18 when connecting SDO Pin with GND
ADC GPIO Power input 0-3.3V
Interruption An interruption Pin reserved
SPI Mode set up Connect the CS Pin with GND

Applications:

  • Free-fall detection
  • Motion detection
  • Intelligent power saving for handheld devices (e.g., Pedometers)
  • Gaming and virtual reality input devices
  • Vibration monitoring and compensation
  • Impact recognition and logging

Resources:

  • PDF LIS3DHTR_DATASHEET
  • PDF Hardware schematic
  • ZIP Grove - 3-Axis Digital Accelerometer (LIS3DHTR) Library
