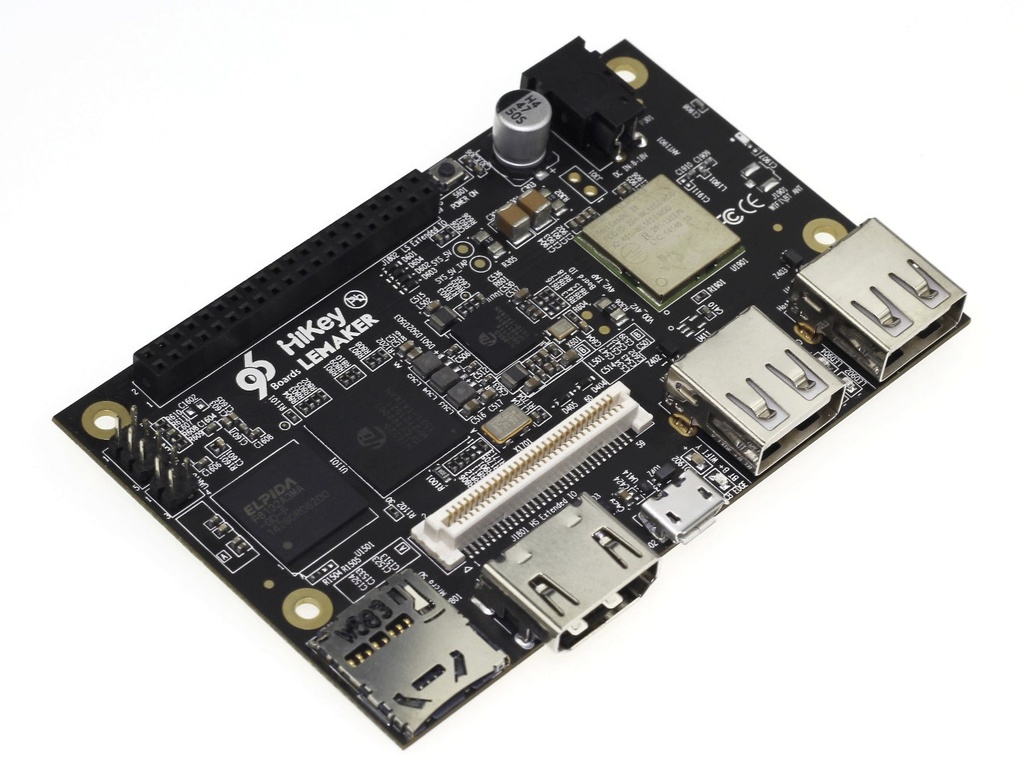

HiKey Lemaker version (2GB) Development Board

HiKey Lemaker version (2GB) Development Board

The HiKey Lemaker version (2GB) is a capable single-board computer that combines powerful performance, compact design, and versatile connectivity. Powered by the HiSilicon Kirin 620 SoC, this board delivers outstanding computing capabilities for various applications. Featuring an ARM Cortex-A53 Octa-core 64-bit processor running up to 1.2GHz and using the ARM v8 instruction set, it ensures compatibility with modern software. The ARM Mali 450-MP4 GPU provides smooth 3D graphics performance, supporting OpenGL ES 1.1/2.0 and OpenVG 1.1 standards.

Package Includes

  • HiKey Lemaker version (2GB) Development Board

299.00 AED 299.00 AED Tax Included
299.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • SoC: HiSilicon Kirin 620 with ARM Cortex-A53 octa-core 64-bit processor, up to 1.2GHz, ARM v8 instruction set.
  • GPU: ARM Mali 450-MP4, 500MHz, supports OpenGL ES 1.1/2.0 and OpenVG 1.1 for powerful 3D graphics.
  • RAM: 2GB LPDDR3 SDRAM at 800MHz for efficient multitasking.
  • PMU: HI6553V100 Power Management Unit for optimized power consumption.
  • Storage: 8GB eMMC onboard, MicroSD card slot for expansion.
  • Ethernet: USB 2.0 expansion for external Ethernet connectivity.
  • Wireless: Wi-Fi 802.11 b/g/n (2.4GHz) and dual-mode Bluetooth (including BLE).
  • USB Ports: Two USB 2.0 host ports and one USB 2.0 OTG port.
  • Display: Full-sized HDMI 1.4 (Type A) up to 1080P and MIPI-DSI connector.
  • Video/Audio: 1080p@30fps encoding/decoding, supports multiple codecs (H.264, MPEG1/2/4, VP8, etc.), audio via HDMI.
  • Camera: 4-lane and 2-lane MIPI CSI interfaces for camera modules.
  • Expansion: 40-pin low-speed and 60-pin high-speed connectors (UART, I2C, SPI, PCM, PWM, GPIO).
  • LEDs/Buttons: WiFi LED (yellow), Bluetooth LED (blue), four user LEDs (green), power/reset button.
