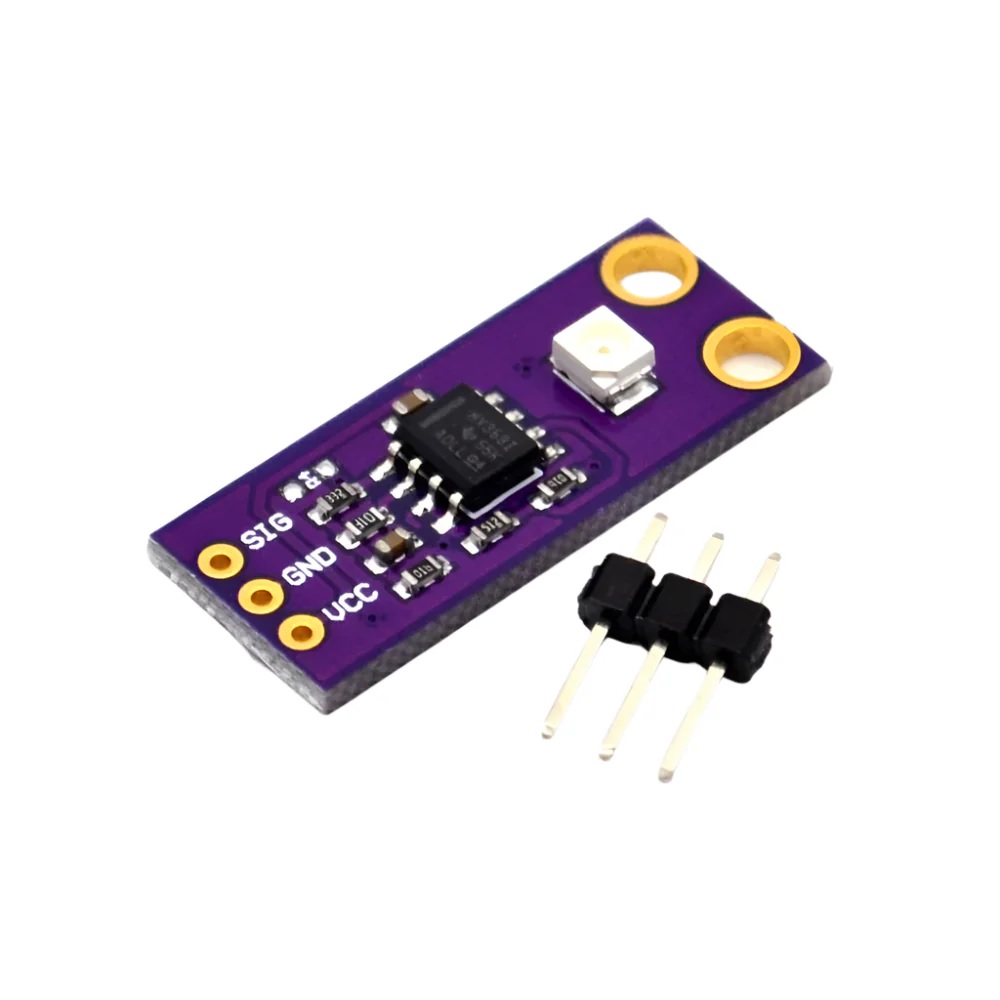

Light UV Ultraviolet Ray Detection Sensor CJMCU-GUVA-S12SD

Light UV Ultraviolet Ray Detection Sensor CJMCU-GUVA-S12SD

The Sunlight UV Intensity Sensor is designed for detecting UV index in smart wearable devices like watches and smartphones, as well as outdoor UV index monitoring equipment. It can also monitor ultraviolet intensity and detect UV flames. Compatible with various single-chip control boards such as the Arduino series, it provides versatile integration options.

Package Includes

  • 1 × Sunlight UV Intensity Sensor

29.50 AED 29.50 AED Tax Included
29.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Suitable for UV index detection in smart wearables and outdoor equipment
  • Compatible with Arduino and other single-chip control boards
  • Monitors ultraviolet intensity and detects UV flames
  • Analog signal output for easy interfacing
  • Compact and lightweight design for seamless integration
  • Wide spectrum detection range from 240nm to 370nm

Specifications

  • Working Voltage: 3.3-5V DC
  • Interface: 3PIN interface
  • Input Signal: Analog signal
  • Spectrum Detection Range: 240-370nm
  • Active Area: 0.076mm²
  • Responsivity: 0.14A/W
  • Dark Current: 1nA
  • Photocurrent: 101~125nA under UVA lamp, 1mW/cm²
  • Weight: 2.5g
  • Positioning Hole Size: 3mm diameter

Applications

  • Smart Wearables: Integrates into smartwatches and smartphones with UV detection functions for real-time UV exposure information.
  • Outdoor UV Index Detection: Monitors UV levels in outdoor equipment for informed sun exposure decisions.
  • Ultraviolet Monitoring: Used in environmental monitoring systems and other applications requiring UV level measurement.
  • UV Flame Detection: Detects UV flames, suitable for fire detection and safety systems.
