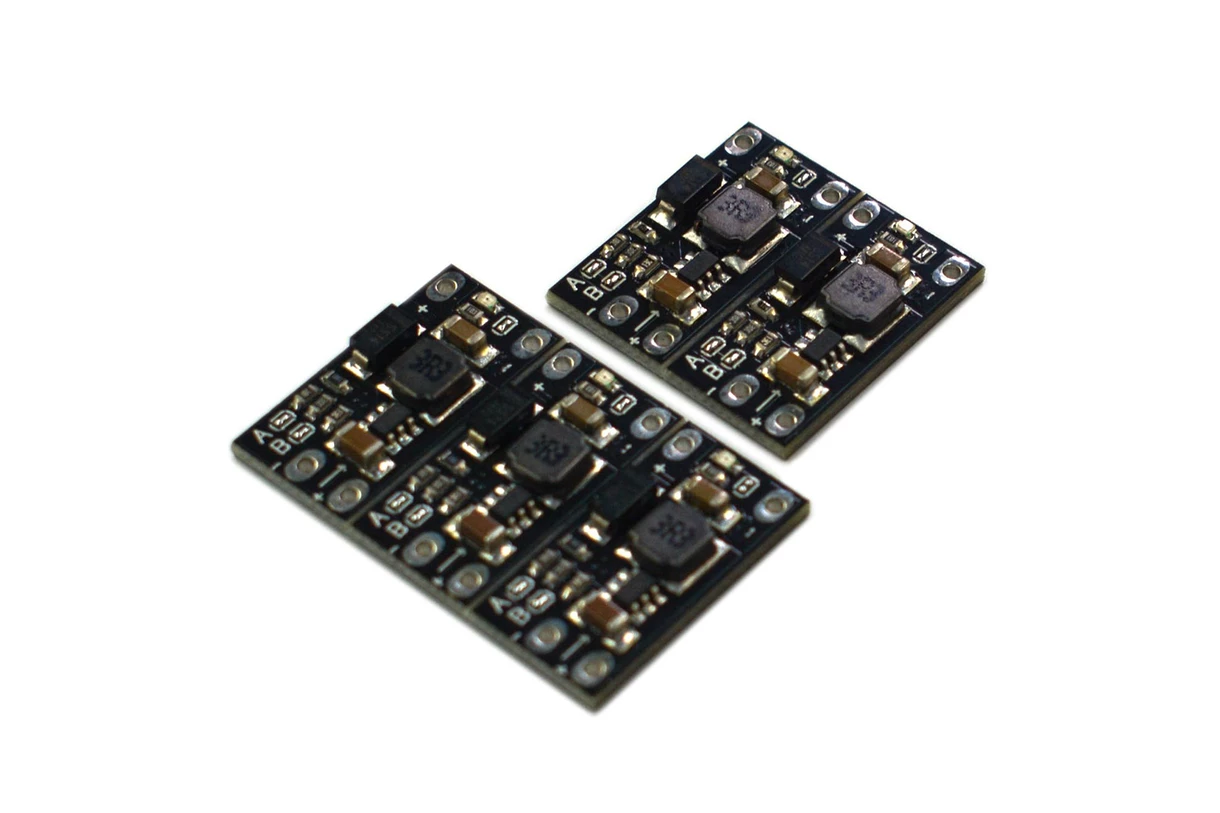

DC-DC Boost Power Supply Module 5V/8V/9V/12V (DFRobot) - DFR0952

DC-DC Boost Power Supply Module 5V/8V/9V/12V (DFRobot) - DFR0952

The DC-DC Boost Power Supply Module efficiently steps up input voltages from 2.5V~VOUT to selectable output voltages of 5V, 8V, 9V, and 12V (default). With a conversion efficiency above 80%, it ensures optimal power delivery for various applications. Its compact design and user-friendly features make it suitable for battery boosting, power supply modifications, car electronics, and LED lighting projects.

Package Includes

  • 1 × DC-DC Boost Power Supply Module

24.95 AED 24.95 AED Tax Included
24.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  1. Compact Design: Small form factor allows easy integration into different devices.
  2. On-board Power Indicator: Visual feedback of operational status for convenience.

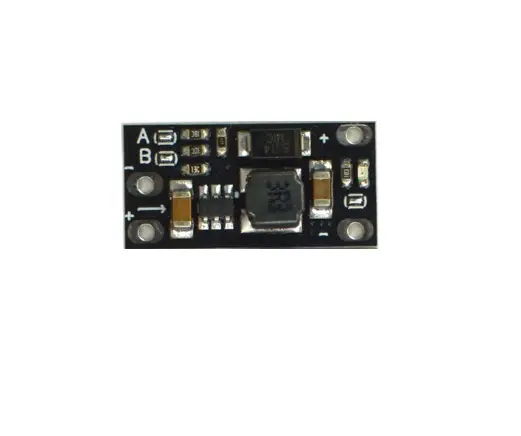

  3. Voltage Output Selection: Front-side pads labeled A and B enable easy voltage adjustment by soldering connections according to the documentation.

DC-DC Boost Module

Pinout

DC-DC Boost Module Pinout

Specifications

  • Input Voltage: DC 2.5V to VOUT (must be lower than the set output voltage)
  • Output Voltage Options: 5V, 8V, 9V, 12V (default 12V)
  • Output Current:
    • 5V: 1A (@3.7V input), 0.7A (@5V input)
    • 8V: 0.5A (@3.7V input), 0.6A (@5V input)
    • 9V: 0.45A (@3.7V input), 0.6A (@5V input)
    • 12V: 0.3A (@3.7V input), 0.5A (@5V input)
  • Conversion Efficiency: ≥80%

Applications

  • Battery Boost: Increase battery power output.
  • Power Supply Modification: Customize output voltage for specific requirements.
  • Car Electronics: Power electronic devices in vehicles.
  • LED Lighting: Drive LED components efficiently.

Note

This module does not include reverse connection protection. Ensure correct polarity and that the input voltage is lower than the set output voltage to prevent damage.
