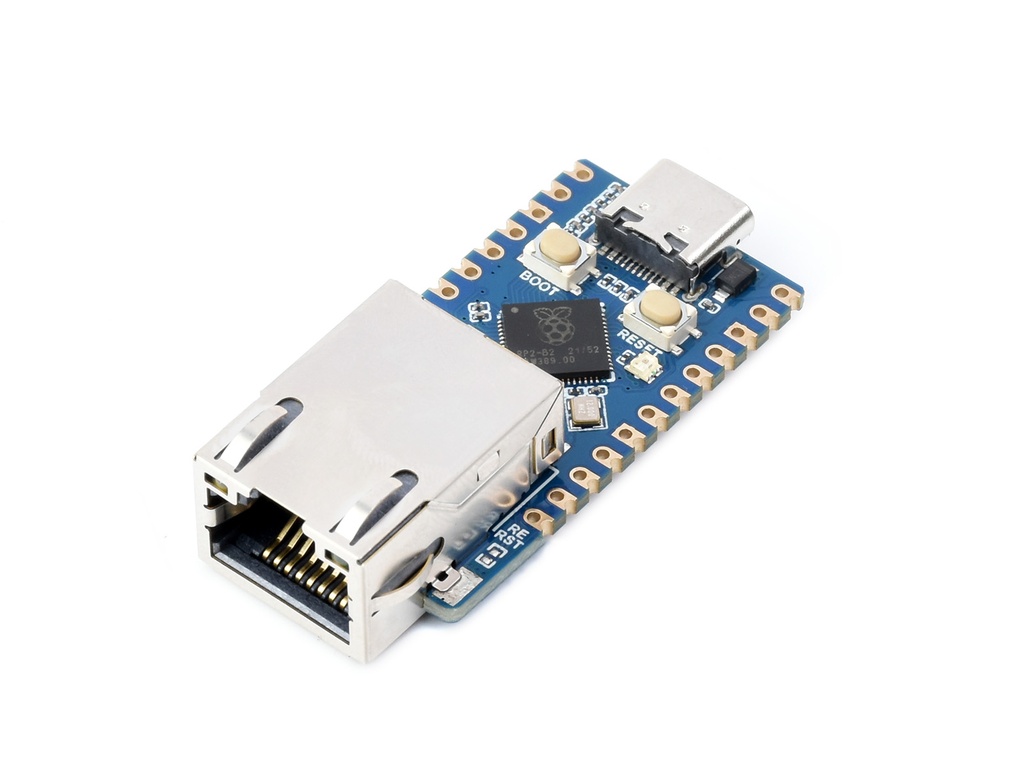

Raspberry Pi Pico RP2040-ETH Mini Development Board (WaveShare)
The RP2040-ETH microcontroller board offers a compact and feature-rich solution for embedded projects, suitable for both beginners and experienced developers. Its versatile design and capabilities make it a valuable addition to any toolkit.
Package Includes:
- RP2040-ETH board × 1
- USB Type-C cable × 1
Features:
- Dual-core Arm Cortex M0+ processor, with flexible clock speeds of up to 133 MHz.
- 264KB of SRAM and 4MB of onboard Flash memory.
- Equipped with an onboard CH9120, complete with an integrated TCP/IP protocol stack.
- 14 multi-function GPIO pins, compatible with some Pico HATs for expanded functionality.
- Castellated module design for direct soldering onto carrier boards.
- Drag-and-drop programming using mass storage over USB.
- Built-in temperature sensor for environmental monitoring.
- 8 programmable I/O (PIO) state machines for custom peripheral support.
Tiny Size and Easy Integration:
Compact design with castellated holes and immersion gold plating for highly integrated packaging. Supports multiple embedding methods into various product applications. Comes without pre-soldered headers by default; mass customization available upon request.
Support Multiple Communication Modes:
- TCP Server
- TCP Client
- UDP Server
- UDP
Controllable via Network:
With network connectivity, you can control and interact with this board remotely.
Programming Support:
Supports C/C++, MicroPython, and Arduino. Includes a comprehensive SDK, development resources, and tutorials for quick start.
14 Multi-Function GPIO Pins:
Configurable pin functions allow flexible development and integration.
What's On Board:
- USB Type-C connector: Supports USB1.1 hosts and slave devices.
- BOOT button: Press when resetting to enter download mode.
- RESET button: For resetting the board.
- RP2040: Dual-core processor with up to 133MHz operating frequency.
- RJ45 Ethernet port: For Ethernet connectivity.
- RT9013-33GB: 500mA Low Dropout, Low Noise, Ultra-Fast LDO.
- W25Q32JVSSIQ: 4MB NOR-Flash for storage.
- CH9120: Ethernet serial port transmission IC.
