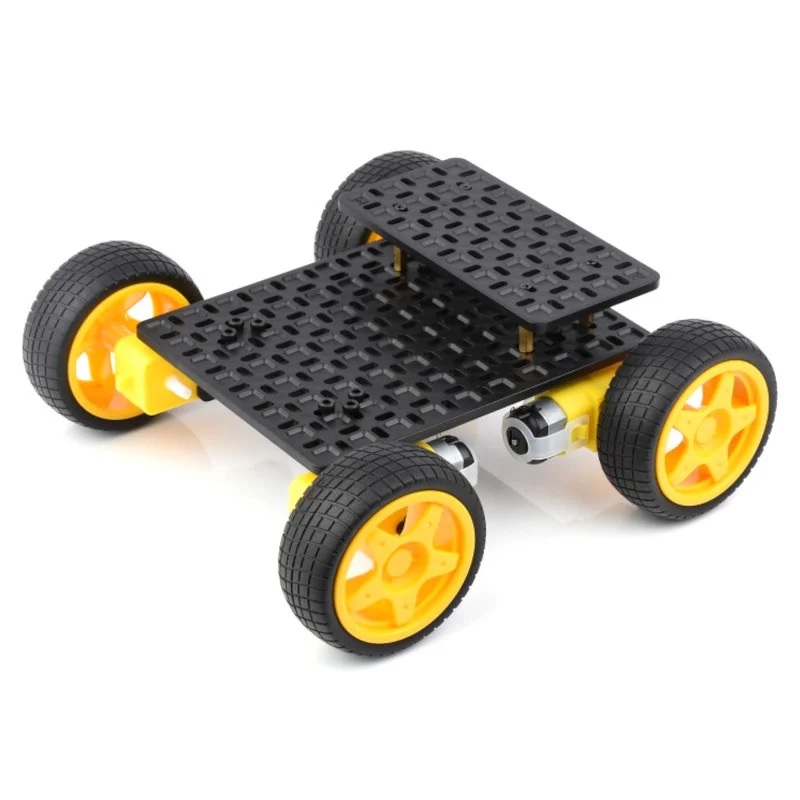

Robot - Smart Mobile Robot Chasse NS Kit (WaveShare)

Robot - Smart Mobile Robot Chasse NS Kit (WaveShare)

The Smart Mobile Robot Chassis NS Kit is a versatile and adaptable platform for creating smart mobile robots. This kit provides a solid foundation for various robotic projects.

Package Includes:

  • Metal chassis kit × 1
  • Middle-sized mounting plate × 1
  • TT Motor (4PCS) × 1
  • Screws pack × 1

79.00 AED 79.00 AED Tax Included
79.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Rich Mounting Holes:

This chassis kit boasts an abundance of mounting holes, making it compatible with a wide range of components and accessories. It supports popular platforms like Raspberry Pi 4B, Raspberry Pi Zero, Jetson Nano, Lidar, Battery Box, Bus Servo, and other modules.

Robot-Chassis-S Series Smart Mobile Robot Chassis:

  • Supports the installation of normal or Mecanum wheels, giving flexibility in mobility.
  • Utilizes a mounting plate as the primary structure for a sturdy and customizable base.
  • Includes a middle-sized mounting plate.
  • Lightweight and user-friendly design.
  • Low complexity, making it suitable for beginners.
  • Open-source structure and model for secondary development and customization.

Motor Specifications:

  • Voltage range: 6–9V
  • RPM: 190RPM @ 6V
  • Current: 160mA

Four-Wheel Drive for Stronger Power and Stability:

This chassis kit features a four-wheel drive system, delivering robust power and stability for your mobile robot projects.

Robot Chassis

The Robot-Chassis Series Smart Mobile Robot Chassis Kit is an excellent choice for robotic enthusiasts and developers looking to build their own smart robots. With its rich mounting options and robust design, it provides a solid foundation for various applications, from educational projects to advanced robotics.



Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
