Servo Metal Gear 2.3kg.Cm Serial Two-Way Feedback Switchable Servo/Motor 300 Rotation SC09 (Waveshare)

Servo Metal Gear 2.3kg.Cm Serial Two-Way Feedback Switchable Servo/Motor 300 Rotation SC09 (Waveshare)

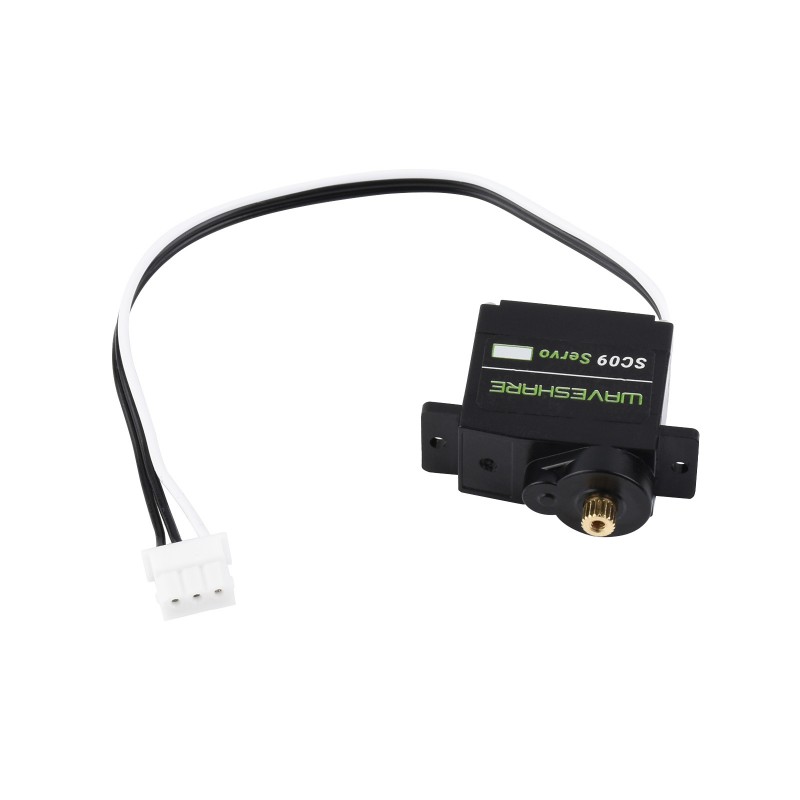

The SC09 Servo is a compact marvel, offering dual-shaft serial bus control within an impressive 300-degree range. This versatile servo goes beyond the ordinary, allowing programmable transitions between continuous rotation motor and stepper motor modes. Equipped with a unique interface, it's possible to daisy-chain up to 253 SC09 servos in a series, each capable of providing real-time data on angle, load, voltage, mode, and more. This makes it a perfect choice for robotic arm projects, hexapod robots, humanoid robots, wheeled robots, or any endeavor where servo angle and load feedback are essential.

Package Includes:

  • 1 x SC09 Servo
  • 1 x User Manual
  • Mounting accessories

55.95 AED 55.95 AED Tax Included
55.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Metal High Torque Servo
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Chainable Control: Link up to 253 servos in a series (with sufficient power supply) and receive individual feedback from each servo.
  • Wide Voltage Range: Supports 4.8V to 8.4V input, enhancing power flexibility.
  • Robust Torque: Locked-rotor torque of up to 2.3kg.cm @ 6V for demanding applications.
  • High Precision: Angle control accuracy of 300°/1024 for precise movements.
  • Programmable Modes: Switch between servo mode (angle control) and motor mode (continuous rotation).

Specifications:

  • Input Voltage (VIN): 4.8-8.4V
  • Mechanism Limit Angle: Unlimited
  • Rotation Angle: 300° (0~1023)
  • Baud Rate: 38400bps~1Mbps
  • Gear Type: High-precision metal gear
  • No-load Speed: 0.1sec/60° (100RPM) @ 6V
  • Position Sensor Resolution: 0.293° (300°/1024)
  • ID Range: 0-253
  • Feedback Information: Position, Load, Speed, Input Voltage
  • No-load Current: 150mA @ 6V
  • Locked-rotor Current: 1.0A
  • Dimensions: 23.2×12.0×25.5mm

Package Includes:

  • 1 x SC09 Servo
  • 1 x User Manual
  • Mounting accessories
