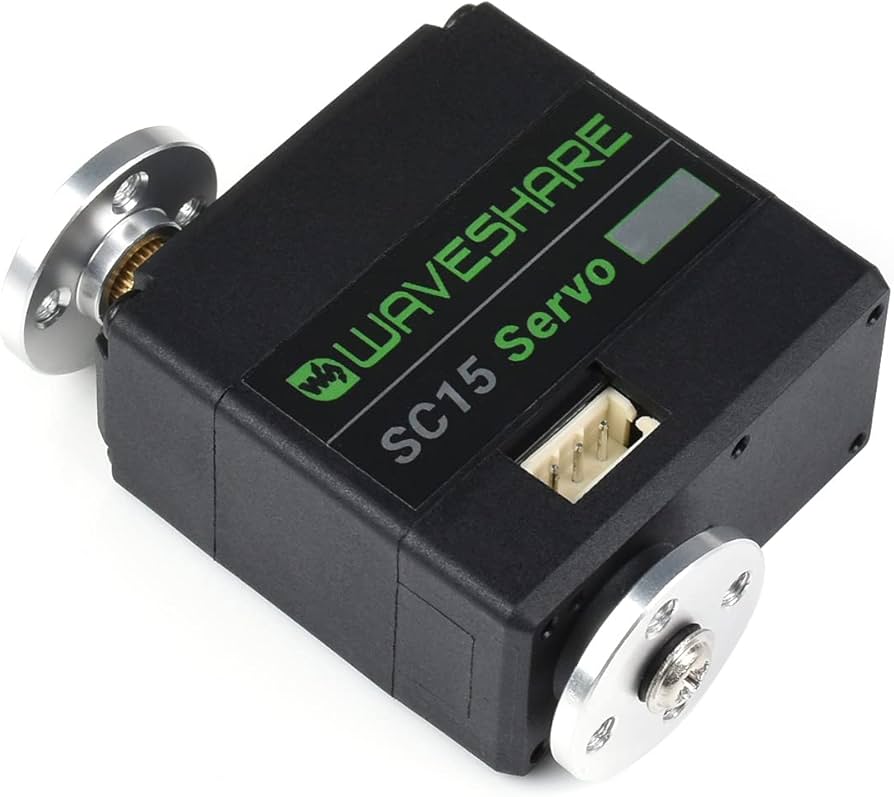

Servo Metal Gear 17kg.Cm Serial Magnetic Encoder Programmable 180/360 Degrees Rotation SC15 (Waveshare)

Servo Metal Gear 17kg.Cm Serial Magnetic Encoder Programmable 180/360 Degrees Rotation SC15 (Waveshare)

The SC15 Servo is a high-torque programmable serial bus servo designed to deliver exceptional control within a 180° range, with the added capability to seamlessly switch to motor or stepper motor modes. With two interfaces on each servo, you can daisy-chain up to 253 of these servos, each providing crucial data like current angle, load, voltage, and mode. Ideal for robotics projects that demand real-time feedback on steering gear, such as robotic arms, hexapod robots, humanoid robots, and wheeled robots.

Package Includes:

  • 1 x SC15 Servo

99.50 AED 99.50 AED Tax Included
99.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Metal High Torque Servo
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Serial Bus Interface: The SC15 servo operates effortlessly through a TTL bus interface, simplifying integration into your projects.
  • Multi-Servo Control: Each servo is equipped with two interfaces, enabling you to connect up to 253 servos in series. Get valuable feedback information from each servo, enhancing your control capabilities.
  • Wide Voltage Range: It supports a broad voltage input range of 4.8-8.4V, making it versatile and compatible with various power sources.
  • Impressive Torque: Despite its compact size, it packs a punch with up to 17kg.cm torque at 8.4V, ensuring it can handle demanding tasks.
  • High Precision: Benefit from an angle control accuracy of 180°/1024, guaranteeing precise movements in your robotics applications.
  • Programmable Modes: Tailor its behavior to your project's needs with programmable modes, including servo mode angle control and continuous motor rotation.

Specifications:

  • Input Voltage: 4.8-8.4V
  • Mechanical Limited Angle: No Limit
  • Rotating Angle: 180° (servo mode angle control) / 360° (motor mode continuous rotation)
  • Baudrate: 1Mbps
  • Gear: High-precision metal gear
  • Idling Speed: 0.18sec/60°@4.8V, 0.16sec/60°@6V
  • Position Sensor Resolution: 180°/1024
  • ID Range: 0-253
  • Feedback: Position, Load, Speed, Input Voltage
  • Idling Current: 200 mA
  • Stalling Current: 1700 mA
  • Dimension: 40.5mm x 40mm x 20mm
