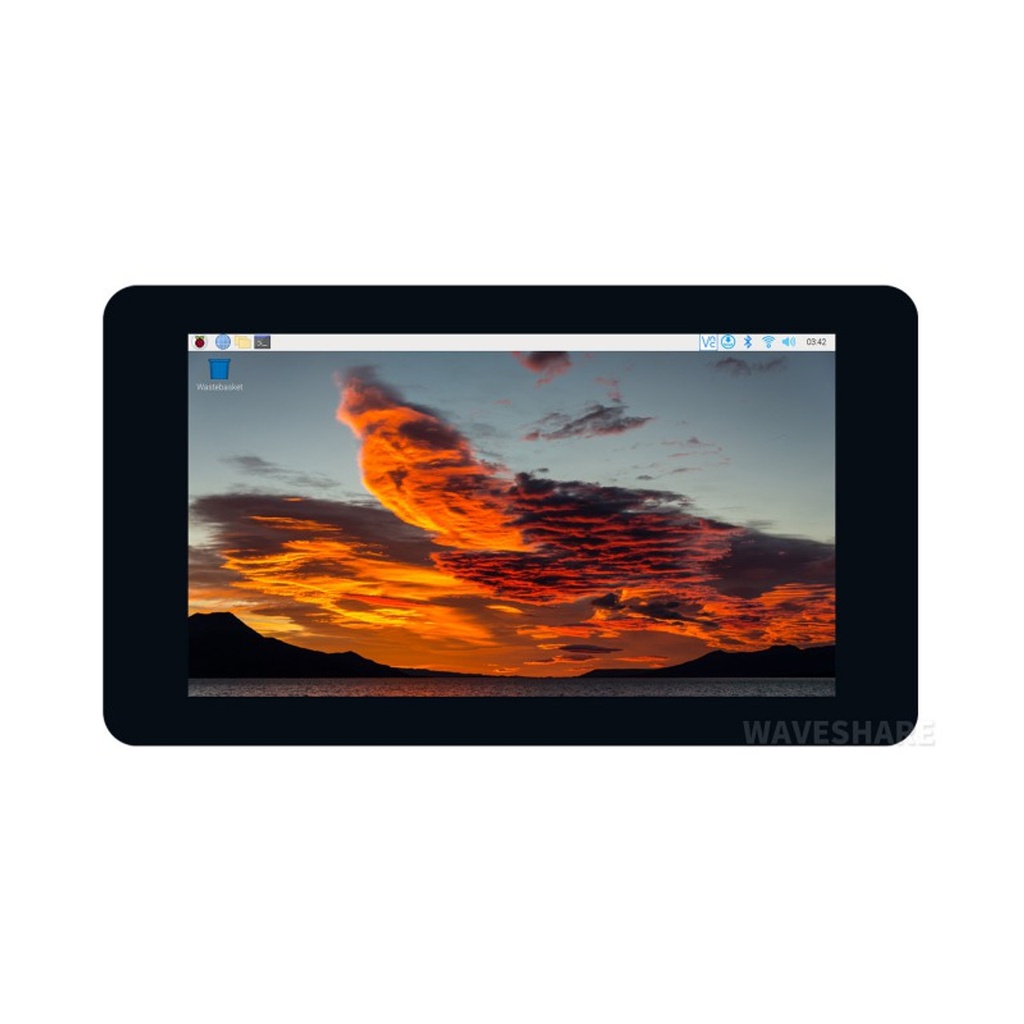

Raspberry Pi 7inch 800x480 Capacitive Touch Display DSI Interface IPS Screen 5-Point Touch (WaveShare)
The 7-inch DSI LCD (B) is a display module designed for various single-board computers, including the Raspberry Pi, VisionFive2, Tinker Board 2, and Core3566. With a high-quality IPS screen and capacitive touch control, this display offers an excellent visual experience and ease of interaction.
Package Includes:
- 7-inch DSI LCD (B)
- 15PIN FPC cable
- 2PIN power cable
- Copper posts and screws
Features:
- 7-inch DSI touch screen with 5-point capacitive touch control.
- IPS screen with a hardware resolution of 800 x 480 pixels.
- Compatible with Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+ and some CM3/3+/4 expansion boards (requires DSI-Cable-15cm).
- Directly connects to the Raspberry Pi via the DSI interface with a refresh rate of up to 60Hz.
- Driver supports for Raspberry Pi OS, Ubuntu, Kali, and Retropie, making it hassle-free to set up.
- Compatibility with VisionFive2, providing Debian support with single-point control and driver-free operation.
- Suitable for Tinker Board 2, offering Linux and Android compatibility with up to five-point touch control, also driver-free.
- Works seamlessly with Core3566, supporting Debian and Ubuntu with up to five-point touch control, and no need for additional drivers.
- Software-adjustable brightness for personalized display settings.
Working with Raspberry Pi:
Hardware Connection
- Connect the 7-inch DSI LCD to the DSI interface of the Raspberry Pi using the 15PIN FPC cable.
- Link the power port to the 40PIN GPIO header using a 2PIN power cable.
- For convenience, you can securely attach the Raspberry Pi to the back of the 7-inch DSI LCD using copper posts. This creates a neat and compact installation, ensuring optimal functionality.
Specifications:
- Screen Size: 7 inches
- Touch Control: 5-point capacitive
- Screen Type: IPS
- Resolution: 800 x 480 pixels
- Refresh Rate: Up to 60Hz
- Compatibility: Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 expansion boards, VisionFive2, Tinker Board 2, Core3566
- Operating Systems: Raspberry Pi OS, Ubuntu, Kali, Retropie, Debian, Linux, Android
- Brightness Control: Software-adjustable
Features:
- 7-inch DSI touch screen with 5-point capacitive touch control.
- IPS screen with a hardware resolution of 800 x 480 pixels.
- Compatible with Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+ and some CM3/3+/4 expansion boards (requires DSI-Cable-15cm).
- Directly connects to the Raspberry Pi via the DSI interface with a refresh rate of up to 60Hz.
- Driver supports for Raspberry Pi OS, Ubuntu, Kali, and Retropie, making it hassle-free to set up.
- Compatibility with VisionFive2, providing Debian support with single-point control and driver-free operation.
- Suitable for Tinker Board 2, offering Linux and Android compatibility with up to five-point touch control, also driver-free.
- Works seamlessly with Core3566, supporting Debian and Ubuntu with up to five-point touch control, and no need for additional drivers.
- Software-adjustable brightness for personalized display settings.
Working with Raspberry Pi:
Hardware Connection
- Connect the 7-inch DSI LCD to the DSI interface of the Raspberry Pi using the 15PIN FPC cable.
- Link the power port to the 40PIN GPIO header using a 2PIN power cable.
- For convenience, you can securely attach the Raspberry Pi to the back of the 7-inch DSI LCD using copper posts. This creates a neat and compact installation, ensuring optimal functionality.
Specifications:
- Screen Size: 7 inches
- Touch Control: 5-point capacitive
- Screen Type: IPS
- Resolution: 800 x 480 pixels
- Refresh Rate: Up to 60Hz
- Compatibility: Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 expansion boards, VisionFive2, Tinker Board 2, Core3566
- Operating Systems: Raspberry Pi OS, Ubuntu, Kali, Retropie, Debian, Linux, Android
- Brightness Control: Software-adjustable
