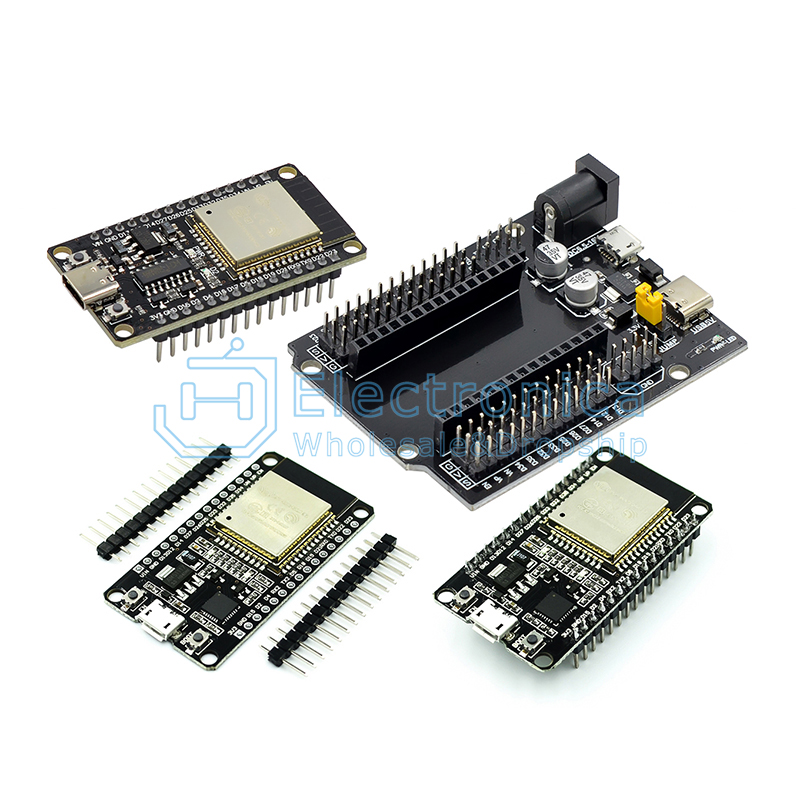

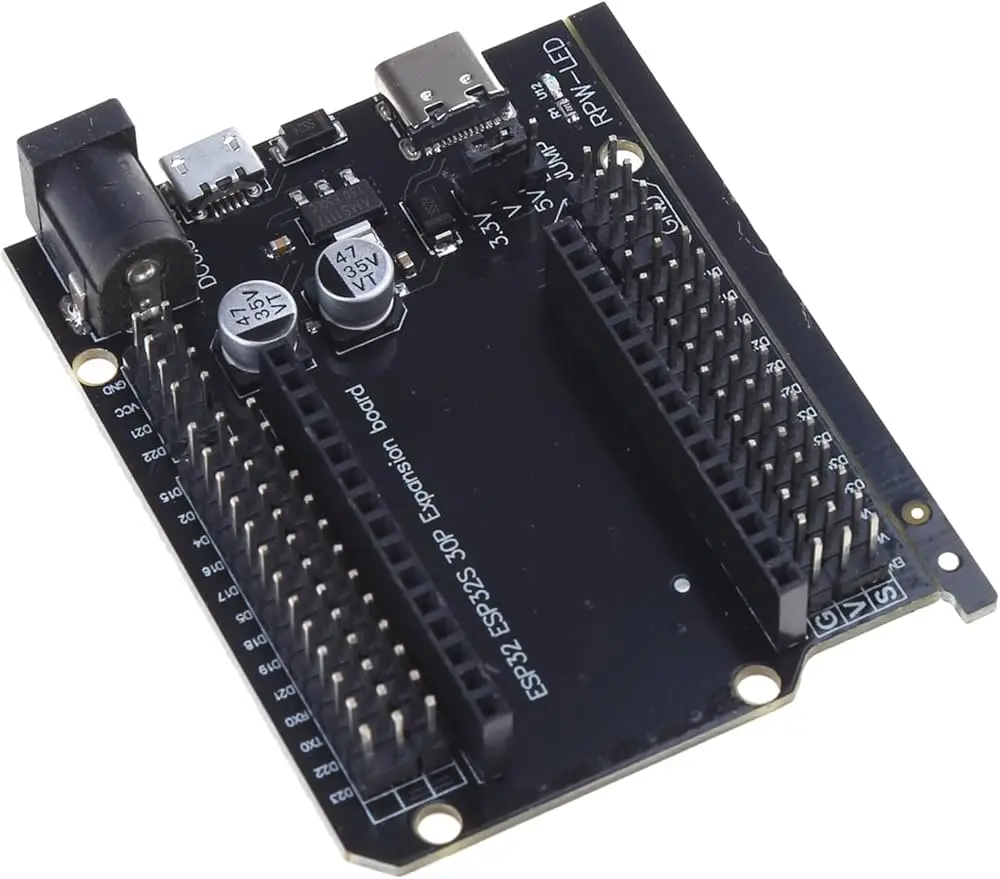

ESP32 DEVKIT 30P Expansion Board -V1

The ESP32 Expansion Board, also known as the ESP32 30P DEVKIT-V1, is designed to simplify development with the powerful ESP32-DOWDQ6-V3 dual-core 32-bit MCU. It offers versatile power options and broad software compatibility, making it ideal for IoT and embedded projects.

Package Includes:

  • 1 × ESP32 Expansion Board (ESP32 30P DEVKIT-V1)

42.00 AED 42.00 AED Tax Included
42.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Expansion For ESP32

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Compatible with ESP32-DOWDQ6-V3 dual-core 32-bit MCU for high-performance processing
  • Wide VIN Input: Supports 5–12 V external input, including 5.5 V battery sources
  • Multiple Power Modes: USB power, external 3.3 V supply, or VIN power supply selection
  • Software Compatibility: Works with Arduino IDE, Mixly, Mind+ and other popular development environments
  • Breakout pins for all 30 GPIOs, ADC, DAC, SPI, I²C, UART, PWM, and more

Specifications:

  • Board Model: ESP32-DevKitC-32
  • Dimensions: 53.4 × 68.6 mm (2.1 × 2.7 inches)
  • Microcontroller: ESP32-DOWDQ6-V3
  • Power Supply: 5–12 V VIN input, USB 5 V input, or 3.3 V external supply
  • Interfaces: 30 GPIO breakout (ADC, DAC, PWM, SPI, I²C, UART)
