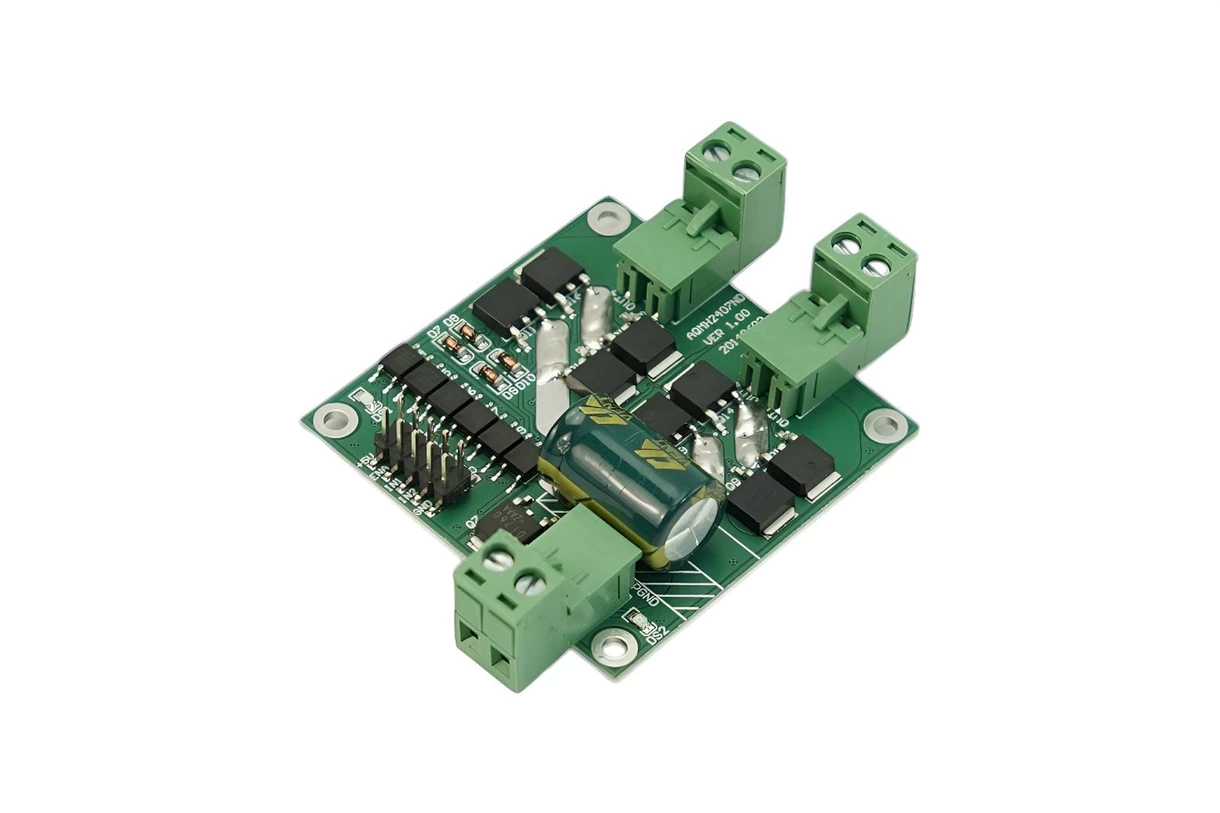

Motor Driver 2x7A DC Module (DFRobot) - DRI0041
This is an ultra-small Dual DC motor driver for some room-limited projects. UVLO (Under Voltage Latch-Out) features a safeguard for your system. It is very considerate to own a Photo Coupler isolation for all the signals in case the motor's Reverse Current would interfere with the control signals. Besides all, all the interfaces include ESD (electro-static discharge) protection.
Package Includes:
1 x Motor Driver 2x7A DC Module (DFRobot) - DRI0041
SPECIFICATION:
- Voltage supply: DC 7 ~ 24 V
- Voltage supply limit: 6.5 ~ 27 V
- Control signal Level (Compatible 3.3V/5V):
- High: DC 3.0 ~ 6.5 V
- Low: DC 0 ~ 0.8 V
- Output Channel: 2
- Control signal current: 3 ~ 11 mA (Each route)
- Maximum continuous operating current: 7 A
- Peak current: 50 A
- Speed control: PWM
- Minimum valid Pulse Width: 5 us
- Working Temperature: -25 ~ 85 °C
- Mounting Hole: M3
- Dimension (Length × Width × Height): 55 x 55(mm) / 2.165 x 2.165(in)
- Weight: 32g
