Solar Power Manager (5V 1A)

Solar Power Manager (5V 1A)

Solar Power Manager 5V is a small and high-efficiency solar power management module designed for 5V solar panels. It features an MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. The module can provide up to 900mA charging current to a 3.7V Li battery with a USB charger or solar panel. The ON/OFF controllable DC-DC converters with 5V 1A output satisfy the needs of various solar power projects and low-power applications. The module also features various protection functions for the battery, solar panel, and output, significantly enhancing the stability and safety of your solar projects.

Package includes:

  • 1 x Solar Power Manager 5V

30.00 AED 30.00 AED Tax Included
30.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Solar Charger
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



FEATURES

  • Constant voltage MPPT algorithm, maximizing solar panel efficiency
  • Designed for 5V solar panel
  • Double charging mode: solar/USB charger (900mA max charge current)
  • 5V ON/OFF controllable regulated power supply for low-power applications
  • All-round protection functions
  • USB connector with ESD shell

SPECIFICATION

  • Solar Power Management IC: CN3165
  • Solar Input Voltage (SOLAR IN): 4.5V~6V
  • Battery Input (BAT IN): 3.7V Single cell Li-polymer/Li-ion Battery
  • Charge Current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
  • Charging Cutoff Voltage (USB/SOLAR IN): 4.2V±1%
  • Regulated Power Supply: 5V 1A
  • Regulated Power Supply Efficiency (3.7V BAT IN): 86%@50% Load
  • USB/Solar Charge Efficiency: 73%@3.7V 900mA BAT IN
  • Quiescent Current: <1 mA
  • Operation Temperature: -40℃～85℃
  • Dimension: 33.0mm × 63.0mm
  • Protection Functions:
    1. BAT IN: over charge/over discharge/over current/reverse connection protection
    2. 5V/USB OUT: short circuit/over current/over heat protection
    3. SOLAR IN: reverse connection protection

APPLICATIONS

  • Smart solar environment monitor system
  • Solar powered robot
  • Small solar street lamp
  • Solar power bank

Pinout:

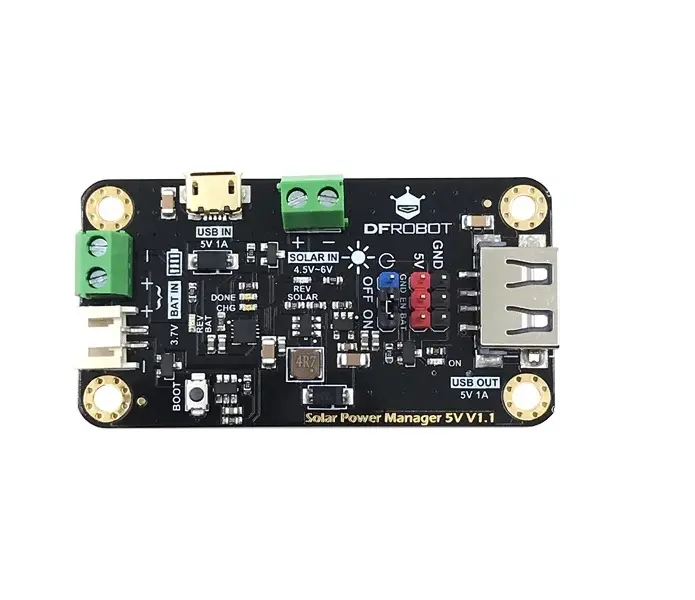

Solar Power Manager 5V Board Overview

Connection Diagram

Solar Power Manager 5V Connection Diagram

Build a solar-powered system
