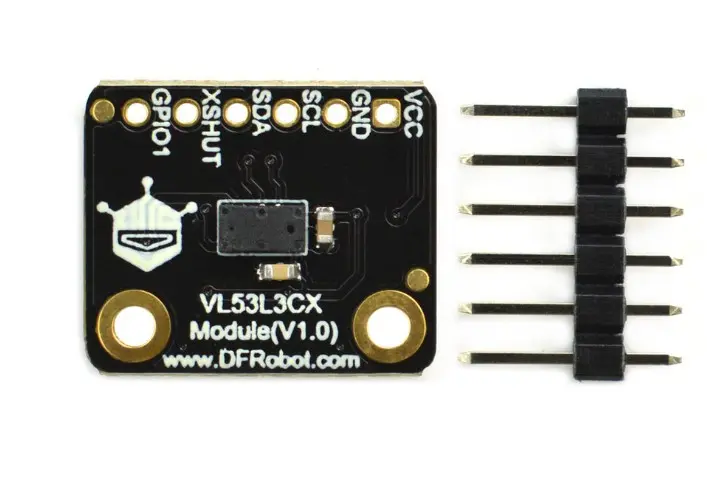

Distance Ranging Sensor VL53L3CX ToF (DFRobot Fermion) - SEN0378

The VL53L3CX is a Time-of-Flight (ToF) sensor from STMicroelectronics that utilizes the company's third-generation FlightSense technology for improved detection accuracy. It has a sensing range of 25~3000mm, and features automatic smudge correction and immunity to glass cross-talk. This sensor is capable of detecting various objects within its field of view (FoV) and determining their depth, thanks to specialized algorithms and a carefully designed module.

Package Contents:

Fermion: VL53L3CX ToF Distance Ranging Sensor (Breakout) x1
2.54-6P Black Single Row Connector x1

Distance Laser Measuring

56.50 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

High accuracy distance measurement
Long-distance and accurate ranging up to 300 cm
Typical full FoV 25°
Multi-target distance ranging
Immune to glass cross-talk
Smudge compensation function

Specification:

Power Supply: 3.3V~5V
Operating Current: ＜20mA
Detection Range: 25-3000mm
Emitter: 940nm invisible laser (VCSEL)
FOV: 25°
I2C Address: 0x29
Operating Temperature Range: -20℃~85℃
Dimension: 18×15mm / 0.71×0.59"

Note 1: The product has only been verified on M0 and ESP32 due to the large size of its algorithm files.

Note 2: Multi-target distance measurement can only be triggered under certain conditions. Please refer to their official website for more details.

Fermion:VL53L3CX ToF Distance Ranging Sensor (Breakout)

Board-Overview

Note 3: The detection range of 25mm-3000mm comes from the datasheet of STMicroelectronics Rev 2. The actual sensing distance varies with the environment. For measurement environment information, please refer to document AN5561 at the end of the Wiki.

Documents:

Product wiki
