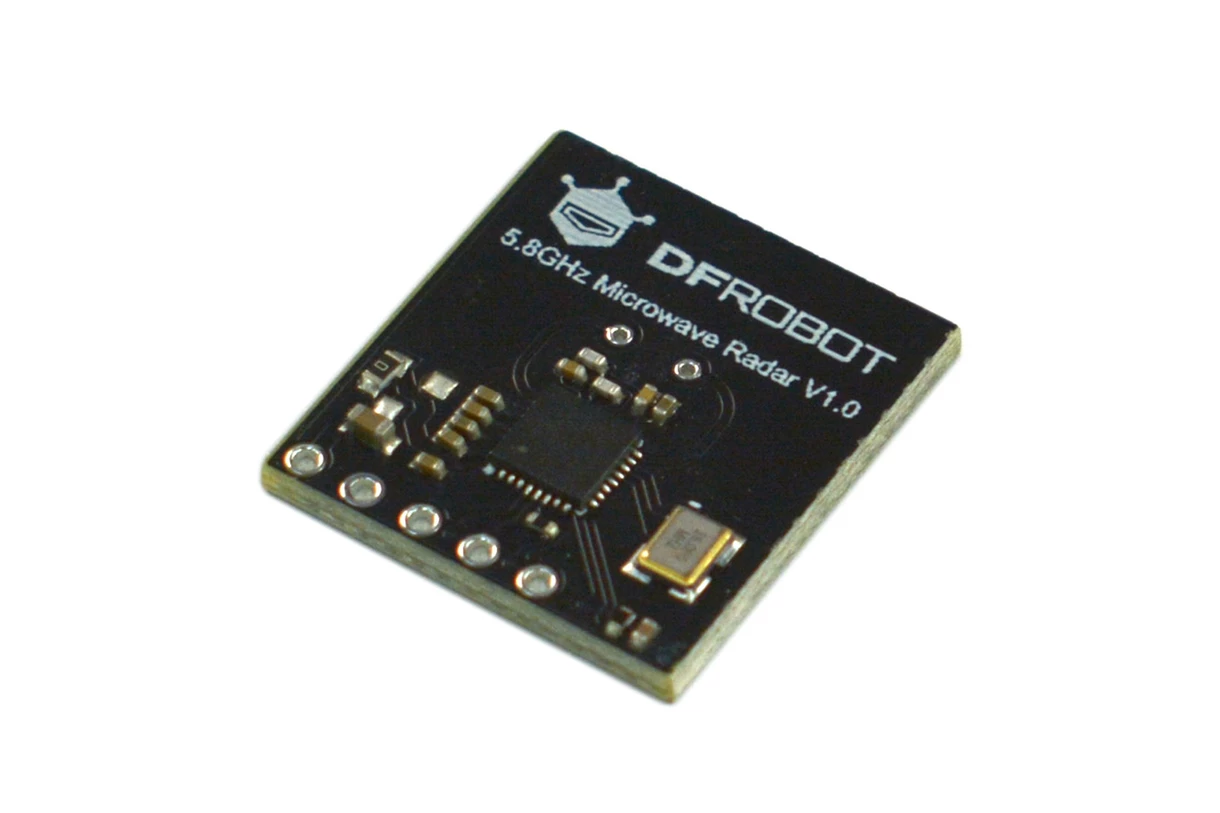

Microwave Radar 5.8GHz Module (DFRobot) - SEN0521

Microwave Radar 5.8GHz Module (DFRobot) - SEN0521

The 5.8GHz Microwave Radar Module is an advanced microwave sensor designed for motion detection. Operating at a frequency of 5.8GHz, it transmits electromagnetic waves and distinguishes between the transmitted and reflected waves to identify movement within its detection area. Unlike traditional sensors limited to detecting large body movements, this microwave sensor excels in detecting subtle motions like breathing. It can accurately determine human presence, even when individuals are sitting or sleeping. The sensor outputs the detected results through the serial port or as a high/low level on the I/O port.

Package Includes:

  • 5.8GHz Microwave Radar Module x1

89.90 AED 89.90 AED Tax Included
89.90 AED Tax Included

Not Available For Sale

This combination does not exist.

Microwave Motion Detector
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Top Installation

5.8GHz Microwave Radar Module - Top Installation

Wall Installation

5.8GHz Microwave Radar Module - Wall Installation

Features:

  • High reliability
  • High sensitivity
  • Strong anti-interference

Applications:

  • Lighting
  • Security
  • Home appliances
  • Hotels
  • Garages
  • Buildings
  • Traffic

Specifications:

  • Operating Voltage: 4.5~5.5V
  • Operating Current: 22mA
  • Detection Distance: 11m
  • Equivalent Transmission Power: 3-5dBM
  • Beam Angle: 120×120°
  • Modulation Mode: FMCW, CW
  • Operating Frequency: 5.8GHz
  • Operating Temperature: -40~85℃
  • Baud Rate: 115200
  • Dimension: 20×18mm / 0.79×0.71"





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
