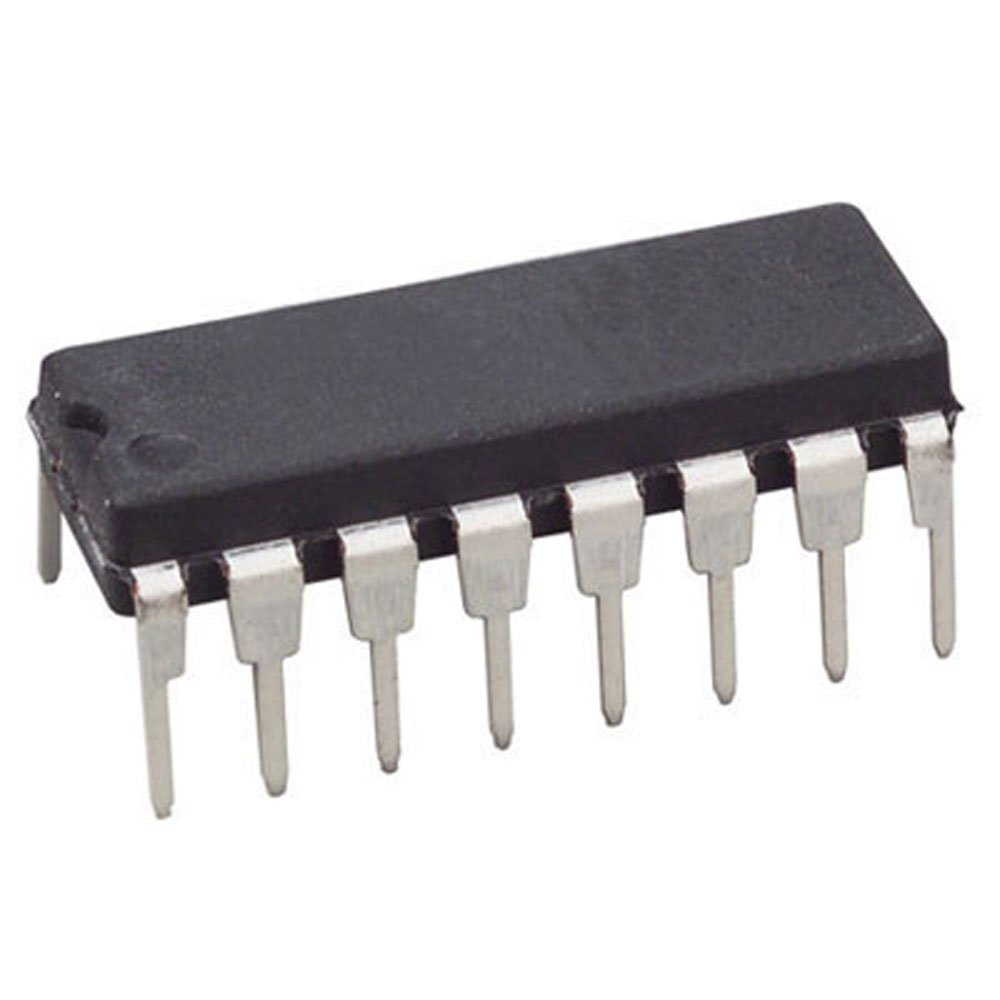

IC Presettable Divide-By-N Counter CD4018

Features:

• Presettable Counter: Allows setting a specific count value before counting begins, providing flexibility in digital applications.
• Decade Counter: Counts in decimal (0 to 9), ideal for decimal sequence counting cycles.
• Parallel Load: Supports parallel loading of the initial count value for quick configuration.
• Internal Clock: Includes an internal clock oscillator, with the option to use an external clock signal.
• Reset Function: Integrated reset feature for clearing the count and restarting when needed.
• Low Power Consumption: Energy-efficient design, suitable for battery-operated and low-power devices.

Specifications:

• Supply Voltage: Operates from 5V to 20V.
• Count Range: Counts from 0 to 9 (decade counter).
• Logic Level Compatibility: Works with standard TTL input/output logic levels.
• Maximum Clock Frequency: Supports high-speed counting within its frequency limit.
• Package Type: Available in Dual In-line Package (DIP).
