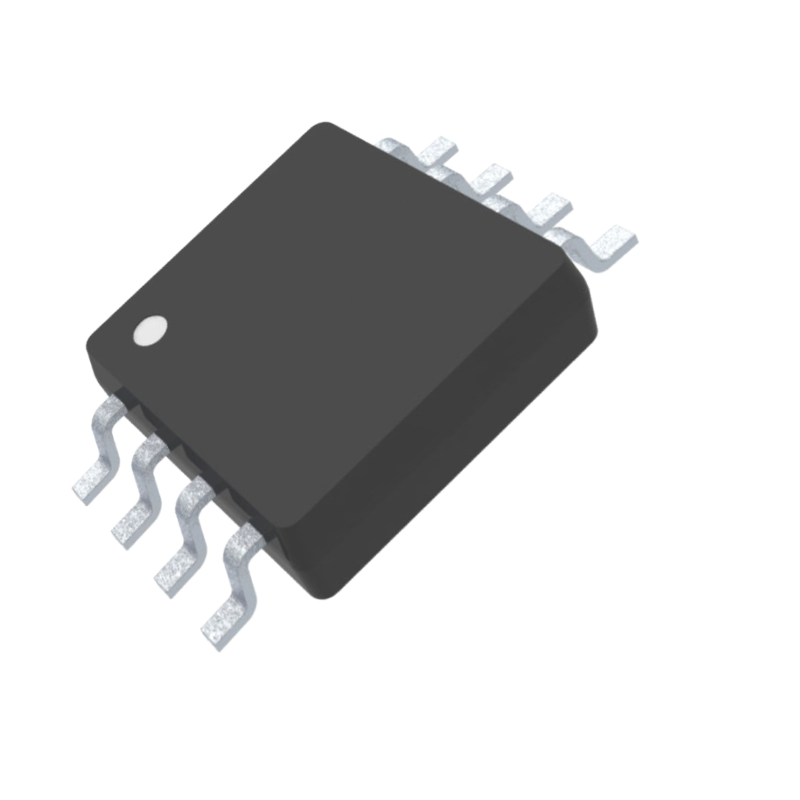

EEPROM Serial-Microwire 16K-bit 2K x 8/1K x 16 5V 8-Pin MSOP (93C86C-I/MS)

EEPROM Serial-Microwire 16K-bit 2K x 8/1K x 16 5V 8-Pin MSOP (93C86C-I/MS)

The EEPROM (Electrically Erasable Programmable Read-Only Memory) described here is a Serial-Microwire device with a storage capacity of 16K bits. It offers an organizational structure of 2K x 8 or 1K x 16, providing flexibility in data storage configurations. This component operates at 5V.

Package Includes:

  • 1 x EEPROM 16K Serial-Microwire 8-pin MSOP

5.00 AED 5.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Part Status: Active
  • Automotive: No
  • PPAP: No
  • Chip Density (bit): 16K
  • Organization: 2Kx8 | 1Kx16
  • Programmability: Yes
  • Data Retention (Year): 200 (Min)
  • Max. Access Time (ns): 100
  • Maximum Operating Frequency (MHz): 3
  • Interface Type: Serial-Microwire
  • Minimum Operating Supply Voltage (V): 4.5
  • Typical Operating Supply Voltage (V): 5
  • Maximum Operating Supply Voltage (V): 5.5
  • Operating Current (mA): 3
  • Minimum Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 85
  • Supplier Temperature Grade: Industrial
  • Hardware Data Protection: Yes

Specifications:

HTS 8542.32.00.51
ECCN (US) EAR99
Packaging Tube
Mounting Surface Mount
Package Height (mm) 0.85
Package Width (mm) 3
Package Length (mm) 3
PCB Changed 8
Standard Package Name SO
Supplier Package MSOP
Pin Count 8
Lead Shape Gull-wing
