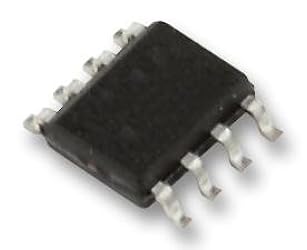

EEPROM Serial-Microwire 4K-bit 256 x 16 5V 8-Pin MSOP (93C66B-I/MS)

EEPROM Serial-Microwire 4K-bit 256 x 16 5V 8-Pin MSOP (93C66B-I/MS)

The EEPROM (Electrically Erasable Programmable Read-Only Memory) 93C66B-I/MS is a Serial-Microwire device with a storage capacity of 4K bits. It features an organizational structure of 256 x 16, offering flexible data storage options. This component comes in an 8-pin MSOP (Mini Small Outline Package) and operates at a voltage of 5V.

Package Includes:

  • 1 x EEPROM 93C66B-I/MS, 4K bit Serial-Microwire, 8-pin MSOP

5.00 AED 5.00 AED Tax Included
5.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Part Status: Active
  • Automotive: No
  • PPAP: No
  • Chip Density (bit): 4K
  • Organization: 256x16
  • Address Bus Width (bit): 8
  • Programmability: Yes
  • Data Retention (Year): 200 (Min)
  • Max. Access Time (ns): 250
  • Maximum Operating Frequency (MHz): 3
  • Process Technology: CMOS
  • Interface Type: Serial-Microwire
  • Minimum Operating Supply Voltage (V): 4.5
  • Typical Operating Supply Voltage (V): 5
  • Maximum Operating Supply Voltage (V): 5.5
  • Operating Current (mA): 2
  • Minimum Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 85
  • Supplier Temperature Grade: Industrial
  • Hardware Data Protection: Yes

Specifications:

  • HTS: 8542.32.00.51
  • ECCN (US): EAR99
  • Packaging: Tube
  • Number of Bits per Word (bit): 16
  • Mounting: Surface Mount
  • Package Height (mm): 0.85
  • Package Width (mm): 3
  • Package Length (mm): 3
  • PCB Changed: 8
  • Standard Package Name: SO
  • Supplier Package: MSOP
  • Pin Count: 8
  • Lead Shape: Gull-wing
