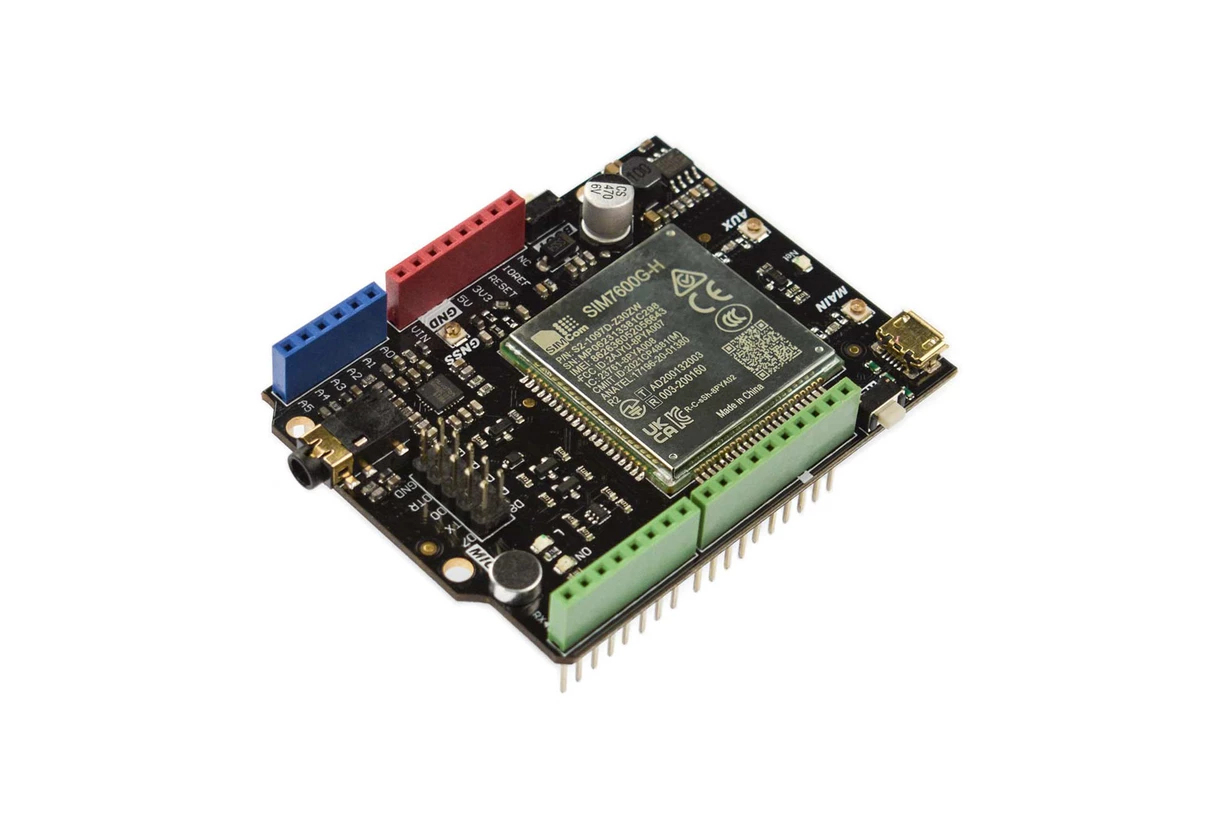

GSM SIM7600G-H CAT4 4G (LTE) Shield for Arduino (DFRobot) - TEL0124

GSM SIM7600G-H CAT4 4G (LTE) Shield for Arduino (DFRobot) - TEL0124

The SIM7600G-H 4G (LTE) is an Arduino Shield that supports 2G/3G/4G, GNSS satellite positioning, and LTE CAT4 (150Mbps DL, 50Mbps UL). It features a standard Arduino pinout and is compatible with Arduino UNO, Leonardo, Mega, and other main controllers. It supports LTE-TDD/LTE-FDD/WCDMA/GSM frequency bands, GNSS positioning with GPS, GLONASS, BD, and other satellite systems, and includes multiple network protocols for global compatibility. This expansion board enables effortless high-speed internet access, wireless communication, audio recording/playback, telephone messaging, and global positioning functionalities.

Shipping List:

  • 1 x SIM7600G-H CAT4 4G (LTE) Shield
  • 1 x 4G TEL, GPS antenna pack
  • 1 x Triple-cut universal SIM card adapter

349.00 AED 349.00 AED Tax Included
349.00 AED Tax Included

Not Available For Sale

This combination does not exist.

GSM Shield
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The SIM7600CE-T 4G (LTE) Arduino expansion board and the SIM7600G-H CAT4 4G Shield have only one difference—the module used. However, they both support the same frequency bands and GNSS positioning functionalities.

Features:

  • Controlled through AT commands
  • Supports GNSS satellite positioning (GPS, GLONASS, BD)
  • Supports multiple frequency bands: LTE-FDD/LTE-TDD/WCDMA/GSM
  • SMS support for MT, MO, CB, Text, and PDU modes
  • Supports various network protocols: TCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
  • Enables dial-up networking, telephone, messaging, TCP, HTTP, and other functionalities
  • Features two LED status displays: power supply status and network status

Applications:

  • Ideal for hobbyists for 4G communication learning and project development
  • Suitable for outdoor high-rate communication and positioning
  • Can be used for mobile tracking
  • Great for logistics tracking
  • Enables remote monitoring

Specification:

  • Operating voltage: DC 5V
  • Supported network frequency bands:
    • LTE-TDD: B34, B38, B39, B40, B41
    • LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
    • UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
    • GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
  • 4G communication rate: CAT4 (uplink speed of 50Mbps, downlink speed of 150Mbps)
  • GNSS satellite navigation technology (GPS, BD, GLONASS)
  • Operating environment: -40°C to 85°C
  • Dimensions: 69 × 54 mm
