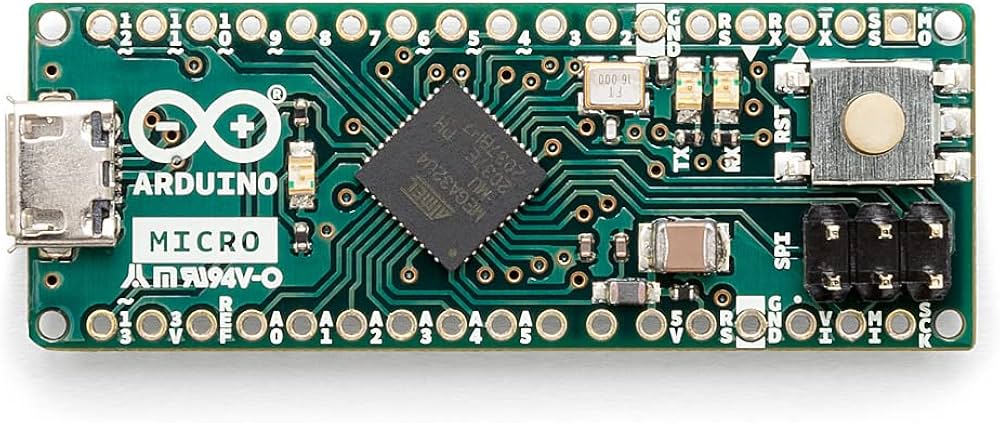

Arduino Micro ATmega32U4 Genuine Without Headers

Features:

• ATmega32U4 MCU: Powered by the advanced ATmega32U4 microcontroller unit, offering high-performance capabilities and reliability.
• 20 Digital I/O Pins: Provides 20 flexible digital I/O pins for interfacing with a wide range of external components and devices.
• PWM Outputs: Includes seven Pulse Width Modulation outputs, enabling precise control over actuators, motors, and analog components.
• Analog Inputs: Offers twelve analog input channels for accurate sensing and measurement of real-world signals.
• 16MHz Clock Speed: Operates at a swift clock speed ensuring rapid execution of instructions and efficient data processing.
• Micro USB Connection: Features a micro USB interface for seamless connectivity with your computer, enabling easy programming and data transfer.
• Reset Button: Convenient reset button for quick rebooting during development and testing.
• User-Friendly Design: Designed for ease of use, setup, and integration with other hardware and software components.
• Extensive Documentation: Backed by comprehensive documentation and support from Adafruit and the Arduino community.
• Versatile Applications: Ideal for robotics, IoT devices, automation systems, sensor interfacing, and prototyping.

Principle of Work:

1. Microcontroller: The ATmega32U4 executes code and controls the board's functions.
2. Programming: Programmed via micro USB cable; uses built-in USB functionality for virtual COM port access.
3. IDE: Arduino IDE offers a user-friendly environment with C/C++ based simplified language and extensive libraries.
4. Pins and I/O: 20 digital I/O pins and 12 analog inputs to interface with sensors, actuators, and other components.
5. USB Functionality: Functions as USB HID, enabling keyboard or mouse emulation.
6. Powering: Powered through micro USB or external power source; operates at 5V.
7. Open-Source: Hardware and software are freely available for modification and customization.

Pinout of the Module:

• Digital I/O Pins: 20 pins configurable as inputs or outputs, supporting HIGH (5V) or LOW (0V) states.
• Analog Pins: 12 pins with 10-bit ADC, enabling precise analog measurements.
• PWM Pins: 7 pins (3, 5, 6, 9, 10, 11, 13) for 8-bit PWM output.
• UART Pins: Rx and Tx pins for serial communication.
• SPI Pins: MOSI and MISO pins for SPI communication.
• I2C Pins: SDA and SCL pins for I2C communication protocol.
• Power Pins: VIN (up to 12V input), VCC (regulated 5V output), RS (reset), GND, and AREF (analog reference voltage).
• Inbuilt LED (Pin 13): Green LED connected to digital pin 13 for visual feedback.
• Micro USB Port: For programming, data transfer, and power supply.

Applications:

• Robotics: Motor control, sensor data reading, obstacle avoidance, and wireless communication.
• IoT: Data gathering, cloud communication, device control, and prototypes.
• Human-Computer Interaction (HCI): Custom input devices, multimedia control, automation, and interactive installations.
• Home Automation: Lighting, environmental monitoring, voice assistant integration, and remote device control.
• Wearable Technology: Sensor control, biometric monitoring, and small display interfaces.
• Education: Teaching electronics, programming, and physical computing.
• Prototyping & Development: Rapid product iteration with compatibility for shields and modules.

Getting Started:

1. Download and install the Arduino IDE.
2. Connect the Arduino Micro to your computer using a data-capable USB cable.
3. In the IDE, select Tools > Board > Arduino Micro.
4. Select the corresponding serial port via Tools > Port.
5. Write or load your sketch, verify and upload it to the board.
6. Use the Serial Monitor to view output or debug your code.

Sample Code (Blink LED on Pin 13):

// LED pin
const int ledPin = 13;

// Blink interval (milliseconds)
const int blinkInterval = 1000;

bool ledState = false;
unsigned long previousMillis = 0;

void setup() {
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  unsigned long currentMillis = millis();

  if (currentMillis - previousMillis >= blinkInterval) {
    previousMillis = currentMillis;

    ledState = !ledState;
    digitalWrite(ledPin, ledState);

    if (ledState) {
      Serial.println("LED ON");
    } else {
      Serial.println("LED OFF");
    }
  }
}

Technical Details:

Resources:

• Arduino Language Reference
• Getting Started with Arduino

Comparisons:

• Microcontroller: Both Arduino Micro and Pro Micro use ATmega32U4.
• Size: Micro is 48mm x 18mm; Pro Micro is 33mm x 18mm.
• I/O Pins: Micro has 20 digital and 12 analog inputs; Pro Micro has 18 digital and 8 analog inputs.
• Voltage: Micro runs at 5V; Pro Micro offers 5V or 3.3V versions.
• USB Connectivity: Micro has built-in USB; Pro Micro requires USB-to-Serial converter chip.
• Programming: Both programmable with Arduino IDE.
• Additional Features: Pro Micro may have onboard reset and status LEDs, and some versions include voltage regulator.
