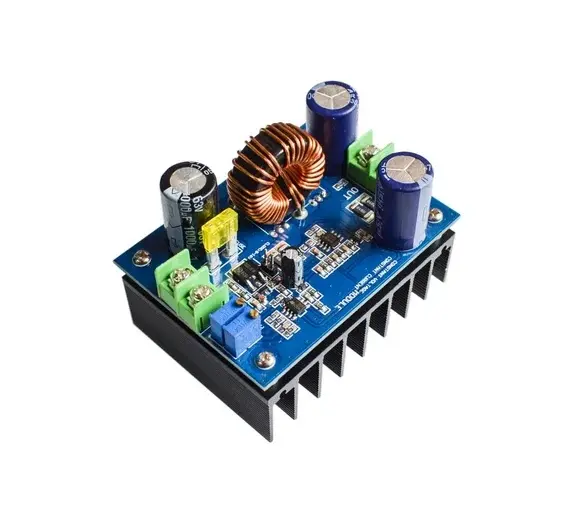

DC-DC Booster 10-60V 600W Solar Power Supply Module

The DC-DC Booster 10-60V 600W Solar Power Supply Module is designed for efficient conversion and regulation of electrical power in solar energy applications. Its compact size and powerful specifications make it an essential component in solar power systems, providing a reliable and adjustable power source for various electronic devices.

Package Includes:

  • 1 x DC-DC Booster 10-60V 600W Solar Power Supply Module

49.00 AED 49.00 AED Tax Included
49.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Solar Power Supply

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  1. Input Voltage: Accepts 12V to 60V input voltages, compatible with a wide range of solar panel setups.
  2. Input Current: Handles a maximum input current of 15A for efficient power intake.
  3. Output Voltage: Continuously adjustable output voltage ranging from 12V to 80V.
  4. Output Current: Maximum output current of 10A, adjustable to suit specific needs.
  5. Output Power: Effective power calculated as P = V × 10A, with a maximum of 600W output power.
  6. Conversion Efficiency: Up to 95%, influenced by voltage and current conditions.
  7. Short Circuit Protection: Equipped with fuse protection for safety.
  8. Module Size: Compact dimensions of 73mm × 51mm, suitable for diverse solar power systems.

Specification:

  • Input Voltage: 12V - 60V
  • Input Current: Maximum 15A
  • Output Voltage: 12V - 80V (continuously adjustable)
  • Output Current: Maximum 10A (adjustable)
  • Output Power: P = V × 10A
  • Conversion Efficiency: Up to 95%
  • Short Circuit Protection: Fuse
  • Module Size: 73mm × 51mm
