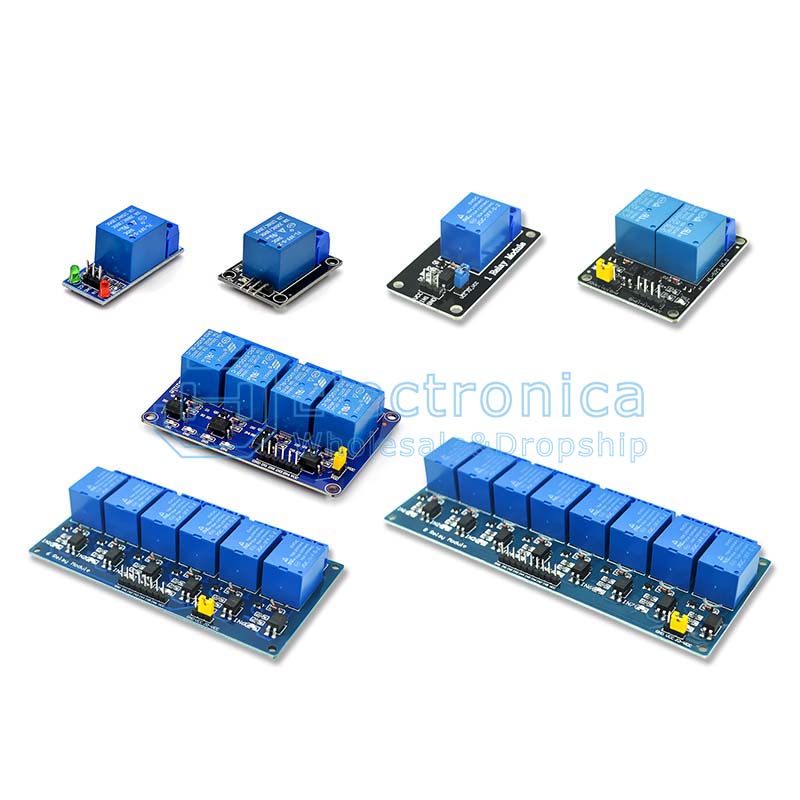

Relay 1 Channel Module Board 5V With Optocoupler (Active Low )

Relay 1 Channel Module Board 5V With Optocoupler (Active Low )

The KY-019 5V One Channel Relay Module Board is a user-friendly electronic module designed for controlling high-power devices reliably. It is suitable for temperature controller development and home appliance control applications.

Package Includes:

  • 1 x KY-019 5V Relay Module Board

9.95 AED 9.95 AED Tax Included
9.95 AED Tax Included

Not Available For Sale

This combination does not exist.

With Optocoupler
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Working Voltage: 5V
  • Pull-In Current: Approximately 70mA per channel
  • Relay Status Indicator: Provides visual feedback of the relay's operational status

Applications:

  • Temperature controller development projects
  • Home appliance control and automation

Test Instruction:

  • Simple 3-wire structure for each output group for easy integration
  • Includes six reserved output terminals for versatile connections
  • Input and output are electrically isolated for safe operation
  • Activate relay by supplying the correct voltage and connecting a high level to the input pin (e.g., short to VCC)
  • Deactivate relay by disconnecting or connecting a low level to the input pin (e.g., short to GND)





Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards
  • I2C bus communication for real-time monitoring of battery voltage, current, power, and remaining capacity
  • Multi-battery protection circuits: overcharge/discharge protection, over current protection, short circuit protection, reverse protection, and equalizing charge
  • Onboard 5V regulator, up to 2.5A continuous output current
  • 5V USB output for powering additional boards
  • Batteries warning indicators for easy connection verification

Specifications:

  • Output voltage: 5V
  • Charger: 8.4V 2A
  • Control bus: I2C
  • Battery supported: 18650 Li battery (NOT included)
  • Dimensions: 56mm × 85mm
  • Mounting hole: 3.0mm
