STM Blue Pill STM32F103C6T6 Development Board

STM Blue Pill STM32F103C6T6 Development Board

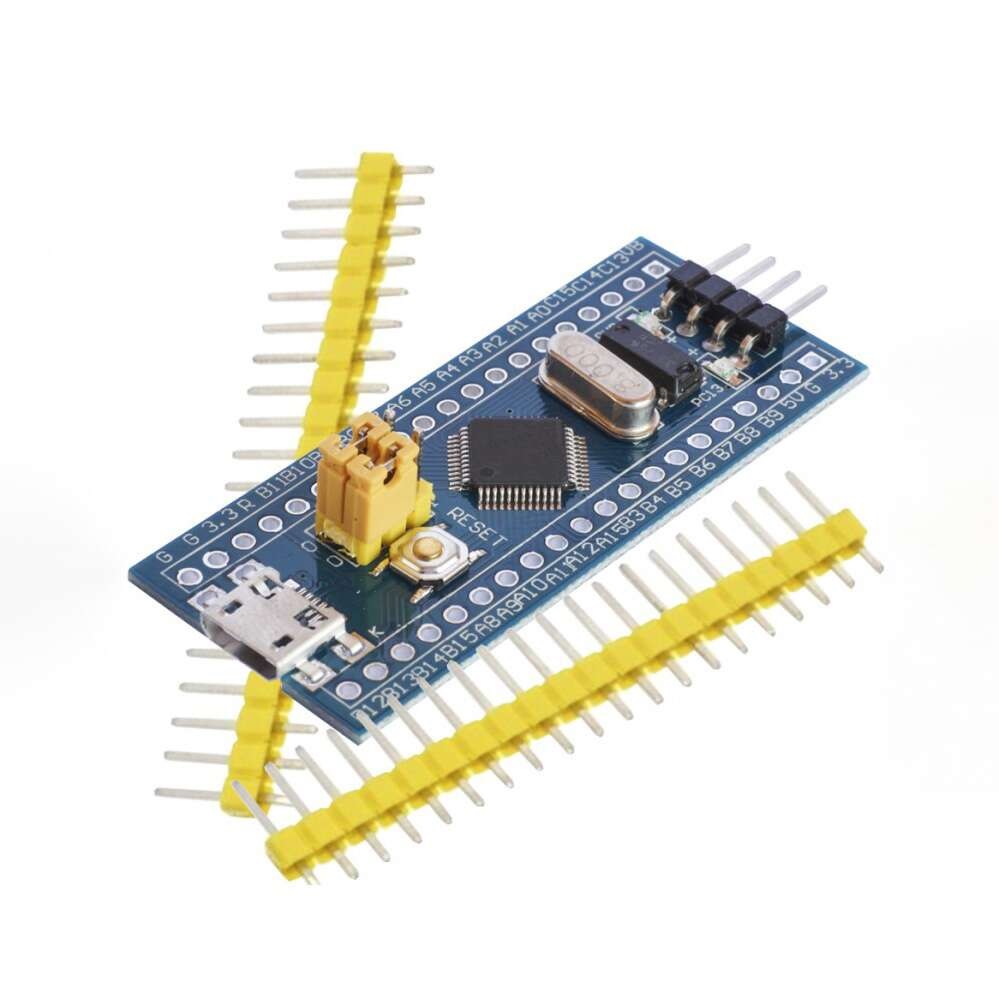

The STM32F103C6T6 Development Board is a versatile platform designed for electronics prototyping and project development. Powered by the STM32F103C6T6 microcontroller, it features 32K Flash memory, 10K RAM, multiple communication interfaces, and GPIO pins with external interrupt capability. Compact and equipped with essential components like crystal oscillators, voltage regulators, and indicators, it suits both beginners and experienced developers.

Package Includes:

  • 1 × STM32F103C8T6 / C6T6 Development Board with unsoldered pins

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Microcontroller: STM32F103C6T6 as the core processing unit.
  • Memory: 32K Flash, 10K RAM for program storage and runtime data.
  • Peripherals: 3 timers (excluding Timer 4), 2 serial ports (excluding Serial Port 3).
  • CPU: ARM® Cortex®-M3 32-bit CPU running up to 72 MHz.
  • Voltage Range: Operates from 2V to 3.6V.
  • Communication Interfaces: I2C, SPI, UART, CAN, USB.
  • GPIO: Pins support external interrupts for efficient event handling.
  • Real-Time Clock (RTC): Built-in for accurate timekeeping.
  • Size: Compact 53mm x 23mm dimensions.
  • Crystal Oscillator: SMD 8 MHz crystal with PLL up to 72 MHz per ST standards.
  • Voltage Regulator: 3.3V regulator with max 800mA output for stable power supply.
  • Mini USB Interface: For power and reserved USB communication.
  • Reset Button: Easily reset and restart the board.
  • SWD Port: Compatible with JLink, STLink, JLINK OB for debugging and programming.
  • BOOT Select Port: Configure boot mode flexibility.
  • IO Extension Header: 20 pins on two connectors for peripheral expansion.
  • Indicators: Power and function LEDs for status verification.
  • Serial Port: Reserved for easy connection with 5V development boards.
  • High-Performance Crystal: Epson 32768Hz crystal for reliable startup.
  • Package Configuration: 10K RAM, 32K ROM, TQFP48 package.

Specifications:

  • Microcontroller: STM32F103C6T6
  • Memory: Flash 32K, RAM 10K
  • Timers: 3 (excluding Timer 4)
  • Serial Ports: 2 (excluding Serial Port 3)
  • CPU: ARM 32-bit Cortex-M3 up to 72 MHz
  • Voltage: 2V to 3.6V
  • Communication: I2C, SPI, UART, CAN, USB
  • GPIO: With external interrupt support
  • RTC: Built-in
  • Size: 53 x 23 mm

Pinout of the Board:

Pin Type Pin Number Pin Function
Power -3.3V, -5V, -GND Working output voltage; USB or external 5V power input; Ground
Analog PA0-PA7, PB0-PB1 10, 12-bit ADC pins
Input/Output PA0-PA15, PB0-PB15, PC13-PC15 37 general purpose I/O pins
External Interrupt PA0-PA15, PB0-PB15, PC13-PC15 Interrupt pins
PWM PA0-PA3, PA6-PA10, PB0-PB1, PB6-PB9 15 Pulse Width Modulation channels
Serial Communication (UART) TX1, RX1, TX2, RX2, TX3, RX3 RTS, CTS USART pins
SPI MISO0, MOSI0, SCK0, MISO1, MOSI1, SCK1, CS0 Serial peripheral interface pins
CAN CAN0TX, CAN0RX Controller Area Network bus pins
I2C SCL1, SCL2, SDA1, SDA2 Inter-IC serial data and clock pins
Built-in LED PC13 LED indication
