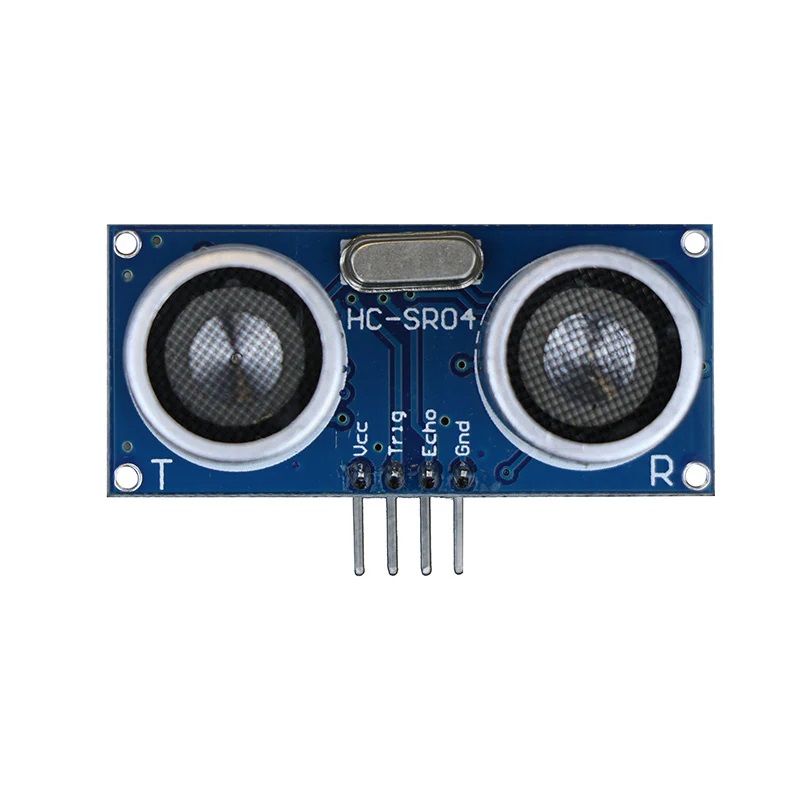

Ultrasonic HC-SR04 Module Distance Sensor New Version 3v-5v

Ultrasonic HC-SR04 Module Distance Sensor New Version 3v-5v

The HC-SR04 Ultrasonic Detector Ranging Sensor is a reliable and cost-effective solution for accurate distance measurement within 2 cm to 400 cm. Using ultrasonic pulse technology, it is perfect for robotics, automation, and proximity sensing applications.

Package Includes:

  • 1 × HC-SR04 Ultrasonic Detector Ranging Sensor (New version 3-5V)

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Operates with a wide voltage range of 3 to 5 volts, compatible with most microcontrollers and embedded systems.
  • Accurate distance measurement from 2 cm up to 400 cm, with a resolution of 0.3 cm.
  • Utilizes ultrasonic pulses; distance is calculated based on the echo return time.
  • Easy integration with four pins: VCC (Power), Trig (Trigger), Echo (Echo), and GND (Ground).
  • Compact and durable design for tight spaces and varied environmental conditions.
  • Simple operation through pulse triggering and echo response measurable by microcontrollers.
  • Flexible power supply supports various electronic projects.

Specifications:

  • Operating Voltage: 3 to 5 V DC
  • Detection Range: 2 cm (min) to 400 cm (max)
  • Resolution: 0.3 cm
  • Operating Principle: Ultrasonic pulse echo time measurement
  • Transducer Frequency: 40 kHz (typical)
  • Trigger Input: Trig pin initiates ultrasonic pulse
  • Echo Output: Echo pin outputs pulse proportional to distance
  • Sensor Interface Pins: VCC, Trig, Echo, GND
  • Response Time: Within a few microseconds
  • Accuracy: High accuracy distance measurement
  • Operating Temperature Range: Suitable for typical indoor environments

Applications:

  • Obstacle detection and avoidance
  • Robotics and automation systems
  • Liquid level measurement
  • Smart home distance measurement projects
  • Various non-contact distance sensing uses
