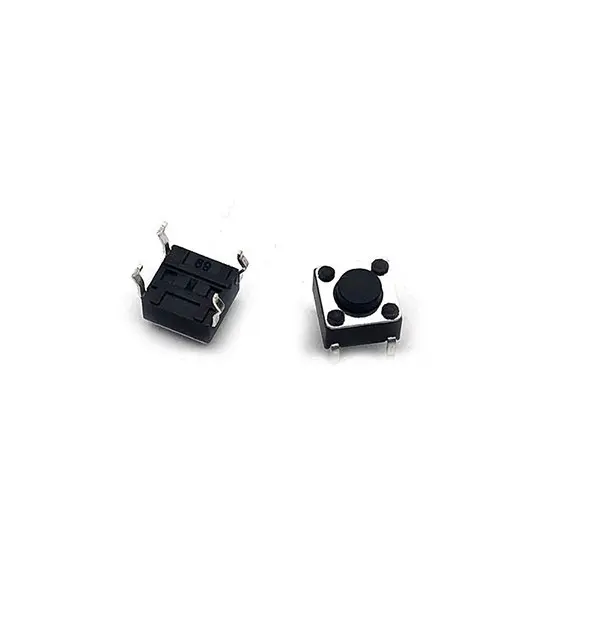

Push Button Tactile Switch 6x6x4.3mm

Push Button Tactile Switch 6x6x4.3mm

The Push Button Tactile Switch is a compact and highly responsive component ideal for momentary contact applications. Measuring just 6x6x4.3mm, it’s perfect for space-limited designs across a variety of electronics, from consumer devices to industrial equipment. This switch offers crisp tactile feedback and high durability, making it a reliable choice for repeated actuation tasks.

Package Includes:

  • 1 × Push Button Tactile Switch (6x6x4.3mm)

1.58 AED 1.58 AED Tax Included
1.58 AED Tax Included

Not Available For Sale

This combination does not exist.

Push Button
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Size: 6x6x4.3mm – Small footprint for compact circuit layouts.
  • Rated Load: DC 12V 0.1A – Suitable for low-voltage applications.
  • Contact Resistance: ≤ 0.03Ω – Ensures strong electrical contact with minimal loss.
  • Insulation Resistance: ≥ 100MΩ – Prevents current leakage and enhances safety.
  • Withstand Voltage: AC 250V (50Hz) / Min – High voltage endurance for added reliability.
  • Actuation Force: 1.3 ± 0.5N – Provides tactile feedback upon pressing.
  • Operating Temperature Range: -25°C to +85°C – Performs well in various environments.
  • Switching Life: 100,000 cycles – Long-lasting performance under repeated use.

Features:

  • Compact and low-profile design.
  • Sharp tactile feedback with every press.
  • Ideal for DIY electronics, Arduino, Raspberry Pi, and embedded systems.
  • Easy to mount on PCBs with through-hole compatibility.

Applications:

  • Consumer electronics (TVs, remote controls)
  • Embedded systems and microcontroller input interfaces
  • Industrial equipment control panels
  • DIY projects and prototyping boards
