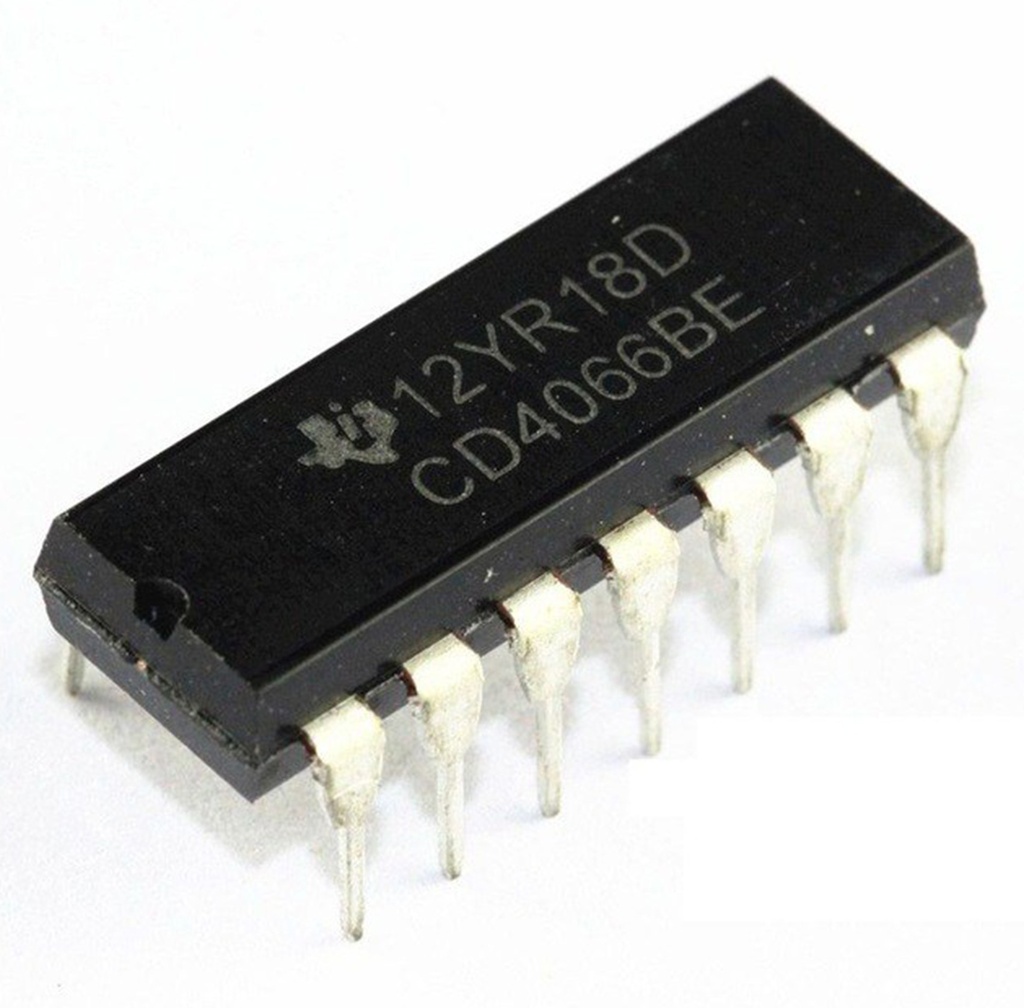

IC CD4066 CMOS Quad Bilateral Switches

IC CD4066 CMOS Quad Bilateral Switches

Part of the CD4000 IC series, the CD4066 is a quad bilateral switch designed for the transmission or multiplexing of analog or digital signals. It maintains pin-for-pin compatibility with CD4016BC and directly interfaces with CMOS, NMOS, and TTL devices. The IC offers a broad working voltage range, providing versatility in various applications.
8.30 AED 8.30 AED Tax Included
8.30 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Wide supply voltage range: 3V to 15V
  • High noise immunity: 0.45 VDD (typ.)
  • Wide range of digital and ±7.5 VPEAK analog switching
  • "ON" resistance for 15V operation: 80Ω
  • Matched "ON" resistance ∆RON = 5Ω (typ.) over 15V signal input
  • "ON" resistance flat over peak-to-peak signal range
  • High "ON"/"OFF" output voltage ratio: 65 dB (typ.) @ 10 kHz, RL = 10 kΩ
  • Extremely high control input impedance: 1012Ω (typ.)
  • Low crosstalk: -50 dB (typ.) between switches @ 0.9 MHz, RL = 1 kΩ
  • Frequency response, switch "ON": 40 MHz (typ.)

Pinout:

Pin Name Description
1, 4, 8, 11 IN/OUT SIG A, B, C, D Input/Output pin for Switch A, B, C, and D
2, 3, 9, 10 OUT/IN SIG A, B, C, D Output/Input pin for Switch A, B, C, and D
7 Vss Ground of the circuit
14 Vdd Voltage Supply
5 CONTROL_B Switch-B Control input
6 CONTROL_C Switch-C Control input
12 CONTROL_D Switch-D Control input
13 CONTROL_A Switch-A Control input

Applications:

  • Switching and multiplexing of Analog and Digital Signals
  • Sample and Hold circuits
  • Signal Gating, Modulators, Demodulators, Choppers, Commutating Switches
  • Dead band filter
  • Logic Implementation of Transmission-Gates
  • Switching of networks
  • Squelch control
  • Conversion of Analog-to-Digital and Digital-to-Analog signals
  • Digital Control of Frequency, Phase Impedance, and Analog-Signal Gain
  • CMOS logic implementation

Download Datasheet: Datasheet Link
