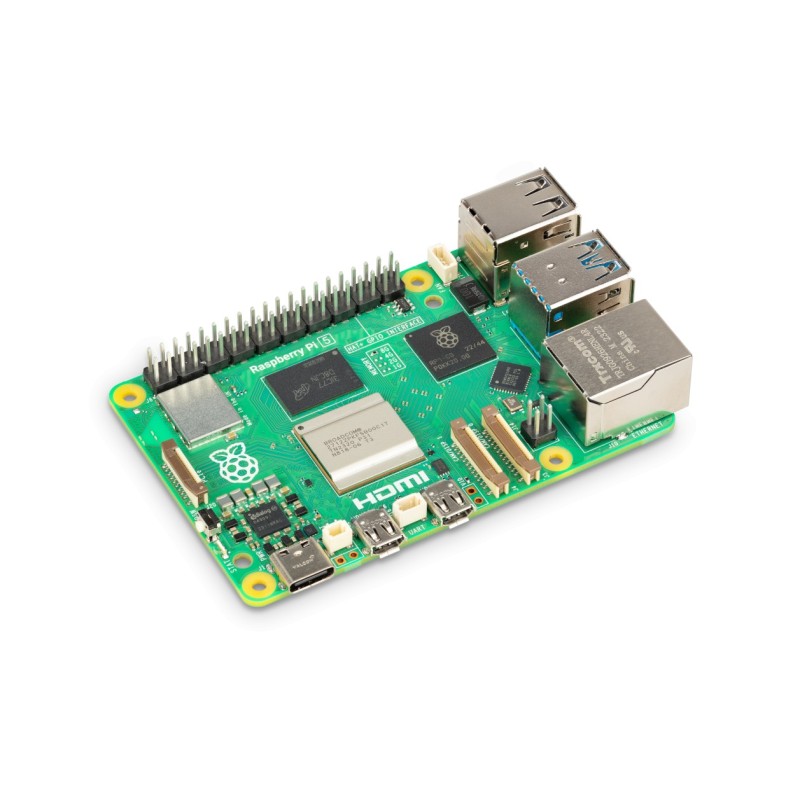

Raspberry Pi 5 (4 GB RAM)
The Raspberry Pi 5 is the latest flagship model in the Raspberry Pi series, succeeding the Raspberry Pi 4. It delivers a 2-3x CPU performance boost, enhanced multimedia capabilities, multiple memory configurations, and improved connectivity. It integrates with the RP1 I/O controller, offering expanded USB 3.0 bandwidth and additional PCIe interfaces for faster data transmission.
Package Includes:
- 1 x Raspberry Pi 5 (4GB RAM)
Features:
- Processor: Broadcom BCM2712 (64-bit Quad-Core Arm Cortex-A76, 2.4GHz, 512KB L2 cache, 2MB L3 cache)
- RAM: 4GB LPDDR4X
- Connectivity:
- Gigabit Ethernet (with PoE support)
- Dual-band 802.11ac Wi-Fi (2.4GHz/5GHz)
- Bluetooth 5.0, BLE
- USB 3.0 x 2 (5Gbps), USB 2.0 x 2
- Micro HDMI x 2 (supports 4Kp60)
- MicroSD card slot
- 40-pin GPIO header
- 2 × 4-lane MIPI DSI/CSI interfaces
- USB Type-C (5V/5A input)
- Power button
- Real-Time Clock (RTC), powered by external battery
- PCIe 2.0 x1 interface
- UART header for debugging
What's On Board:
How to Use:
- Preparation: SD card and card reader
- Download the System: Click here to download
- Format the SD Card: Use
SDFormatter.exe - Program the Image: Use
Win32DiskImager.exe - Start Raspberry Pi 5: Insert the SD card and connect a 5V 5A Type-C adapter
- Connect Peripherals: Attach mouse, keyboard, and display
UART Login:
The Raspberry Pi 5 includes a dedicated UART connector for debugging (up to 921,600bps), configurable via EEPROM. Provides early boot and Linux console access.
UART connector includes 3 pins.
RTC (Real-Time Clock):
- Powered using J5 (BAT) connector with external backup battery
- Runs while powered and retains time when powered off
Software Debug:
- Default RTC device:
/dev/rtc0 - Use
dateto view system time
Hwclock Commands:
sudo hwclock -w: Set hardware clock from system clocksudo hwclock -s: Set system clock from hardware clocksudo hwclock --set --date="9/8/2023 16:45:05": Set RTC time manuallysudo hwclock -r: Read RTC timesudo hwclock --verbose: Show detailed RTC info
Auto Wakeup (Low-Power Mode):
sudo -E rpi-eeprom-config --edit
# Add the following lines:
POWER_OFF_ON_HALT=1
WAKE_ON_GPIO=0
# Test auto wakeup in 10 minutes:
echo +600 | sudo tee /sys/class/rtc/rtc0/wakealarm
sudo halt
RTC Battery Charging Configuration:
# Edit config.txt
sudo nano /boot/firmware/config.txt
# Add:
dtparam=rtc_bbat_vchg=3000000
The value 3000000 (3V) disables charging when voltage exceeds 3V, and enables trickle charge below 3V.
