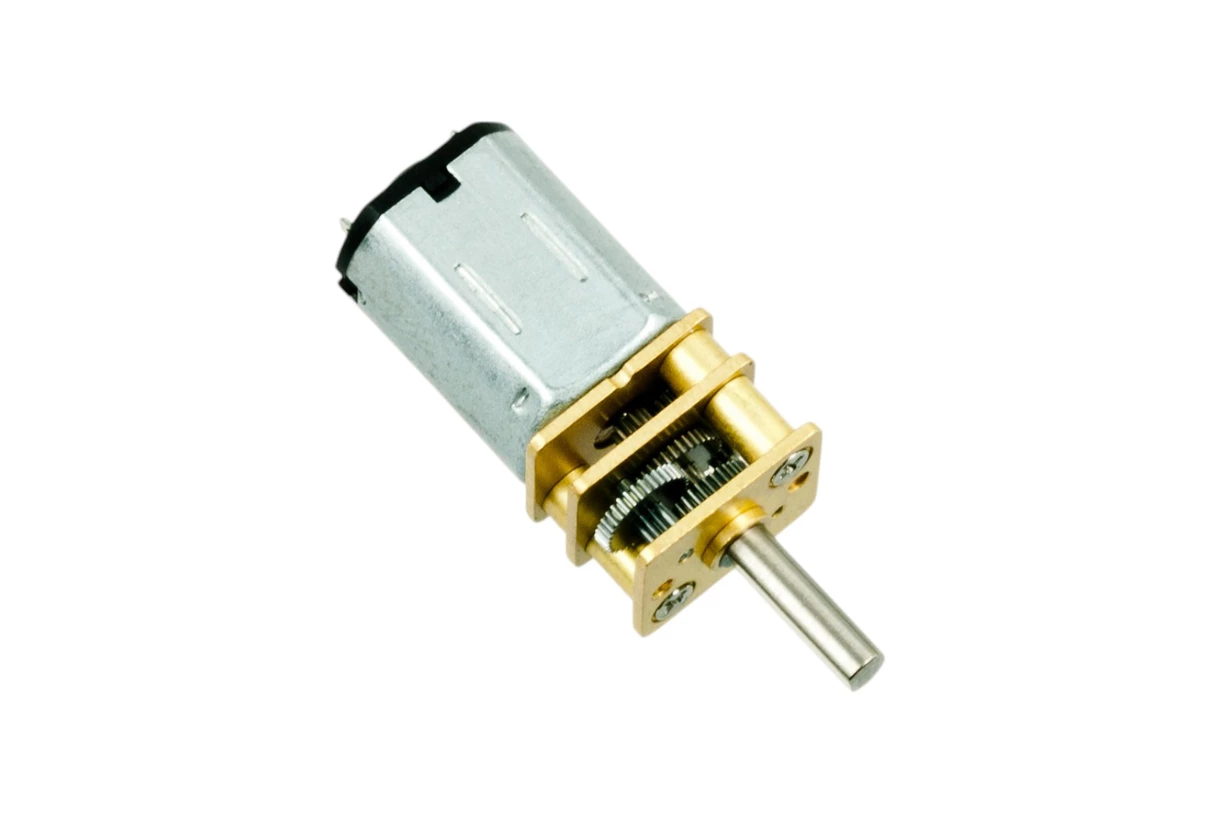

DC Motor Micro Metal Geared 50:1

The Micro Metal Gearmotor features a substantial D-shaped metal output shaft, measuring 0.365 inches (9.27 mm) in length, which perfectly aligns with Pololu's 42x19mm and 32x7mm wheels. The brass faceplate adds durability and refinement to its construction, featuring two meticulously threaded mounting holes suitable for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch). For enhanced security and gear protection, the motor can be seamlessly mounted using the included mounting bracket or extended mounting bracket, purposefully crafted to enclose the exposed gears. The extended mounting bracket is particularly recommended for wheels with recessed hubs, such as the 42x19 mm wheel, ensuring a secure and tailored fit.

Package Includes:

  • Micro Metal Gearmotor x1

39.00 AED 39.00 AED Tax Included
39.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

  • Motor Speed (No Gearbox): Achieves an impressive 13,000 rpm for high-speed applications.
  • Gear Ratio: Boasting a gear ratio of 50:1, this gearmotor combines speed and precision seamlessly.
  • Motor Speed (with Gearbox): Maintains a reliable speed of 400rpm±10%, ensuring consistent performance.
  • Rated Current: Draws a mere 55mA at 6V, showcasing energy efficiency without compromising power.
  • Stall Current: Under heavy loads, the motor draws 350mA at 6V, demonstrating resilience and stability.
  • Stall Torque: Yields a robust 0.39kg*cm of torque at 6V, providing the necessary strength for demanding tasks.





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
