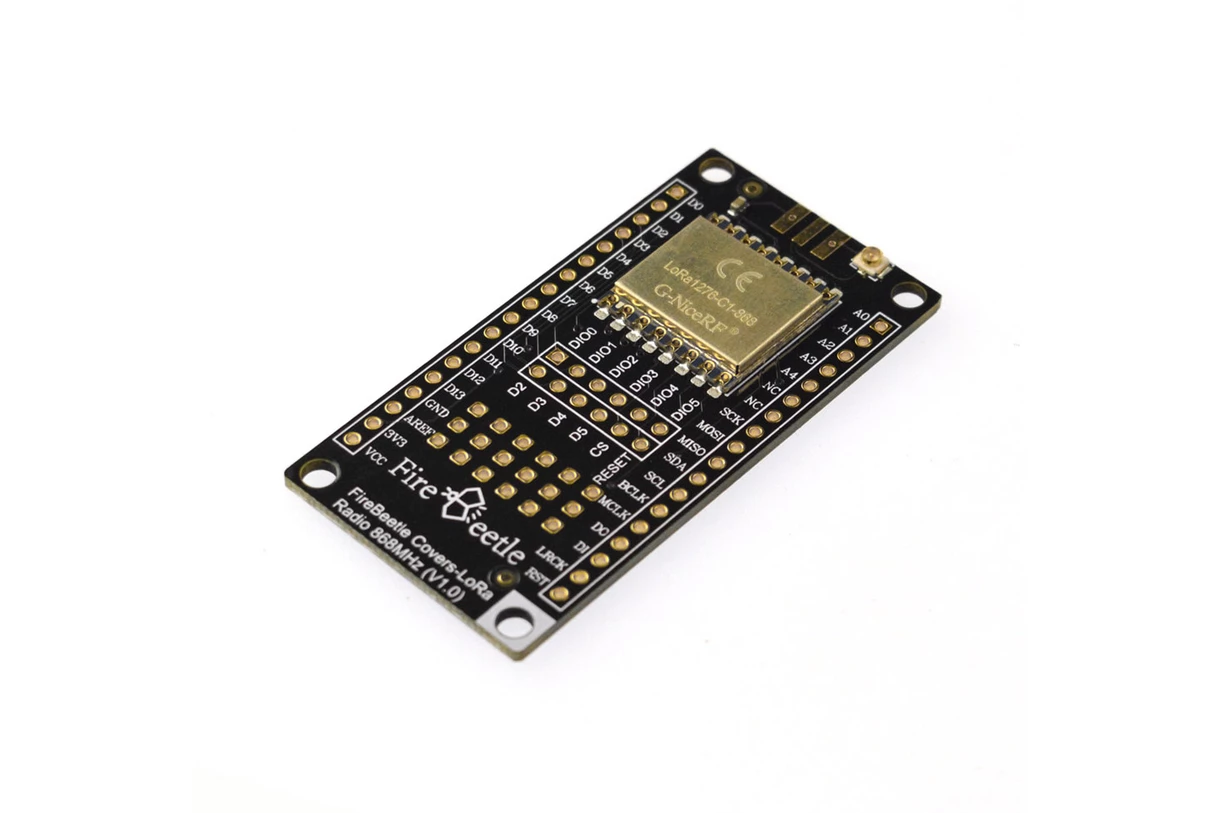

Wireless LoRa Radio 868MHz - FireBeetle Covers
The DFRobot FireBeetle LoRa 868MHz is a microcontroller designed for IoT applications, featuring low power consumption and compatibility with Arduino. It utilizes the SX1276 LoRa chip with a built-in power amplifier for long-range wireless communication. With support for LoRaTM and FSK modulation, it offers flexible transmission options. It is suitable for various applications such as remote home automation, health monitoring, and wearable devices.
Package Includes:
- FireBeetle Covers-LoRa Radio 868MHz (V1.0) x 1
- 18pin-2.54mm Pin Header × 2
- 18pin-2.54mm Long Pin Header × 2
- 868MHz Spring Antenna – IPEX × 1
- SMA-KE Antenna Connector × 1
- 2x6pin-2.54 Double Row Pin Header × 2
Features:
- Low Power Consumption: Operates at an ultra-low circuit current of less than 0.2uA in sleep mode, ideal for battery-powered applications.
- Long-range Communication: Utilizes the LoRa 868MHz frequency band with a maximum transmission distance of 5km for reliable long-distance communication.
- High Performance: Employs the SX1276 LoRa chip with built-in PA gain for enhanced transmission power and receiving sensitivity.
- Flexible Modulation: Supports LoRaTM, FSK, GFSK, and OOK modulation schemes for versatile data transmission.
- Arduino Compatibility: Compatible with Arduino for easy integration into projects and ecosystems.
- Wide Range of Applications: Suitable for IoT applications like remote home automation, health monitoring, and wearable devices.
- Electrostatic Protection: Built-in antenna for electrostatic protection, ensuring reliable operation in challenging environments.
- GPIO Interface: Provides 5 GPIO interfaces usable as interrupts, enhancing system integration flexibility.
- Temperature Range: Operates from -20°C to +70°C, suitable for diverse environments.
Specifications:
- Operating Voltage: 3.3V
- Operating Frequency: 868MHz
- Output Power: ≤20dBm
- Receiving Sensitivity: -139dBm@LoRa
- Emission Current: ≤120mA
- Receiving Current: ≤15mA
- Transmission Power Range: -1dBm ~ 20dBm (Max)
- Transmission Distance: 5km
- Data Transmission Rate: @FSK, 1.2 ~ 300Kbps; @LoRaTM, 0.018 ~ 37.5Kbps
- Maximum RSSI: 127dB
- FIFO Volume: 256 bytes
- Supports CRC Frequency-hopping
- Interface: SPI Interface, 5 GPIO Interfaces
- Operating Temperature: -20℃ ~ +70℃
- Product Dimension: 58 x 29 mm (2.28 x 1.14 inches)
- Mounting Hole Dimension: 3.1mm (inner diameter)
Pinout:
