Temperature Thermocouple MAX6675 Module
The MAX6675 Thermocouple Temperature Module is a precision device designed for accurate temperature measurement using a K-type thermocouple. It communicates via SPI, features on-chip cold junction compensation, and includes disconnection detection for reliable and consistent readings. Ideal for temperature monitoring in industrial and embedded systems.

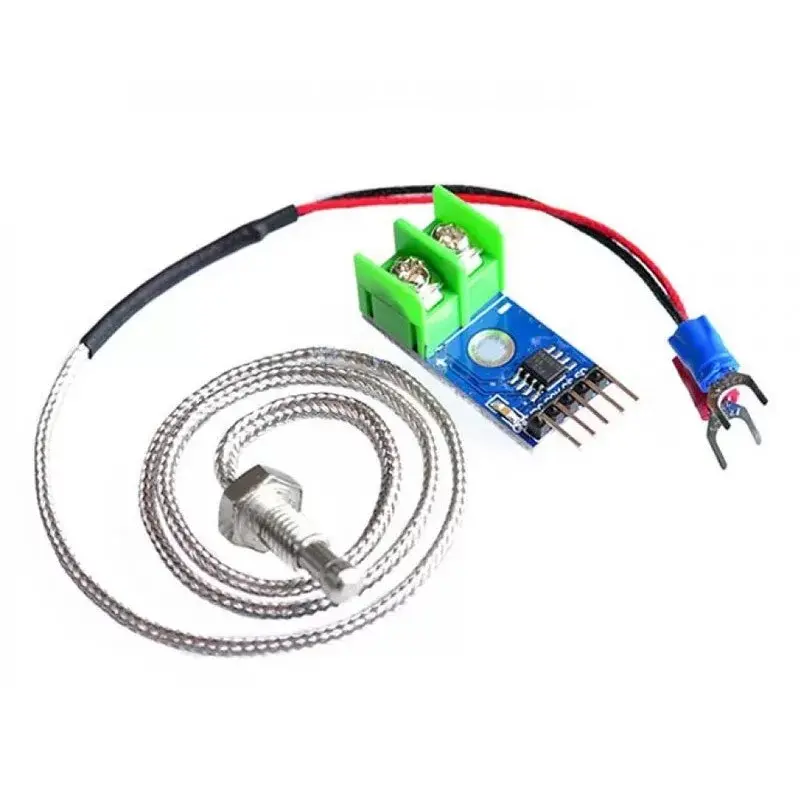

Package Includes:
- 1 × MAX6675 Thermocouple Temperature Module
- 1 × K-Type Thermocouple Wire
Features:
- SPI Serial Communication: Simple SPI interface for digital temperature output.
- Cold Junction Compensation: Ensures accurate readings by adjusting for ambient temperature changes at the junction.
- High Impedance Differential Input: Allows precise and stable readings from the thermocouple.
- Thermocouple Disconnection Detection: Alerts the system when the thermocouple is unplugged or broken.
- Wide Voltage Range: Operates from 3.0V to 5.5V, making it suitable for a variety of microcontrollers.
- Low Power Consumption: Typical working current of 50mA.
- Robust Design: Can withstand up to 2000V ESD, ensuring reliability in static-prone environments.
Specifications:
- Operating Voltage: 3.0V – 5.5V
- Working Current: 50mA
- Temperature Range: -20℃ to 85℃
- ESD Protection: 2000V
- Module Size: 15mm × 25mm
Pinout:
- GND: Ground
- VCC: Power Supply (3–5V)
- SCK: Serial Clock
- CS: Chip Select
- SO: Serial Output (MISO)
Applications:
- Industrial temperature monitoring
- 3D printers and heated beds
- Oven or furnace temperature control
- Environmental data logging
