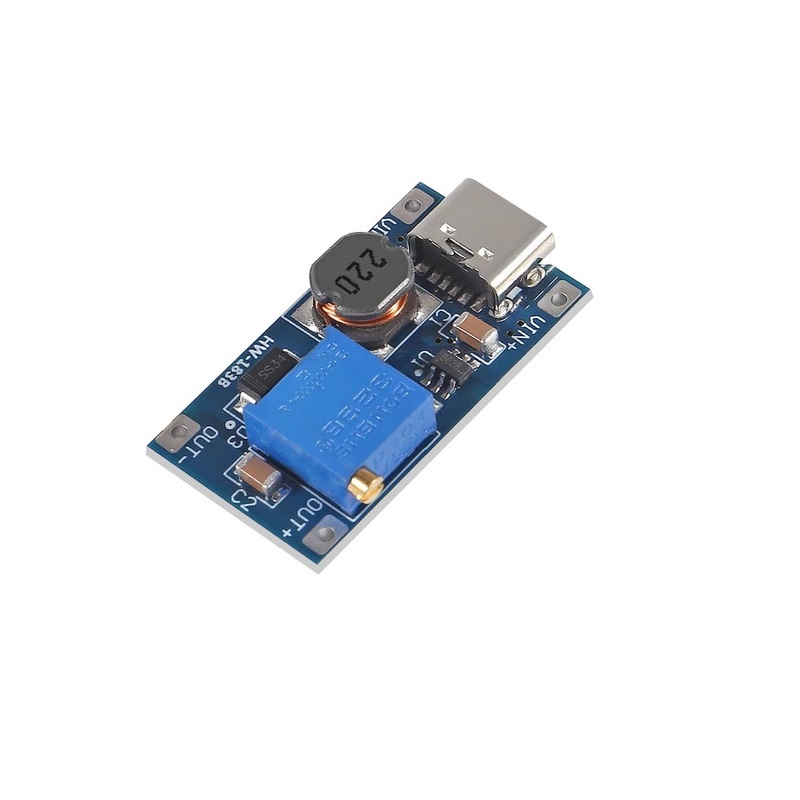

DC-DC Voltage Boost Converter With Type-C USB MT3608
The Type-C MT3608 DC-DC Step Up Boost Converter is a compact and efficient voltage booster module, ideal for DIY electronics and regulated power supply needs. Equipped with a USB Type-C input, it allows flexible connectivity and voltage adjustment for various applications. The MT3608 chip ensures high efficiency and safety through integrated features such as under-voltage lockout, thermal protection, and current limiting.
Package Includes:
- 1 × MT3608 DC-DC Boost Converter Module with Type-C USB Connector
Specifications:
- Maximum Output Current: 2A
- Input Voltage: 2V – 15V
- Maximum Output Voltage: 5V – 28V
- Efficiency: > 93%
- Dimensions: 30 × 17 × 6 mm (L × W × H)
Applications:
- Storage batteries
- Power transformers
- Adjustable regulated power supplies
- Industrial equipment
- DIY electronics and embedded systems
Module Usage:
- Input Voltage Range: 2V to 24V DC
- Output Voltage Range: 5V to 28V DC
- Adjustability:
- Adjust the output voltage by turning the onboard potentiometer.
- Note: The output voltage can be higher than the input voltage.
Attention:
- Do not exceed the module's maximum input voltage.
- Ensure that the output peak current does not exceed the rated 2A limit.
Image:
