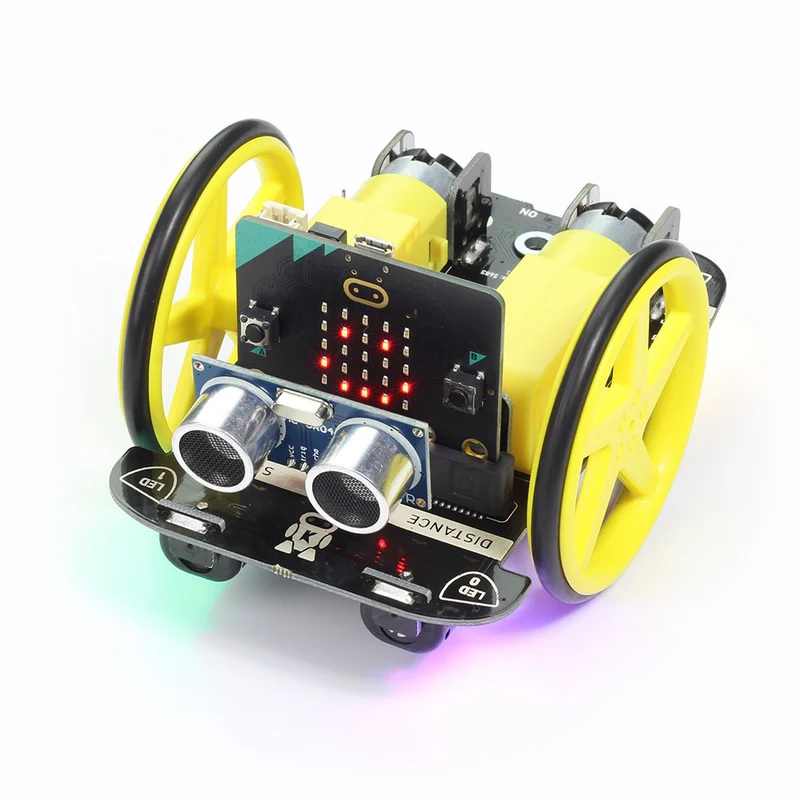

Robot - Kitronik :MoVE Motor for the BBC Micro:bit
The Kitronik: MOVE Motor is a comprehensive robotics kit designed to provide an engaging introduction to buggy robotics and coding. This versatile platform allows users to explore movement, light, sound, obstacle detection, avoidance, and line-following. Combined with the BBC micro's radio features, it offers vast possibilities for projects and learning. The buggy features two bi-directional DC motors, rubber-tired wheels, sensors, and LEDs, designed for easy assembly and use. Simply slot the BBC micro into the edge connector to start coding and experimenting.
Package Includes
- 1 x MOVE Motor chassis
- 2 x Wheels and tires
Features
- Fun Introduction to Robotics: Perfect for learning buggy robotics basics and coding with hands-on experience.
- Tutorials and Resources: Comes with comprehensive tutorials and freely accessible resources.
- No Soldering Required: Easy and quick assembly without soldering.
- Dual DC Motors: Two bi-directional DC motors with variable speed control for precise movement.
- Advanced Sensors: Ultrasonic distance sensors and line-following sensors for obstacle detection and navigation.
- Additional Components: Piezo sounder, pen mount, and four full-color programmable ZIP LEDs.
- Versatile Outputs: Two-pin outputs for servo connections or other I/O.
- Integrated Battery Holder: Holds 4x AA batteries, with power switch to conserve battery life.
- Edge Connector: Onboard connector for BBC micro for easy plug and play.
- Custom MakeCode Blocks: Simplified coding with custom blocks in Microsoft MakeCode editor.
- Python Coding: Option to code in Python with example code available on GitHub.
Specifications
- Dimensions: Length: 111mm; Width: 90mm (with wheels); Height: 67mm
- Voltage: Nominal 4.8 - 6V (4x AA batteries)
- Motors: Controlled via I2C on pins 19 and 20
- Audio Buzzer: Connected to pin 0
- Visual: 4x ZIP LEDs on pin 8
- Line Follow: IR sensors on pins 1 (right) and 2 (left)
- Ultrasonic Sensors: Trigger on pin 13, Echo on pin 14
- Servo Connections: Pins 15 and 16
Applications
- Educational projects for teaching robotics and coding
- DIY robotics for hobbyists and makers
- Interactive learning of sensors, motor control, and robotics principles
Documents
Note
- This kit does not include a micro:bit
- No soldering required
- Minimal assembly needed
Requires
- 1 x BBC micro
- 1 x USB Type-A to Micro-B USB Noodle Cable
- 4 x AA batteries
