Kitronik :GAME Controller for micro:bit

Kitronik :GAME Controller for micro:bit

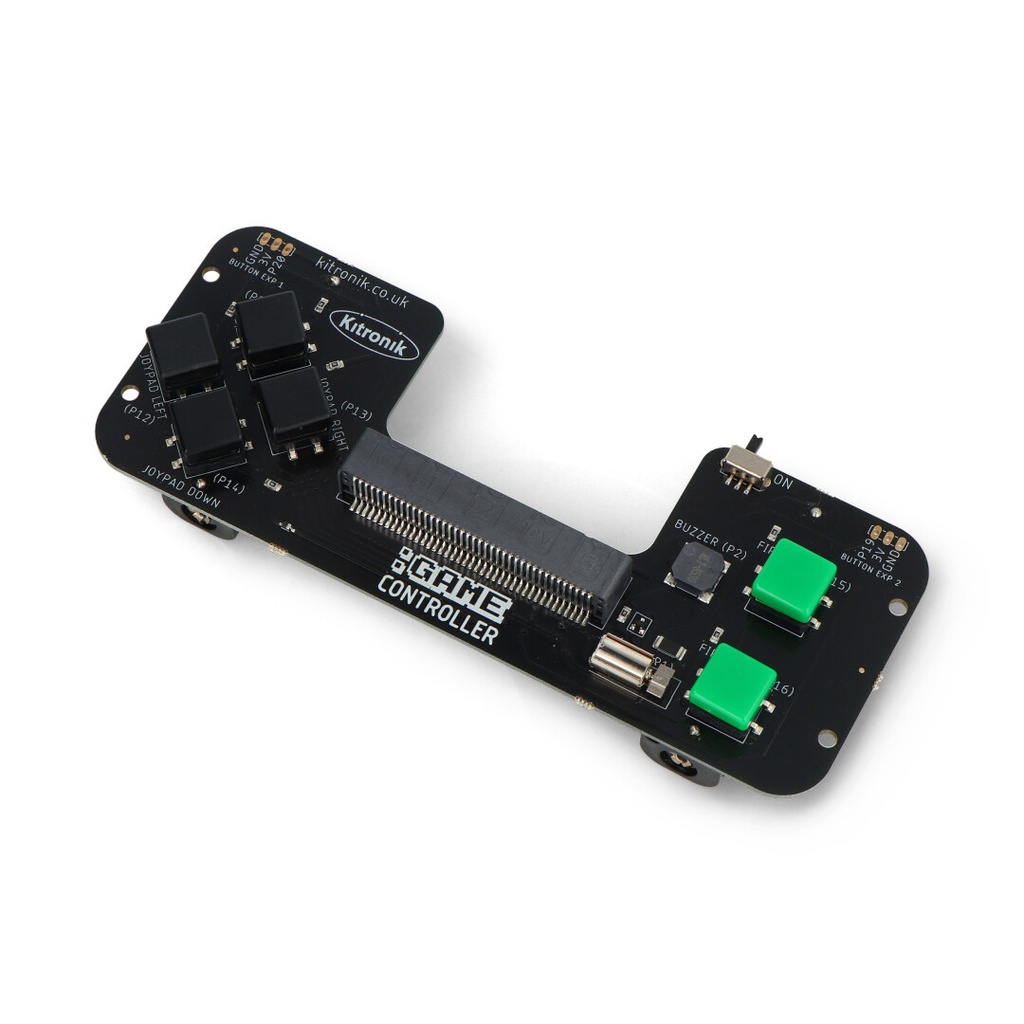

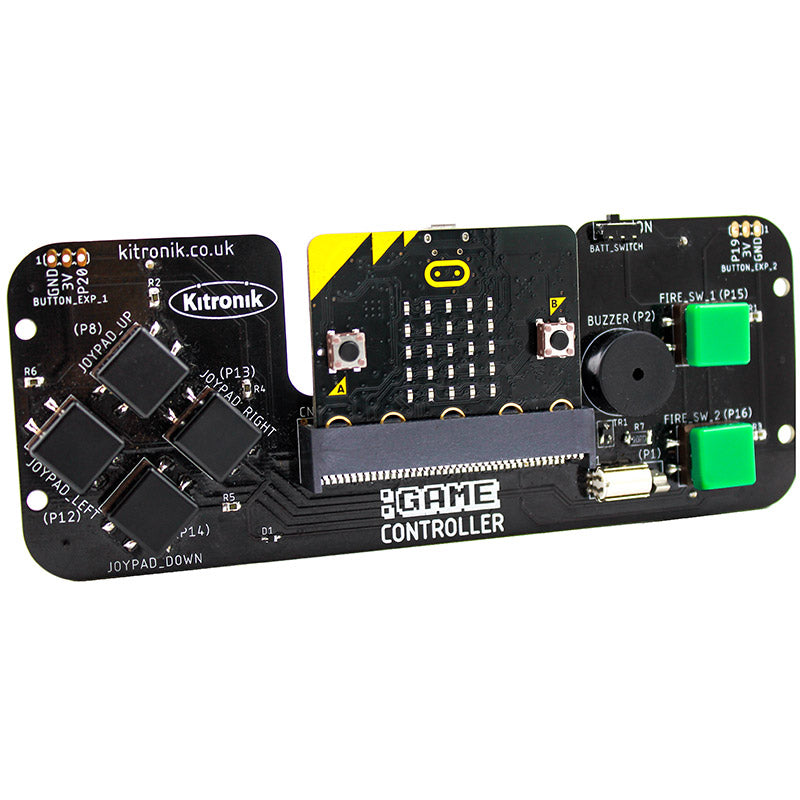

The Kitronik Controller for the BBC micro is a retro-style gamepad designed to enhance gaming and control other devices via micro radio. It features programmable buttons, onboard sound, haptic feedback, and breakout points for additional buttons. Powered by two AA batteries, the micro connects directly to the controller via an edge connector. Its compact and ergonomic design makes it ideal for educational projects and interactive gaming experiences.

Package Includes

  • 1 x Controller for the BBC micro

Note

  • The BBC micro is NOT included.
  • Using the external breakouts for pins 19 and 20 as GPIOs may cause issues with the I2C devices on the micro (e.g., compass and accelerometer).

89.00 AED 89.00 AED Tax Included
89.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features

  • Hand-held Gaming Solution: Enhances the gaming experience with the BBC micro.
  • Fully Programmable: Includes directional buttons, fire buttons, onboard sound, and haptic feedback.
  • Expandable: Breakout pads available for adding shoulder buttons.
  • Ergonomic Design: Comfortable to hold and use during gameplay.
  • Versatile Use: Can control other devices such as robots and buggies via micro radio.
  • Custom Code Blocks: Available for the MakeCode Editor as an extension.
  • Power Switch: Easy power management and reset functionality.

Specifications

  • Operating Voltage (Vcc): 3V (2 x AA Batteries)
  • Max Current: 220mA (all onboard devices and BBC micro in use)
  • External Channels: 2 x I2C/IO pins (each IO pin rated at 3.3V at 5mA)

Applications

  • Gaming: Enhances the micro gaming experience with a gamepad interface.
  • Educational Projects: Ideal for learning programming and electronics interactively.
  • Control Devices: Perfect for controlling robots, buggies, and other projects using the micro.

Dimensions

  • Length: 155mm
  • Width: 60mm
  • Center Width: 30.5mm





 Kitronik Controller for the BBC micro
