Mux Breakout - 8 Channel TCA9548A (SparkFun Qwiic )

Mux Breakout - 8 Channel TCA9548A (SparkFun Qwiic )

The SparkFun Qwiic Mux Breakout conquers a common I2C roadblock: conflicting device addresses. This multiplexer acts as a bridge, allowing up to 8 I2C devices with identical addresses to coexist on a single bus. With 8 configurable addresses, it effectively creates virtual I2C lanes for each device. Universally compatible with both I2C and SMBus protocols, it integrates seamlessly with a wide range of sensors and I2C modules. The Qwiic Mux also offers voltage translation for different power levels and hot-swapping for convenient device insertion/removal, making it a powerful tool for complex sensor networks or projects requiring expanded I2C connectivity.

Package Includes:

  • 1x SparkFun Qwiic Mux Breakout

75.00 AED 75.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days





Features:

  • Bidirectional Translating Switches: Facilitates communication between multiple I2C devices.
  • Configurable Addresses: Offers eight jumper-selectable addresses for customization.
  • I2C Compatibility: Supports I2C bus and SMBus for wide device compatibility.
  • Active-Low Reset Input: Allows resetting of the device via a dedicated input.
  • Voltage-Level Translation: Enables voltage translation between 1.8V and 5V buses.
  • Hot Insertion Support: Supports hot insertion of devices without affecting functionality.
  • Low Standby Current: Ensures energy efficiency during standby mode.
  • Wide Operating Voltage Range: Operates between 1.65V and 5.5V.
  • ESD Protection: Provides robust protection against electrostatic discharge.
  • Temperature Range: -40°C to 85°C for reliable operation in various environments.

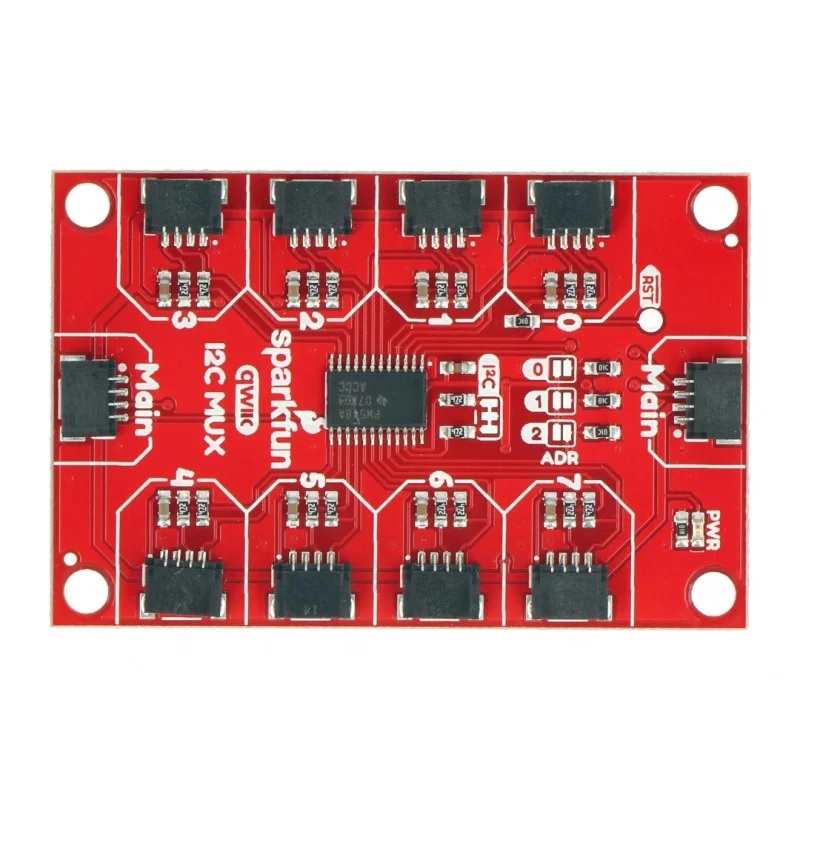

SparkFun Qwiic Mux Breakout - 8 Channel (TCA9548A)

Specifications:

  • Operating Voltage: 1.65V - 5.5V
  • Operating Temperature: -40°C to 85°C
  • I2C Address: 0x70 (default), configurable up to 0x77
  • Connectors: 10x Qwiic connectors, 2x pass-through connectors (daisy chain)
  • Channels: 8x bidirectional translating switches

Pinout:

  • I2C Interface: Standard I2C protocol (SCL, SDA) for communication with microcontroller.
  • Qwiic Connectors:
    • 10 connectors (5 per side) for daisy-chaining multiple I2C devices.
    • Yellow: SCL
    • Blue: SDA
    • Red: 3.3V
    • Black: Ground
  • Pass-Through: 2 connectors for daisy-chaining multiple Qwiic Mux modules.

Applications:

  • Sensor networks: Manage and communicate with multiple sensors on a single I2C bus.
  • I2C device expansion: Connect more devices than a microcontroller can natively support.
  • Prototyping: Quickly test and integrate multiple I2C devices during development.

Dimensions:

SparkFun Qwiic Mux Breakout Dimensions
