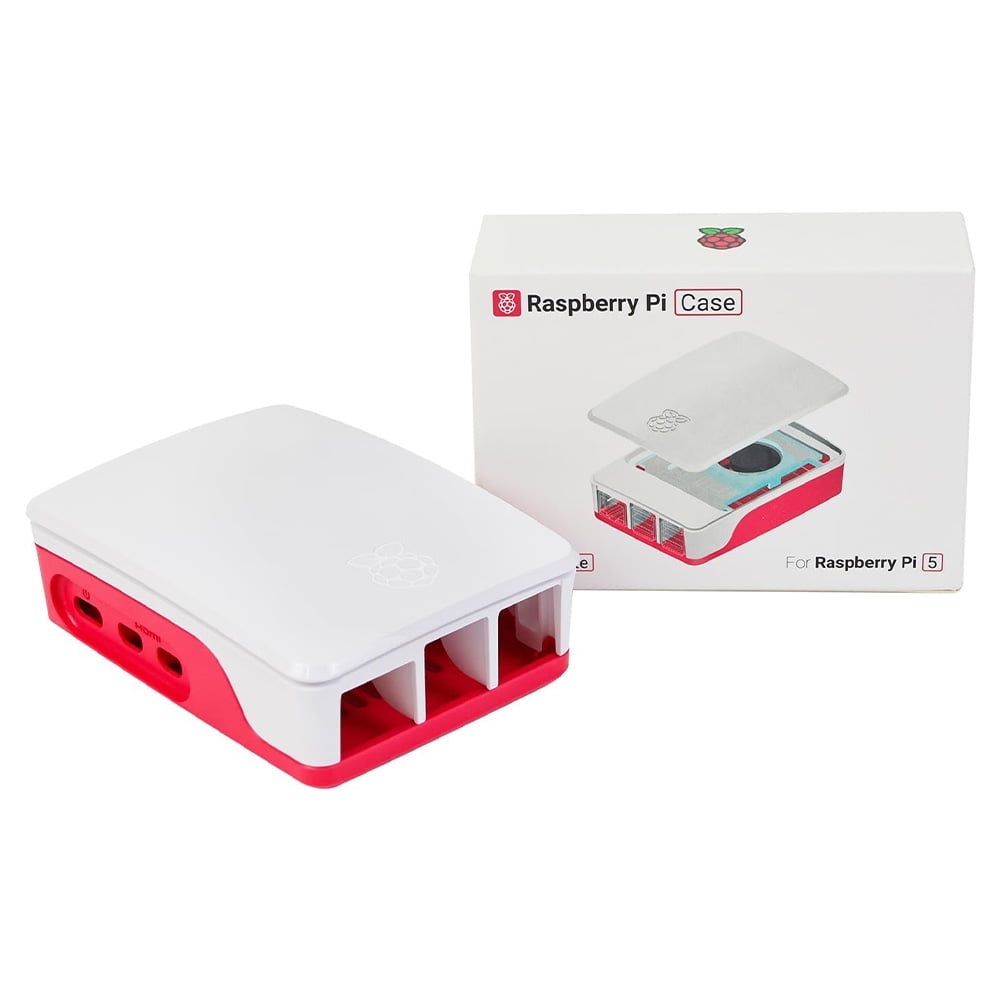

Raspberry Pi 5 Official Case Enclosure - Red/White

Raspberry Pi 5 Official Case Enclosure - Red/White

The Raspberry Pi 5 case is an enhanced version of the Raspberry Pi 4 case, featuring improved thermal management to accommodate the higher peak power consumption of the Raspberry Pi 5. It comes equipped with a variable-speed fan powered and controlled from a dedicated connector on the Raspberry Pi 5 PCB, ensuring optimal cooling performance. The case is designed to provide a seamless fit for the Raspberry Pi 5 while offering enhanced airflow and heat dissipation capabilities.

Package Includes:

  • 1 x Official Raspberry Pi 5 Case (Red & White)
  • 1 x Top Cover (White)
  • 1 x Centre Cover with Integrated Variable-Speed Fan (Transparent)
  • 1 x Base (Red)
  • 4 x Rubber Bumpers (Footers)
  • 1 x Adhesive Heatsink (for CPU)

RPi 5 Case
79.00 AED 79.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Integrated Variable-Speed Fan: The case incorporates a variable-speed fan controlled directly from the Raspberry Pi 5 PCB, ensuring efficient cooling during operation.
  • Easy Assembly: A four-part ABS plastic enclosure clips together effortlessly, requiring no screws or nuts for assembly.
  • Quiet and Durable Fan: The axial fan features dimensions of 30mm × 30mm × 7.5mm and operates quietly with an FDB bearing for low noise and increased longevity.
  • Optimized Airflow: Capable of delivering up to 1.4CFM of airflow over the processor, RAM, and power management IC, ensuring effective heat dissipation.
  • PWM Controllable Fan: The fan speed is PWM controllable from Raspberry Pi OS, allowing for customizable cooling performance based on system requirements.
  • Additional Heatsink: Comes with an adhesive heatsink for the CPU chip, further enhancing heat dissipation capabilities.
  • No Python Code Required: Works out of the box with Raspberry Pi OS without the need for Python code installation, simplifying setup and configuration.
  • Official Raspberry Pi Design: Designed by the Raspberry Pi team, ensuring compatibility and quality assurance.

Specifications:

  • Axial Fan Spec:
    • Dimensions: 30mm × 30mm × 7.5mm
    • Four Wires: Power, Ground, PWM, and Tachometer
    • Max Fan Speed: 8000 RPM
    • Max Airflow: Approx. 2.79 CFM
  • Case Spec:
    • Material: ABS Plastic
    • Enclosure: Four-part design (Top, Centre, Base)
    • Accessories: Includes dedicated heatsink, silicone feet, and adhesive heatsink for CPU
