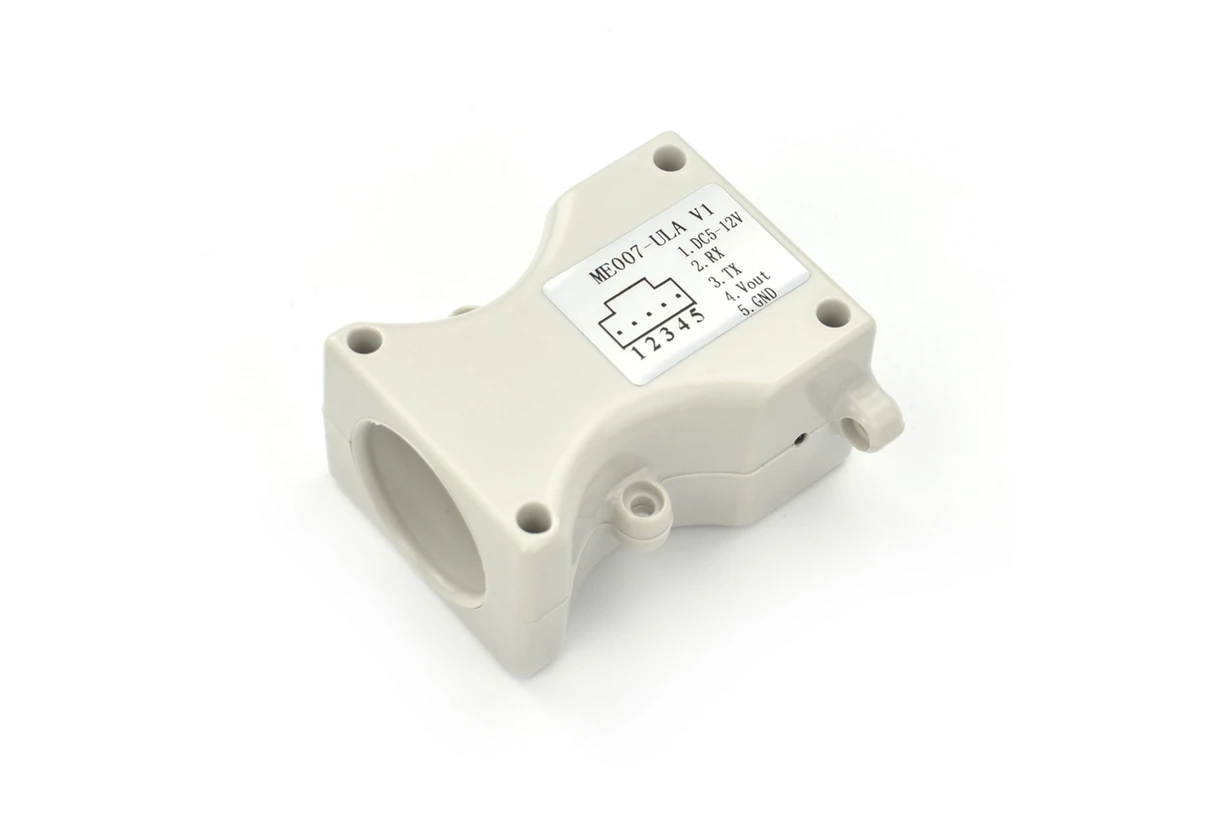

Ultrasonic Distance Waterproof Sensor (27~800cm, ULA)
This ultrasonic distance sensor features a waterproof probe and operates based on echo-ranging principles, accurately measuring distances without physical contact. Its bell-mouth shell enhances ultrasound directivity and stability. The sensor offers RS232 and voltage analog output modes, switchable via a button. Notably, its default detection starting point differs from traditional methods, requiring adjustment for accurate readings.
Package Includes:
- Water-proof Ultrasonic Sensor (ULA) x1
- Screw bag x1
- Connector x1
Features:
- High Degree of Protection: The enclosed waterproof probe ensures durability in various environments.
- Wide Power Supply Range, Low Power Consumption: Compatible with 5V to 12V supply voltage, with efficient power usage.
- High Measuring Accuracy and Resolution: Provides precise distance measurements with a resolution of 1mm.
- High-Precision Temperature Output and Compensation: Includes temperature output and compensation function for accurate readings in varying temperatures.
- Great Output Compatibility: Offers both RS232 and voltage analog output modes for versatile integration into different systems.
Specifications:
- Operating Voltage: 5~12V（DC）
- Average Current: <10mA
- Effective Detecting Distance:
- 27~800cm (RS232)
- 27~330cm (Voltage Analog)
- Output Mode:
- RS232: With temperature compensation and temperature output, automatically detects distance with a 500ms working period or by external signal; outputs RS232 level serial data. Working period must be > 60ms.
- Voltage Analog: With temperature compensation; automatically detects distance with 500ms period, outputs corresponding voltage according to distance.
- Probe Frequency: 40K±1.0K Hz
- Measurement Accuracy:
- RS232: ±(1+S×0.3%) cm
- Voltage Analog: ±(1+S×0.3%) cm
- Operating Temperature: -15~60℃
- Storage Temperature: -25~80℃
- Operating Humidity: RH<80%
- Storage Humidity: RH<90%
- Measurement Period: <60ms
- Dimensions: 60 x 43.2 x 31.4 mm (2.36 x 1.70 x 1.24 inches)
Pinout:
| Num | Pin | Description |
|---|---|---|
| 1 | VCC | 5V~12V Power input |
| 2 | RX | Receive serial data under RS232 mode |
| 3 | TX | Output serial data under RS232 mode |
| 4 | Vout | Output Voltage under voltage analog mode |
| 5 | GND | Ground |
Beam Directionality:
Dimension Diagram:
