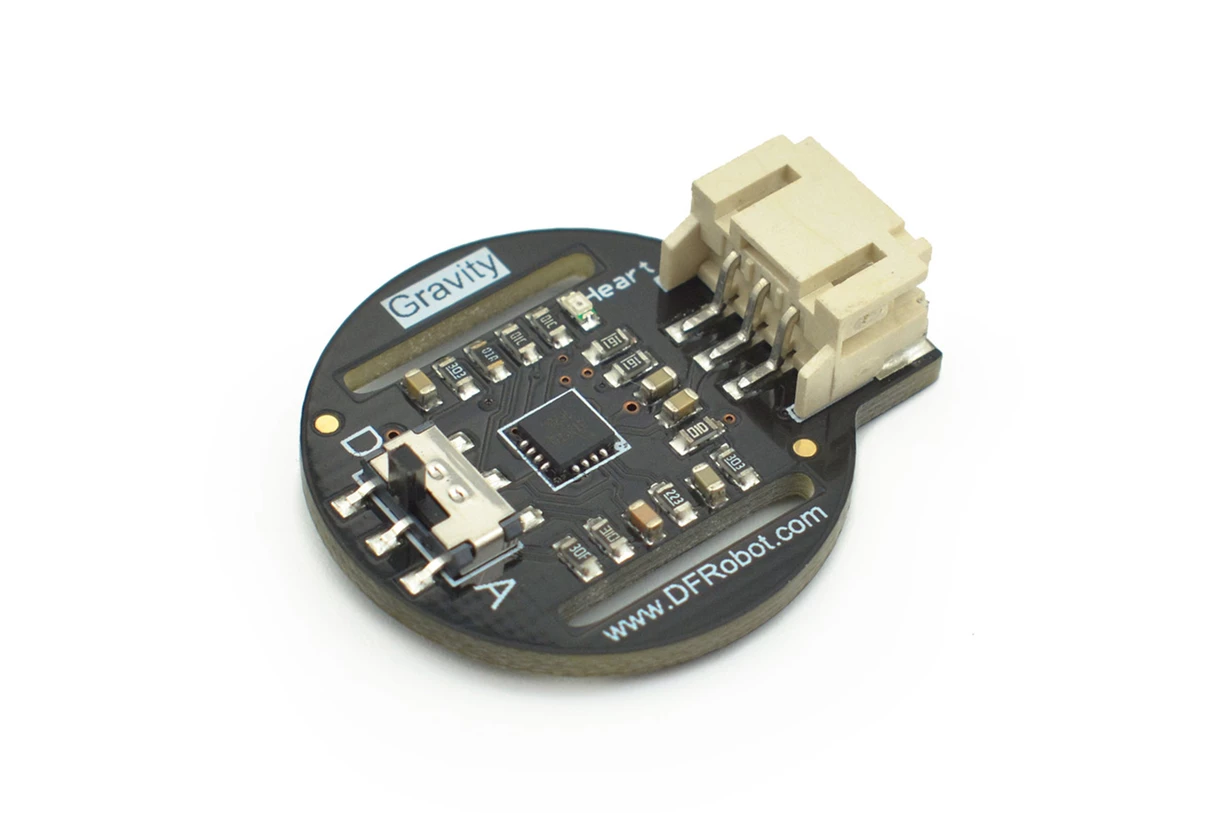

Heart PPG Rate Monitor Sensor (Analog/Digital Gravity: DFRobot) - SEN0203

Heart PPG Rate Monitor Sensor (Analog/Digital Gravity: DFRobot) - SEN0203

The DFRobot heart rate sensor is a compact pulse monitor designed for Arduino microcontrollers, utilizing PPG (photoplethysmography) techniques to detect blood volume changes in tissues. It features two attachment holes for easy mounting on belts or other body parts like fingers, wrists, or earlobes. The sensor employs a Gravity Interface for plug-and-play functionality, with compatibility extended to Raspberry Pi, Intel Edison, Joule, and Curie using a 3.3V input voltage.

Note: This sensor is not a medical device and should not be used for diagnosing or treating medical conditions. For accurate readings, the user must remain stationary during measurement.

Package Includes:

  • Heart Rate Monitor Sensor For Arduino x1
  • Wrist belt x1
  • PH2.0-3P cable x1

99.50 AED 99.50 AED Tax Included
99.50 AED Tax Included

Not Available For Sale

This combination does not exist.

PPG Heart Rate Sensor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  1. Compact design for Arduino microcontrollers.
  2. Utilizes PPG techniques for pulse monitoring.
  3. Can be attached to belts, fingers, wrists, or earlobes.
  4. Supports plug-and-play functionality with a Gravity Interface.
  5. Compatible with Raspberry Pi, Intel Edison, Joule, and Curie using 3.3V input voltage.

Specifications:

  • Input Voltage (Vin): 3.3 - 6V (5V recommended)
  • Output Voltage: 0 - Vin (Analog), 0 / Vin (Digital)
  • Operating Current: <10mA
  • Dimension: 28 x 24 mm / 1.102" x 0.945"
  • Interface Type: PH2.0-3P

Example Project:

IoT Based Heart Rate Monitoring System: A basic project that sends the pulse rate to the Blynk Application for remote monitoring.

DFRobot Heart Rate Sensor Arduino Heart Rate Sensor Connection

Pinout:

Heart Rate Monitor Sensor Pinout

Documents:
