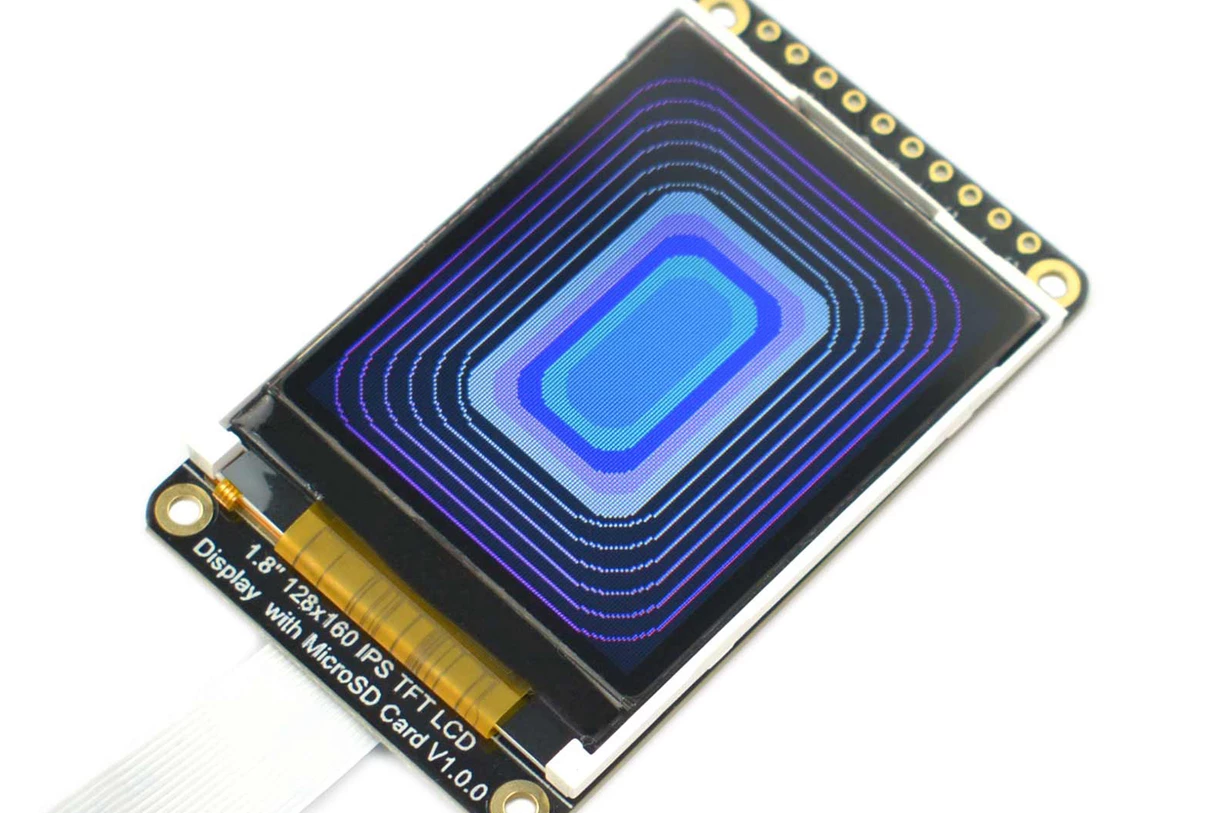

Features:
- High Resolution: Boasting a 128x160 resolution, the display ensures crisp and clear visuals for detailed information.
- Enhanced Connectivity: With SPI (4-wire) communication and an integrated SD card slot, the module enables seamless data transfer and storage capabilities, retrieving full-color bitmaps directly from the SD card.
- Flexible Wiring Options: The display offers two wiring methods - pin header wiring and GDI (General Display Interface), providing users with versatile connectivity options to suit their project requirements.
- Easy Integration: Designed for plug-and-play functionality, the display can be effortlessly connected to a FireBeetle main controller using an FPC cable, streamlining the integration process.
- Superior Display Performance: Featuring a low refresh rate, the display delivers exceptional display performance with vivid colors and sharp image quality, ensuring an optimal viewing experience.
- Wide Range of Applications: With its strong versatility, the display module is suitable for various applications including sensor monitoring and alarms, Arduino temperature monitoring, fan control systems, and more.
Specifications:
- Operating Voltage: 3.3 V - 5 V
- TFT Viewing Angle: 120 degrees
- Pixels: 128 columns x 160 rows
- Communication: SPI
- Interface Mode: GDI, pin header
- Driver Chip: ST7735S
- Full-screen Power Consumption: 0.11 W
- MicroSD Slot: 1
- Operating Temperature: -10℃ to +60℃
- Display Area: 26 mm x 35 mm / 1.02 x 1.38"
- Module Dimension: 34 mm x 55 mm / 1.34 x 2.17"
- Mounting Hole Pitch: 29 mm / 1.14", 50 mm / 1.97"
- Mounting Hole Size: 2 mm / 0.08"
Pinout:
| Num | Label | Description |
|---|---|---|
| 1 | VCC | Power |
| 2 | GND | Ground |
| 3 | SCLK | Clock signal |
| 4 | MOSI | Receiving data |
| 5 | MISO | Transmitting data |
| 6 | CS | Screen Chip-select |
| 7 | RES | Reset |
| 8 | DC | Data/Command |
| 9 | BLK | Backlight |
| 10 | SDCS | SD card chip-select |
Applications:
- Sensor monitoring and alarm systems
- Arduino temperature monitoring
- Fan control systems
- Industrial automation
- Portable electronic devices
Connect Diagram:
Examples of what you can do with this display:
Documents:
