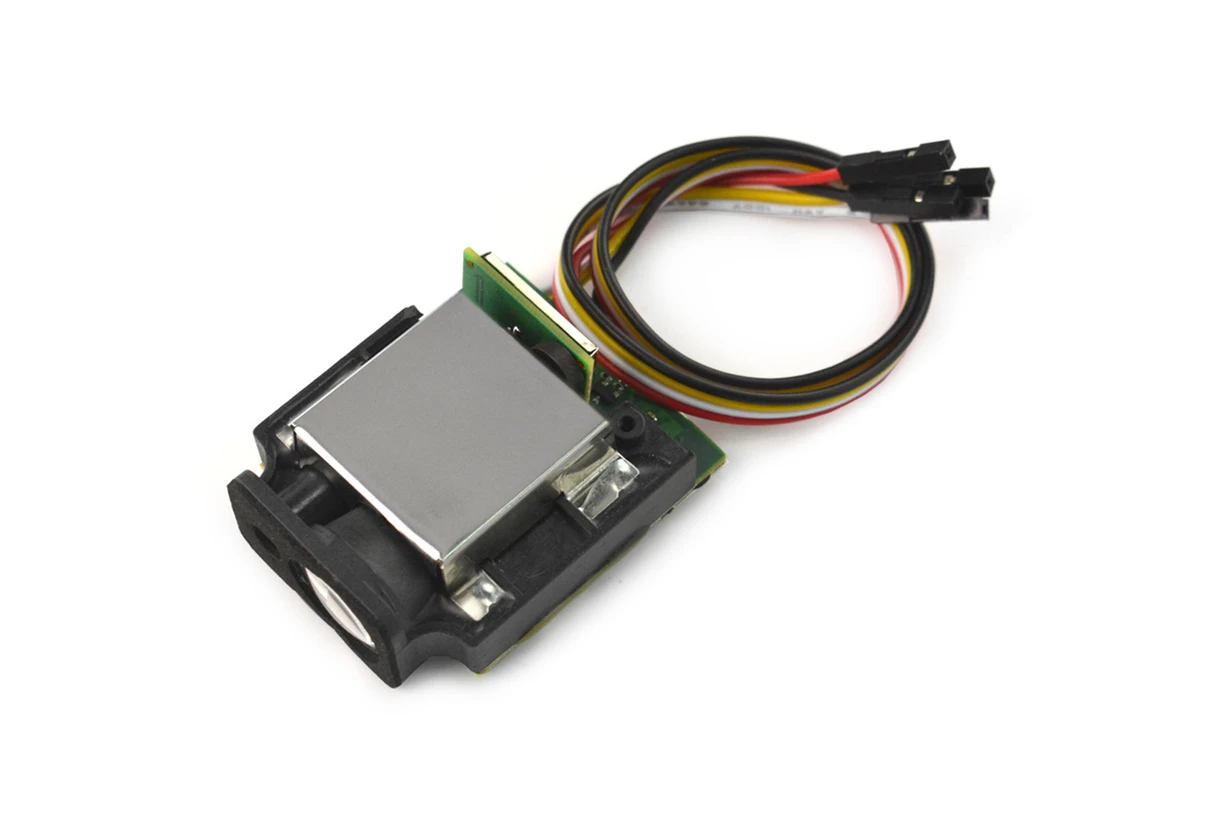

Distance Infrared Laser Sensor 50m/80m (DFRobot) - SEN0366
The IR laser distance sensor is a cost-effective solution offering high accuracy, long-distance detection, a visible IR laser, and a small field of view (FOV). It provides measuring ranges of 0.05 ~ 80m indoors and 0.05 ~ 50m outdoors, making it versatile for various applications such as UAV automatic landing, electronic scale, and barn material level monitoring. With serial port output, it's compatible with controller boards like Arduino. Its visible infrared laser and small FOV facilitate precise measurements even on small objects within the specified range.
Package Includes:
- Infrared Laser Distance Sensor (50m/80m) ×1
- USB to TTL Converter ×1
Features:
- High Accuracy: Ensures precise measurements with a standard deviation of ±1.0mm.
- Small Size: Compact design for easy integration into various projects.
- Long-Distance Measurement: Offers measuring ranges of 0.05 ~ 50m outdoors and 0.05 ~ 80m indoors.
Specifications:
- Power Supply: DC 3.3V~5V
- Measuring Range: 0.05 ~ 50m (outdoor), 0.05 ~ 80m (indoor)
- Accuracy (Standard Deviation): ±1.0mm
- Laser Type: 620~690nm
- Laser Class: Ⅱ, <1mW
- Spot Diameter at Distance M: 6mm @ 10m, 30mm @ 50m
- Single Measurement Time: 0.05~1s
- Protection Level: IP40
- Operating Temperature: -10~+60℃
- Storage Temperature: -20~+80℃
- Weight: about 60g
- Dimension (L × W × H): 48×42×18mm / 1.89×1.65×0.71”
Applications:
- UAV automatic landing
- Electronic scale
- Barn material level monitoring
Pinout:
| Pin Name | Description |
|---|---|
| VCC | Power Supply (3.3V - 5V) |
| GND | Ground |
| TX | UART Transmit (Data Output) |
| RX | UART Receive (Data Input) |
How does it work:
Visible Infrared Laser, Small FOV: The sensor emits an infrared laser pointing to an object, producing an IR laser dot on the object. It can measure objects sized 5x5 cm within 80m indoors, enabling long-distance detection of small objects with high accuracy and ease of use.
High Accuracy, Long Distance: Measuring range up to 80m indoors and 50m outdoors with a 0.05m blind zone.
