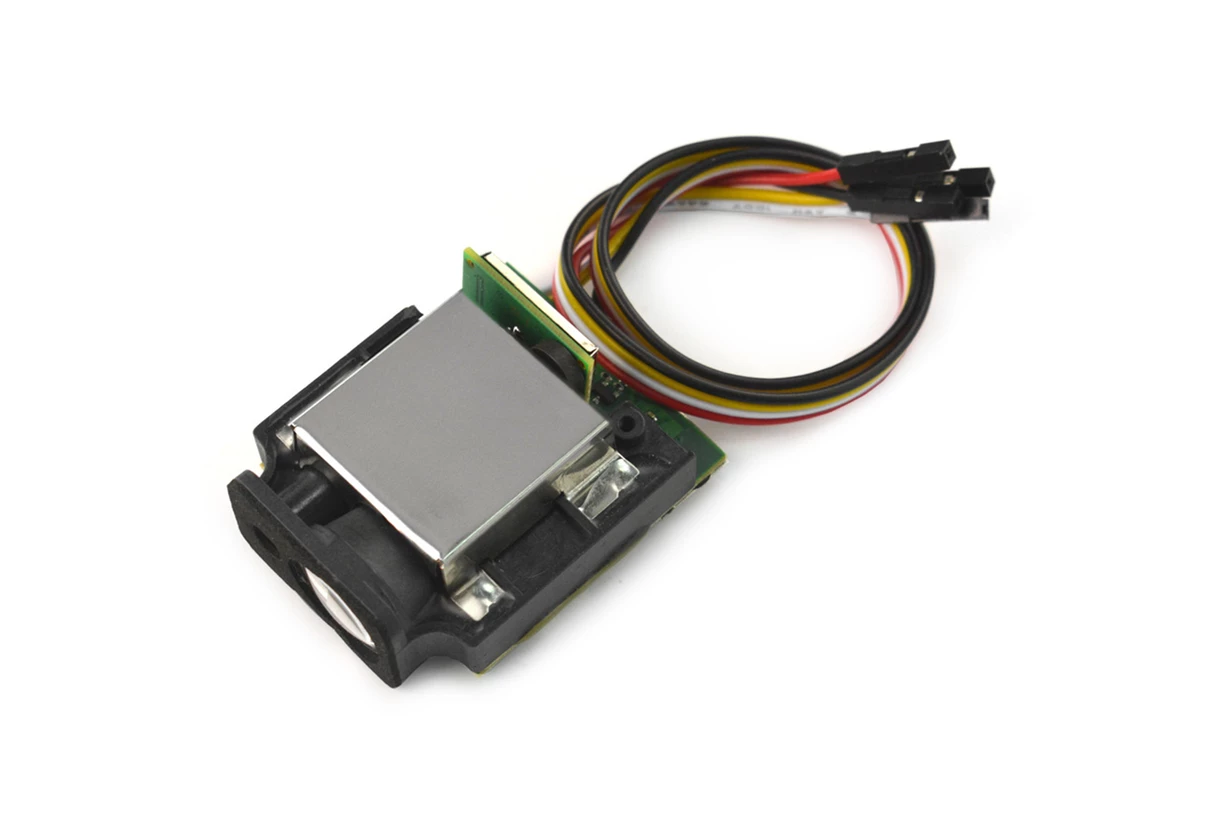

Features:
- High Accuracy: Ensures precise measurements with a standard deviation of ±1.0mm.
- Small Size: Compact design for easy integration into various projects.
- Long-Distance Measurement: Offers measuring ranges of 0.05 ~ 50m outdoors and 0.05 ~ 80m indoors.
Specifications:
- Power Supply: DC 3.3V~5V
- Measuring Range: 0.05 ~ 50m (outdoor), 0.05 ~ 80m (indoor)
- Accuracy (Standard Deviation): ±1.0mm
- Laser Type: 620~690nm
- Laser Class: Ⅱ, <1mW
- Spot Diameter at Distance M: 6mm @ 10m, 30mm @ 50m
- Single Measurement Time: 0.05~1s
- Protection Level: IP40
- Operating Temperature: -10~+60℃
- Storage Temperature: -20~+80℃
- Weight: about 60g
- Dimension (L × W × H): 48×42×18mm / 1.89×1.65×0.71”
Applications:
- UAV automatic landing
- Electronic scale
- Barn material level monitoring
Pinout:
| Pin Name | Description |
|---|---|
| VCC | Power Supply (3.3V - 5V) |
| GND | Ground |
| TX | UART Transmit (Data Output) |
| RX | UART Receive (Data Input) |
How does it work:
Visible Infrared Laser, Small FOV: The sensor emits an infrared laser pointing to an object, producing an IR laser dot on the object. It can measure objects sized 5x5 cm within 80m indoors, enabling long-distance detection of small objects with high accuracy and ease of use.
High Accuracy, Long Distance: Measuring range up to 80m indoors and 50m outdoors with a 0.05m blind zone.
