Raspberry Pi Pico Expansion Board (Gravity: DFRobot) - DFR0848

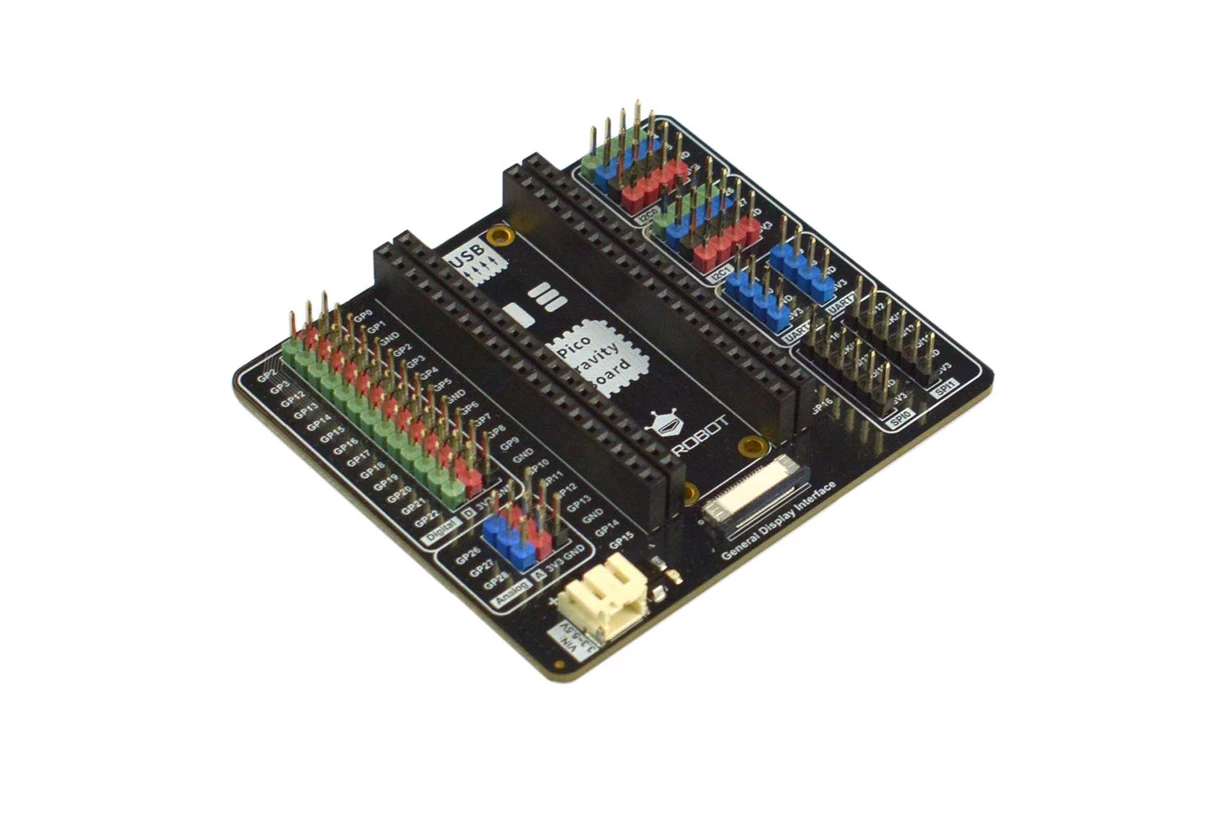

The Gravity Expansion Board for Raspberry Pi Pico is a versatile and user-friendly accessory to enhance your prototyping experience. It is compatible with a wide range of Gravity sensors and modules, requiring no soldering. The board provides extensive communication options, including multiple I2C, UART, SPI ports, analog and digital IOs, a 3.3V to 5.5V power connector, and a GDI port for displays.
Package Includes:
- 1 x Gravity: Expansion Board for Raspberry Pi Pico
- Raspberry Pi Pico is not included
Features:
- Plug and Play: Designed for immediate use without soldering, enabling quick and easy prototyping.
- Wide Compatibility: Supports various Gravity sensors and modules, offering broad application versatility.
- Comprehensive Communication Ports: Includes 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs, and 13 x digital IOs.
- Power Interface: PH2.0 power connector (3.3V to 5.5V), ideal for mobile and portable projects.
- GDI Port: Compatible with DFRobot GDI display series, simplifying display integration.
Specifications:
- Pin Headers: All pins brought out to female headers.
- Digital IO: 13 pins (GP2, GP3, GP12–GP22)
- Analog IO: 3 pins (GP26–GP28)
- UART: 2 ports
- I2C: 2 ports
- SPI: 2 ports
- Power Connector: PH2.0 interface, 3.3V - 5.5V
- Display Interface: GDI port
- Dimensions: 73.00 x 63.00 mm (28.74 x 24.8 inches)
Pinout:
| FPC Pins | Raspberry Pi Pico Pins | Description |
|---|---|---|
| VCC | 3V3 | Power supply 3.3V |
| BLK (PWM) | GP2 | PWM for backlight control |
| GND | GND | Ground connection |
| SCLK | GP18 | SPI clock signal |
| MOSI | GP19 | SPI master output |
| MISO | GP16 | SPI master input |
| DC | GP3 | Data/Command control |
| RES | GP17 | Reset signal |
| CS | GP7 | TFT chip-select |
| SDCS | GP10 | SD card chip-select |
| FCS | GP11 | Font library chip-select |
| TCS | GP5 | Touch controller chip-select |
| SCL | GP4 | I2C clock |
| SDA | GP20 | I2C data |
| INT | GP21 | Interrupt signal |
| BUSY-TE | GP22 | Tear-proof synchronization |
| X1 | GP0 | User-defined pin 1 |
| X2 | GP1 | User-defined pin 2 |
