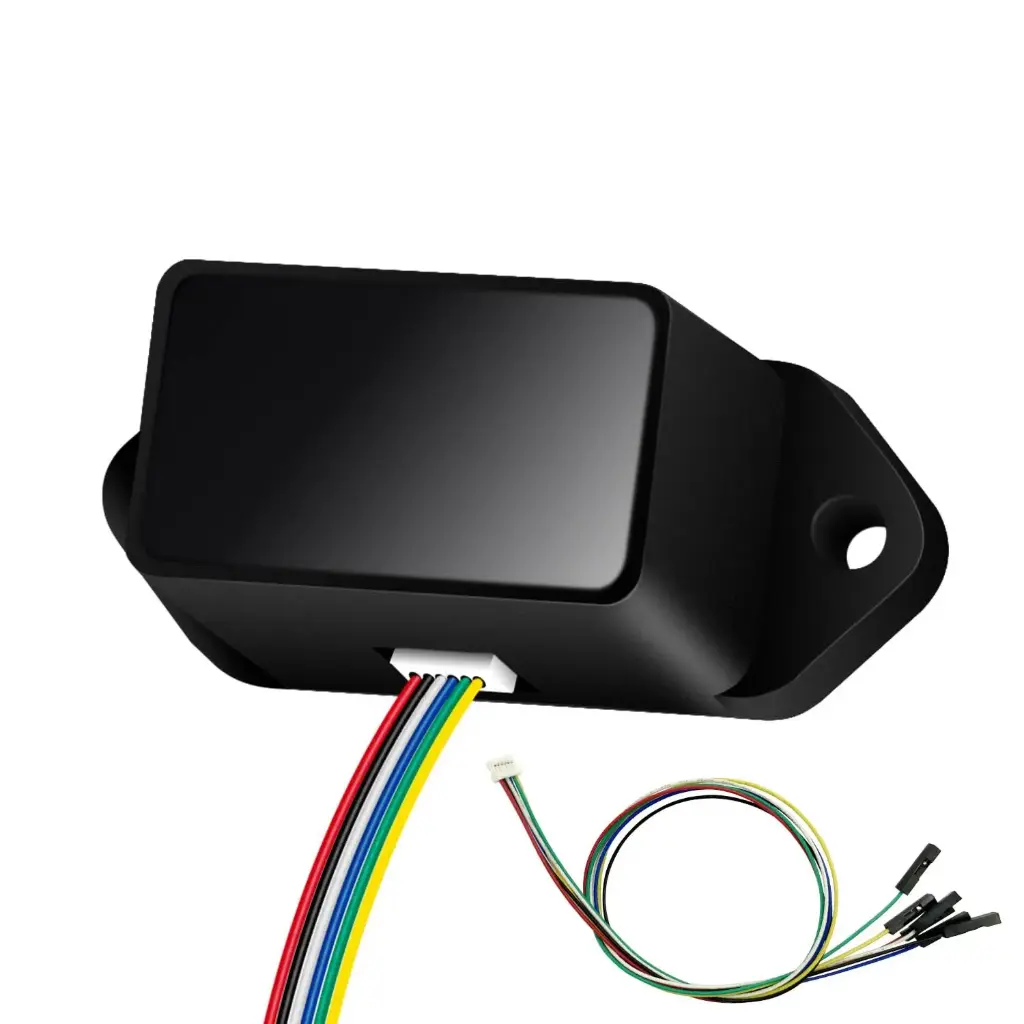

LiDAR XT-S1 ToF Single-Point Ranging Sensor (0.3-30m)
The XT-S1 is a compact single-point laser radar based on the Time-of-Flight (ToF) principle, weighing only 9 grams, making it easy to install and ideal for various embedded applications. With a power consumption of less than 0.5W, it's suitable for battery-powered or low-power systems. It operates reliably both indoors and outdoors—even under lighting conditions as bright as 100klux—while providing precise and stable distance measurements of up to 30 meters. It’s particularly useful in UAV altitude control, robotic obstacle avoidance, and smart home environmental sensing.
Note: Avoid looking directly into the laser radar during operation.
Package Includes:
- 1 x XT-S1 ToF Single-Point Ranging LiDAR Sensor
Features:
- Compact Size and Lightweight: Weighs only 9g for easy integration into space-constrained designs.
- Wide Measurement Range: Accurately measures from 0.3 to 30 meters in both indoor and outdoor environments.
- Low Power Consumption: Uses less than 0.5W, ideal for energy-conscious applications.
- High Brightness Compatibility: Functions reliably in environments with up to 100klux lighting.
- Precise Distance Measurements: Offers high sensitivity and stable readings for critical applications.
Specifications:
- Measurement Range: 0.3–30m (with 90% reflectivity)
- Accuracy:
- 30–250 cm: ±5 cm
- 250–600 cm: ±2%
- 600–3000 cm: ±3%
- Resolution: 1 cm
- Repeat Accuracy: ±2 cm
- Measurement Frequency: 1–100 Hz
- Operating Temperature: -10 to +60°C
- Operating Voltage: 5V
- Power Consumption: <0.5W
- FOV (Field of View): 2°
- Communication Interface: UART
- Baud Rate: 115200 bps
- Weight: 9g
- Dimensions: 34.5 x 21 x 20.5 mm
Applications:
- UAV obstacle avoidance and height control
- Robot navigation and collision prevention
- Smart home and IoT distance sensing
- Presence detection and ranging in industrial automation
